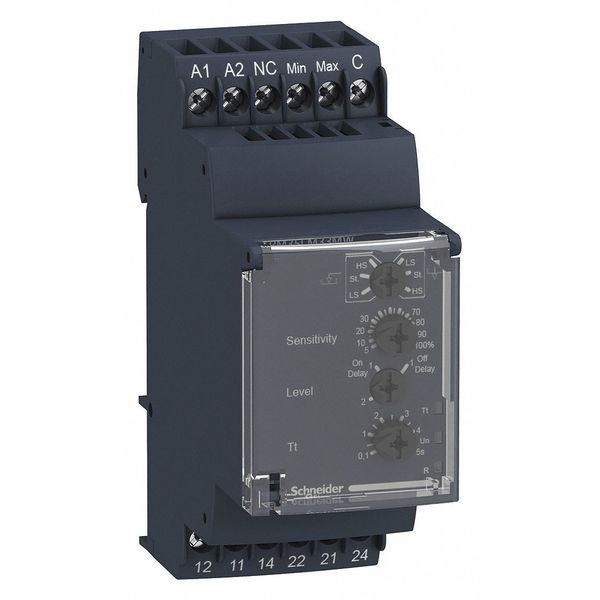

Speed Relay 250V 5Amp Rm35

SKU
Brand Schneider Electric
Categories
Description Speed Relay 250V 5Amp Rm35

Web Price

$292.49 / each

Qty

Product Details

Accessory Type Speed Relay 250V 5Amp Rm35

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Coil Volts 250VAC/DC

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contacts Material cadmium free

Control Circuit Voltage Limits 15 % + 10 % Un

Country of Origin (subject to change) Multiple

Dielectric Test Voltage 2 kV AC 50 Hz

Electrical Durability 100000 cycles

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2

Housing Material self-extinguishing plastic

Hysteresis 5-5 % threshold

Immunity To Microbreaks 50 ms

Impulse Duration >= 5 ms high state || >= 5 ms low state

Input Compatibility 3-wire sensor (E1) PNP or NPN, 12 V, 50 mA || NAMUR sensor (E2), 12 V, 1.5 kOhm || voltage input (E1), 0...30 V, 9.5 kOhm >= 4.5 V <= 1 V || volt-free contact input (E1), 12 V, 9.5 kOhm

Input Frequency 0.0017-20 Hz

Insulation Resistance > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

Marking CE : EMC 89/336/EEC || CE : 73/23/EEC

Maximum Power Consumption In Va 5 VA AC

Maximum Power Consumption In W 3 W DC

Maximum Supply Current For Sensors 40 mA < 24 V AC 25ÃÂ°C || 40 mA < 24 V DC 25ÃÂ°C || 50 mA 24...240 V AC || 50 mA 24...240 V DC

Maximum Switching Voltage 250 V AC/DC

Measurement Accuracy +/- 10 % of the full scale value

Measurement Error +/- 0.1 %/ÃÂ°C with temperature variation || < +/- 1 % over the whole range with voltage variation

Measurement Range 0.05...0.5 s || 0.5...5 min || 1...10 min || 1...10 s || 0.5...5 s || 0.1...1 s || 0.1...1 min

Mechanical Durability 30000000 cycles

Minimum Switching Current 10 mA 5 V DC

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 1 C/O

Overvoltage Category III IEC 60664-1

Package Quantity 1

Polarity reversible polarity on DC supply

Pollution Degree 3 IEC 60664-1

Product Certifications C-tick || GOST || UL || GL || CSA

Product Or Component Type speed control relay

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters overspeed || underspeed

Relay Name RM35S

Relay Type speed control relays

Repeat Accuracy +/- 0.5 % input and measurement circuit || +/- 0.5 % time delay

Reset Time 50 ms contact S2 in memory mode on time delay || 1 s supply Un in memory mode on time delay

Response Time 15 ms max (on crossing the threshold)

Run-Up Delay At Power-Up 0.05 s

Shock Resistance 15 gn 11 ms IEC 60255-21-1

Standards NF EN 60255-6 || IEC 60255-6

Status Led 1 LED Green power ON || 1 LED Yellow inhibit || 1 LED Yellow relay (R)

Supply Frequency 50/60 Hz +/- 10 %

Supply Voltage Limits 20.4-264 V AC/DC

Switching Capacity In Va 1250 VA

Threshold Setting 10...100 %

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Range 0.6...60 s adjustable on energisation 0...10 % of the full scale value)

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1

Width 35 mm

[Ui] Rated Insulation Voltage 250 V IEC 60664-1

[Us] Rated Supply Voltage 24...240 V AC/DC, 11.5...12.5 V
