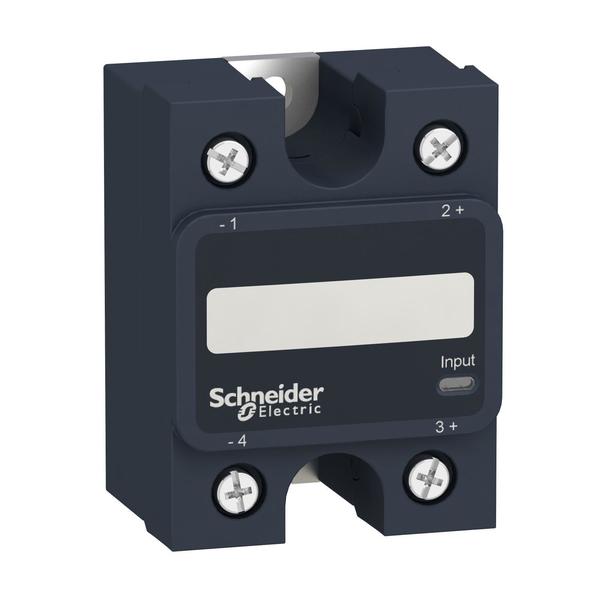

Ssr1p Panel Mnt, 75A-660VAC, ZC, 90-280VDC
Web Price
$99.44
/ each
Product Details
1200 V
-40-80ðC
-40-125ðC
8 pF for input/output
screw terminals 0.2 to 3.3 mmò, AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mmò, AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mmò, AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mmò, AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
0.5-0.5 (with maximum load)
Mexico
SSP1
4 kV AC for input/output || 4 kV AC for input or output to case
500 V/õs off-state at maximum voltage
5-10 mA
1000 MOhm at 500 V DC
IP20
75 A
0.15-75 A
LED, green input
UL || EAC || CSA || CE
1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC
4150 Aò.s for 8.33 ms at 60 Hz || 4555 Aò.s for 10 ms at 50 Hz
1 mA off-state
10 V AC turn-off
<1.15 V on-state
90 V AC turn-on
zero voltage switching
48 to 660 V
III
1
1 phase
2
EAC || CE || UL || CSA
solid state relay up to 75 A
type 1 - 50 A miniature circuit breaker (MCB) B || type 2 - 40 A miniature circuit breaker (MCB) B
thermal pad
30 ms (turn-off) || 25 ms (turn-on)
SCR output || zero voltage switching
UL 508 || CSA C22.2 No 14-13 || EN/IEC 60950-1 || EN/IEC 62314
1000 A 16.6 ms
0.48ðC-inò/W at 25 psi
0.3ðC/W junction to case
1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output
90 to 280 V AC
6 kV output to case || 6 kV input to output
