Home / Ssr1p Panel Mnt, 90A-660VAC, ZC, 4-32VDC, I

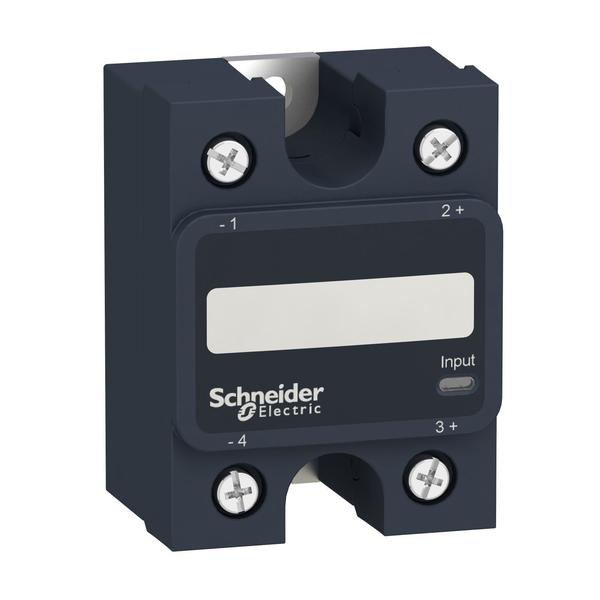

Ssr1p Panel Mnt, 90A-660VAC, ZC, 4-32VDC, I

Ssr1p Panel Mnt, 90A-660VAC, ZC, 4-32VDC, I

  • Schneider Electric
  • Ssr1p Panel Mnt,90A@660VAC,ZC,4-32VDC,I
Web Price
$124.99 / each
Qty

Product Details

1200 V
-40-80°C
-40-125°C
8 pF for input/output
screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) with cable end input || screw terminals 0.5 to 5.26 mm², AWG 20 to AWG 10) with cable end output || screw terminals 0.2 to 3.3 mm², AWG 24 to AWG 12) without cable end input || screw terminals 0.5 to 8.26 mm², AWG 20 to AWG 8) without cable end output || forked type tag connectors 9.2 x 4 mm input || ring lugs 9.2 x 4 mm input || forked type tag connectors 11.7 x 4.5 mm output || ring lugs 11.7 x 4.5 mm output
0.5-0.5 (with maximum load)
Mexico
SSP1
4 kV AC for input/output || 4 kV AC for input or output to case
500 V/µs off-state at maximum voltage
7-12 mA
1000 MOhm at 500 V DC
IP20
90 A
0.15-90 A
LED, green input
CSA || EAC || UL || CE
1.5 hp 120 V AC || 3 hp 240 V AC || 7.5 hp 480 V AC
5976 A².s for 8.33 ms at 60 Hz || 6560 A².s for 10 ms at 50 Hz
1 mA off-state
1 V DC turn-off
<1.15 V on-state
4 V DC turn-on
panel
zero voltage switching
48 to 660 V AC
III
1
1 phase
2
UL || CSA || EAC || CE
solid state relay up to 125 A
type 1 - 63 A miniature circuit breaker (MCB) B || type 2 - 50 A miniature circuit breaker (MCB) B
0.5 cycle (turn-on) || 0.5 cycle (turn-off)
zero voltage switching || SCR output
CSA C22.2 No 14-13 || UL 508 || EN/IEC 62314 || EN/IEC 60950-1
1200 A 16.6 ms
0.27°C/W junction to case
1.5 to 1.7 N.m for input || 2 to 2.2 N.m for output
4 to 32 V DC
6 kV output to case || 6 kV input to output
