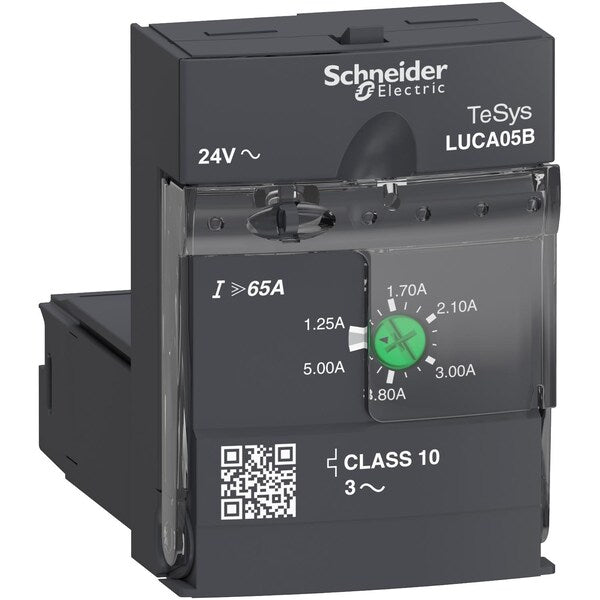

Stdcntrlunitcl103Ph 1255A 24Vac
Web Price
$172.49
/ each
Product Details
-13 to 158ðF (-25 to 70ðC)
-40 to 185ðF (-40 to 85ðC)
24V AC
LUCA
24 V AC
20 to 26.5 V AC 24 V in operation; 14.5 V AC 24 V drop-out
France
60 mm
Motor control; Motor protection
Manual reset; Protection against overload and short-circuit; Earth fault protection; Protection against phase failure and phase imbalance; Free of Halogen, Mercury & Pvc; Resistance to Fire, Electrostatic Discharge, Fast Transients, Radiated Fields, Shock & Vibration
1760ðF (960ðC) parts supporting live components IEC 60695-2-12; 1202ðF (650ðC) IEC 60695-2-12
Plug-in front face)
2 W control circuit with LUB12; 3 W control circuit with LUB32; 3 W control circuit with LUB38
66 mm
40 to 60 Hz
3 ms
10 V IEC 61000-4-6
70% / 500 ms IEC 61000-4-11
IP20 front panel and wired terminals IEC 60947-1; IP20 other faces IEC 60947-1; IP40 front panel outside connection zone IEC 60947-1
3-phase motor self-cooled
Manual reset; Protection against overload and short-circuit; Earth fault protection; Protection against phase failure and phase imbalance
1.5 kW 400 to 440 V AC 50/60 Hz; 2.2 kW 500 V AC 50/60 Hz; 3 kW 690 V AC 50/60 Hz
1 kV serial mode IEC 60947-6-2; 2 kV common mode IEC 60947-6-2
6561.68 ft (2000 m)
35 ms opening with LUB12 control circuit; 35 ms opening with LUB32 control circuit; 35 ms opening with LUB38 control circuit; 70 ms closing with LUB12 control circuit; 70 ms closing with LUB32 control circuit; 70 ms closing with LUB38 control circuit
690V AC
1.25 to 5 A
1
Yes
CE; UL; CSA; CCC; EAC; ASEFA; ATEX; Marine
Power base LUB12; Power base LUB32; Power base LUB38; Power base LUB120; Power base LUB320; Power base LUB380; Reversing contactor breaker LU2B12B; Reversing contactor breaker LU2B32B
TeSys Ultra
Standard control unit
Basic protection requirements for motor starters: overload and short-circuit
TH IEC 60068
6 kV IEC 60947-6-2
690 V IEC 60947-6-2; 600 V UL 60947-4-1; 600 V CSA C22.2 No 60947-4-1
690 V AC
8 kV 3 in open air IEC 61000-4-2; 8 kV 4 on contact IEC 61000-4-2
2 kV 3 serial link IEC 61000-4-4; 4 kV 4 all circuits except for serial link IEC 61000-4-4
9.14 V/m (10 V/m) 3 IEC 61000-4-3
400 V SELV between the control and auxiliary circuits IEC 60947-1; 400 V SELV between the control or auxiliary circuit and the main circuit IEC 60947-1
10 gn power poles open IEC 60068-2-27; 15 gn power poles closed IEC 60068-2-27
EN 60947-6-2; IEC 60947-6-2; UL 60947-4-1, with phase barrier; CSA C22.2 No 60947-4-1, with phase barrier; CE; CCC; EAC; ASEFA; ATEX; Marine
Class 10 40 to 60 Hz -13 to 158ðF (-25 to 70ðC) IEC 60947-6-2; Class 10 40 to 60 Hz -13 to 158ðF (-25 to 70ðC) UL 508
14.2 x Ir +/- 20%
140 mA 24 V AC I maximum while closing with LUB12; 220 mA 24 V AC I maximum while closing with LUB32; 220 mA 24 V AC I maximum while closing with LUB38; 70 mA 24 V AC I rms sealed with LUB12; 90 mA 24 V AC I rms sealed with LUB32; 90 mA 24 V AC I rms sealed with LUB38
AC-43; AC-41; AC-44
2 gn 5 to 300 Hz power poles open IEC 60068-2-6; 4 gn 5 to 300 Hz power poles closed IEC 60068-2-6
0.135 kg
45 mm
