Home / Ten Function Timer, 240V, 8A

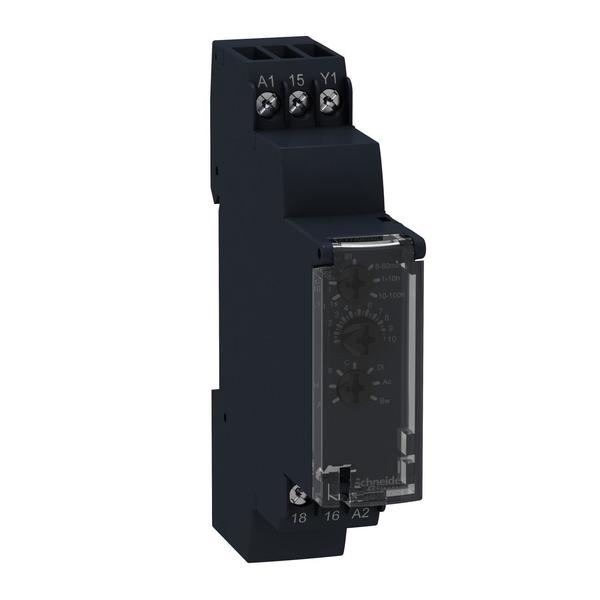

Ten Function Timer, 240V, 8A

Ten Function Timer, 240V, 8A

  • Schneider Electric
  • Ten Function Timer,240V,8A

    graingerSKU: , mscSKU: 69679934, zoro_no: G7123993, mongo_id: 65bbe94f22d7a989a99494c6

Web Price
$93.56 / each
Qty

Product Details

-20-60°C
-30-60°C
2000 VA
RE17
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
cadmium free
1 C/O
selector switch front panel
India
4 kV/3 IEC 60664-1
72 mm
RE17R
2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
relay
100000 cycles resistive 8 A 250 V AC
electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 1 kV capacitive connecting clip) level 3 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV direct) level 3 IEC 61000-4-4 || 1.2/50µs shock waves immunity test 1 kV differential mode) level 3 IEC 61000-4-5 || 1.2/50µs shock waves immunity test 2 kV common mode) level 3 IEC 61000-4-5 || conducted RF disturbances 10 V 0.15...80 MHz) level 3 IEC 61000-4-6 || voltage dips and interruptions immunity test 0 % 1 cycle) IEC 61000-4-11 || voltage dips and interruptions immunity test 70 % 25/30 cycles) IEC 61000-4-11 || conducted and radiated emissionsclass B EN 55022
multifunction
90 mm
self-extinguishing
20 ms
100 ms with load in parallel typical || 30 ms typical
10 V
100 MOhm 500 V DC IEC 60664-1
IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
LED indicator on steady: relay energised, no timing in progress || LED indicator 80 % ON and 20 % OFF flashing: timing in progress || LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
CE
100 ms
0.6 W 24 V DC
8 A AC/DC
250 V AC
10000000 cycles
10 mA 5 V DC
any position in relation to normal vertical mounting plane
35 mm DIN rail conforming to EN/IEC 60715
8A
1
10 Hz
1
0-32 VA 240 V AC
CSA || GL || cULus
multifunction relay
93-93 % without condensation IEC 60068-2-30
+/- 0.5 % IEC 61812-1
120 ms on de-energisation typical
+/- 10 % of full scale 25°C IEC 61812-1
15 gn 11 ms IEC 60068-2-27
2006/95/EC || 2004/108/EC || IEC 61812-1 || EN 61000-6-2 || EN 61000-6-3 || EN 61000-6-4 || EN 61000-6-1
50...60 Hz +/- 5 %
+/- 0.05 %/°C
0.6-1 N.m IEC 60947-1
6...60 min || 1...10 h || 0.1...1 s || 1...10 s || 1...10 min || 10...100 h || 6...60 s
A, Ac, At, B, Bw, C, D, Di, H, Ht, power on-delay || on-delay and off-delay || interval || off-delay || symmetrical flashing
20 m/s² 10-150 Hz)IEC 60068-2-6
+/- 0.2 %/V
0.85...1.1 Us
17.5 mm
5 kV 1.2/50µs
24...240 V AC 50/60 Hz || 24 V DC
