Home / Terminal Block, Screw Clamp, 12A, 600V

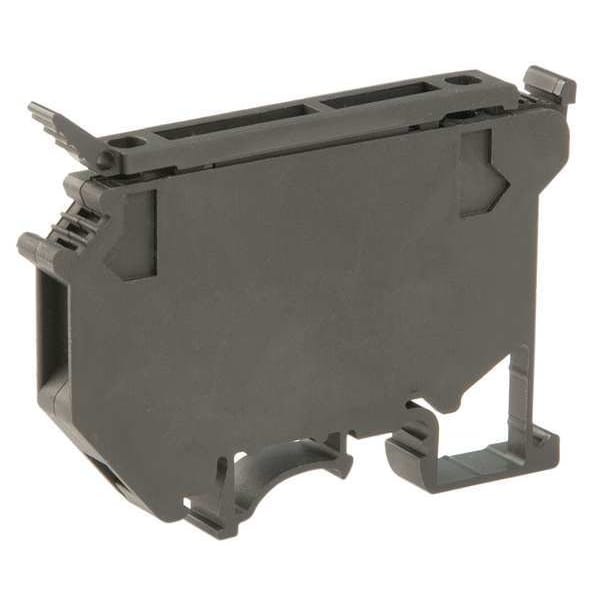

Terminal Block, Screw Clamp, 12A, 600V

Terminal Block, Screw Clamp, 12A, 600V

  • Schneider Electric
  • Fused Terminal Block, Circuit Protection Type Fuse, Connection Type Screw Clamp, Current 12 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Black, Maximum Voltage 600 V AC, Mounting Type DIN, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 2.85 in, Overall Length 2.85 in, Overall Width 0.32 in, Standards CSA Certified, CURus, EAC, Terminal Block Type Fused Disconnect

    graingerSKU: 49T416, mscSKU: , zoro_no: G6220645, mongo_id: 65bbe86b9a749db8227903be

Web Price
$20.74 / each
Qty

Product Details

-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
12 A
Polyamide 6/6
0.2-4 mm², flexible without cable end || 0.2-4 mm², solid
35mm
Fuse
Black
sideways
Screw Clamp
1 x screw terminal upstream || 1 x screw terminal downstream
Turkey
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
12 A
2.85 in
Accepts 5 x 20mm Glass or Ceramic Fuse
TRV
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
Not Applicable
V0 0.8 mm UL 94
35mm
Copper
Solid, Stranded
10 AWG
26 AWG
5 x 20 mm
2.2 in
Black
Polyamide 6/6
72.5 mm
6.3-6.3 A EN/IEC 60947-7-1 || 12-12 A cURus || 6.3-6.3 A CSA
polyamide 6/6 insulating case
10 AWG
266 Degrees F
600 V AC
26 AWG
-40 Degrees F
clip-on
DIN
4 mm²
2
0
1
2
2
2.85 in
2.85 in
0.32 in
1
37
cURus || CSA || EAC
Spacial enclosures
Linergy TR
terminal block
110...250 V light indicator
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
Accepts 5 x 20mm Glass or Ceramic Fuse
CSA Certified, CURus, EAC
5/16 in
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
-76 Degrees to 266 Degrees F
1
Fused Disconnect
Copper
110 to 250V AC/DC, LED, Lever-Type Fuse
M3
Screw
0.5-0.8 N.m
connection screwdriver || disconnection screwdriver
7 lb-in
V-0
600V AC
0.32 in
26 AWG - 10 AWG
8 mm
500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
