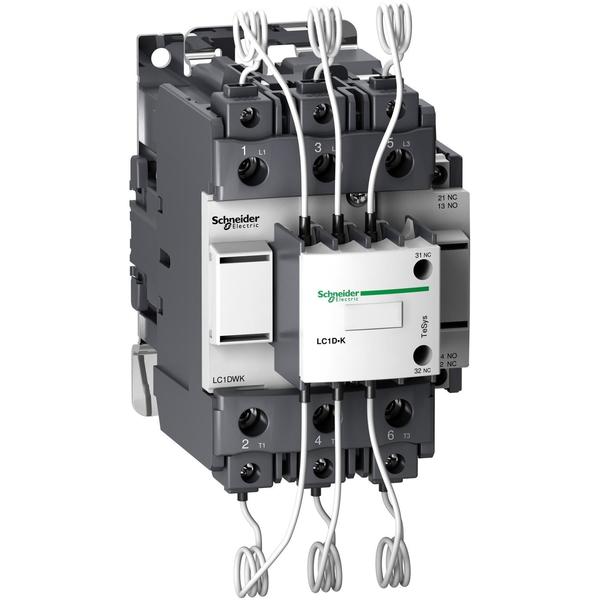

TeSys LC1D.K capacitor duty contactor-

SKU
Brand Schneider Electric
Categories
Description TeSys LC1D.K capacitor duty contactor -
graingerSKU: , mscSKU: , zoro_no: G800403688, mongo_id: 65bbe63d3aaddbd5a901814f

Web Price

$2,386.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -5-60ÃÂ°C

Ambient Air Temperature For Storage -60-80ÃÂ°C

Auxiliary Contact Composition 1 NO + 2 NC instantaneous

Auxiliary Contacts Type mechanically linked 1 NO + 2 NC IEC 60947-5-1

Connections - Terminals control circuit screw clamp terminals 1 1-4 mmÃÂ² solid || control circuit screw clamp terminals 2 1-4 mmÃÂ² solid || control circuit screw clamp terminals 1 1-4 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 2 1-4 mmÃÂ² flexible without cable end || control circuit screw clamp terminals 1 1-4 mmÃÂ² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mmÃÂ² flexible with cable end || power circuit connector 1 4-50 mmÃÂ² solid || power circuit connector 2 4-25 mmÃÂ² solid || power circuit connector 1 4-50 mmÃÂ² flexible without cable end || power circuit connector 2 4-25 mmÃÂ² flexible without cable end || power circuit connector 1 4-50 mmÃÂ² flexible with cable end || power circuit connector 2 4-16 mmÃÂ² flexible with cable end

Contactor Application power factor correction

Control Circuit Type AC 50/60 Hz

Country of Origin (subject to change) China

Depth 154 mm

Device Application control

Device Location In System inside delta interruption || line interruption

Device Short Name LC1DWK

Electrical Durability 300000 cycles 400 V || 200000 cycles 690 V

Height 180 mm

Ip Degree Of Protection IP20 front face IEC 60529

Maximum Operating Rate 240 cyc/h

Mounting Support DIN rail || plate

Operating Altitude 0 to 9842.52 ft (0 to 3000 m)

Package Quantity 1

Pole Contact Composition 3 NO

Poles Description 3P

Product Certifications IECEE CB Scheme || UL || CSA || UKCA

Product Name TeSys LC1D.K || TeSys Deca

Product Or Component Type capacitor duty contactor

Range TeSys

Reactive Power Rating 35 kvar 230-230 V AC 50 Hz 60ÃÂ°C || 63 kvar 400-400 V AC 50 Hz 60ÃÂ°C || 67 kvar 440-440 V AC 50 Hz 60ÃÂ°C || 104 kvar 690-690 V AC 50 Hz 60ÃÂ°C || 30 kvar 230-230 V AC 60 Hz 60ÃÂ°C || 60 kvar 460-460 V AC 60 Hz 60ÃÂ°C || 80 kvar 575-575 V AC 60 Hz 60ÃÂ°C

Standards EN/IEC 60947-1 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1

Tightening Torque power circuit 9 N.m connector || control circuit 1.7 N.m screw clamp terminals

Utilisation Category AC-6b

Width 85 mm

[Uc] Control Circuit Voltage 120 V AC 50/60 Hz

[Ue] Rated Operational Voltage power circuit 690 V AC 50/60 Hz
