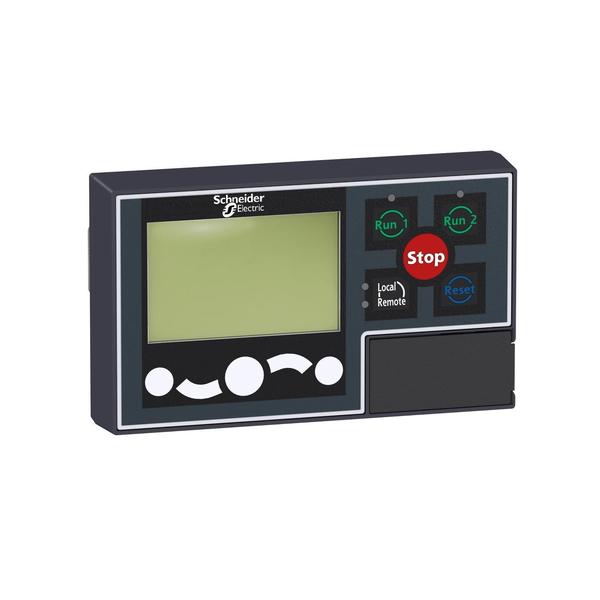

Tesys T Display Module

SKU
Brand Schneider Electric
Categories
Description Tesys T Display Module
graingerSKU: , mscSKU: , zoro_no: G0862620, mongo_id: 65bbe95522d7a989a994cd0f

Web Price

$353.74 / each

Qty

Product Details

Accessory Type Tesys T Display Module

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Control Button Type 10 push-button

Country of Origin (subject to change) China

Depth 50 mm

Device Connection connection to a LTM R controller, RJ45 rear || connection to a PC, RJ45 front

Device Short Name LTMCU

Display Type Backlit LCD

Electromagnetic Compatibility electrostatic discharge, level 3, 8 kV air, 4 kV contact, conforming to EN/IEC 61000-4-2 || radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3 || conducted RF disturbances, level 3, 10 V, conforming to EN/IEC 61000-4-6 || surges (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-5 || fast transient bursts (shielded access), level 3, 2 kV, conforming to EN/IEC 61000-4-4

Fire Resistance 650ÃÂ°C EN/IEC 60947-1

Flame Retardance V2 conforming to UL 94

Height 70 mm

Ip Degree Of Protection IP54 EN/IEC 60947-4-1 front) || IP20 EN/IEC 60947-4-1 rear)

Local Signalling 4 LEDs

Maximum Supply Current 140 mA

Mechanical Robustness shocks15 Gn for 11 ms EN/IEC 60068-2-27 || vibrations4 Gn, 5 to 300 Hz EN/IEC 60068-2-6

Mounting Mode flush-mounted

Package Quantity 1

Power Dissipation 1 W

Product Certifications C-tick || EAC || CSA || NOM || UL || CE

Product Or Component Type operator control unit
