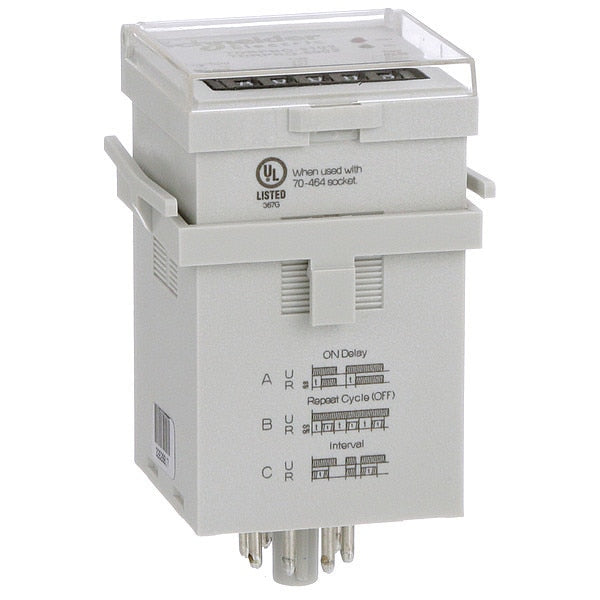

Time Delay Rlay, 12 to 240VAC/DC, 12A, DPDT

SKU
Brand Schneider Electric
Categories
Description Multi-Function Time Delay Relay, Adjustment Method Thumb Wheel, Base Shape Octal, Coil Voltage 240V AC, Contact Form DPDT, Contact Rating (AC) 12 A @ 12 to 240V, Contact Rating (DC) 12 A @ 12 to 240V, Current Rating 12 A, Number of Delay Functions 3, Delay Function Interval (Power On), On Delay (Power On), Repeat Cycle (Starting Off), Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP40, Input Voltage 12 to 240V AC/DC, Minimum Time Setting 0.1 sec
graingerSKU: , mscSKU: , zoro_no: G1181564, mongo_id: 65bbe7203aaddbd5a90776e8

Web Price

$156.24 / each

Qty

Product Details

Adjustment Method Thumb Wheel

Adjustment Method - Timer Thumbwheel

Ambient Air Temperature for Operation 14 to 131ÃÂ°F (-10 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Base Shape Octal

Base Type Octal

Base Type - Plug In Relay Octal

Body Depth 4.5 in

Body Depth - Relay 1.9 in

Body Height 1.9 in

Body Height - Relay 3.15 in

Body Width 1.89 in

Body Width - Relay 1.9 in

Brake Release Time 25 ms

Coil Rating 2.5VA

Coil Voltage 240V AC

Coil Volts 12 to 240V AC/DC

Compatible Manufacturer Part Number 16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1

Compatible with Manufacturer Model Number 16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1

Compatible with Manufacturer Model Number [NEW] 16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1

Compatible with Manufacturer Part Number 16-700DIN, 16-DCLIP-1, 16-TDRPROSC, 70-169-1, 70-750DL8-1

Contact Amp Rating (Resistive) 12A

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Alloy

Contact Rating (AC) 12 A @ 12 to 240V

Contact Rating (DC) 12 A @ 12 to 240V

Contacts Material Silver alloy contacts

Control Type Dial front

Country of Origin (subject to change) Czechia

Current Rating 12 A

Delay Function Interval (Power On), On Delay (Power On), Repeat Cycle (Starting Off)

Delay Function Group Cycle/Flasher, Interval

Depth 1.88 in (47.8 mm)

Dielectric Strength 2500 V between input and output

Electrical Connection Socket

Electrical Connection Type Pin

Electrical Durability 100000 cycles

Electrical Operating Durability 100,000

Environmental Protection Sealed

Flat Pin Width Not Applicable

Frequency 50/60 Hz

Function On Delay (Power On), Repeat Cycle (Starting Off), Interval (Power On)

Function - Timing Relay Interval (Power On), On Delay (Power On), Repeat Cycle (Starting Off)

Height 2.83 in (71.95 mm)

Hz - Electrical 50 Hz, 60 Hz

Hz_ 50/60

Input Voltage 12 to 240V AC/DC

IP Degree of Protection IP40 IEC 60529 enclosure)

IP Rating IP40

Item - Relay Multi-Function Timing Relay

Local Signalling 1 LED red, blinking timing in progress; 1 LED per input green

Max. Time Setting 9990 hr.

Max. Time Setting - Timer 416 day 6 hr

Maximum Operating Temperature 131 Degrees F

Maximum Time Setting 9,990 hr

Maximum Time Setting Range 1 day or more

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Min. Time Setting 0.1 sec.

Min. Time Setting - Timer 0.1 sec

Minimum Operating Temperature 14 Degrees F

Minimum Time Setting 0.1 sec

Motor Power HP 1 hp 240 V AC; 0.5 hp 120 V AC

Mounting plug In

Mounting - Relay Plug In

Mounting Style Through Panel

Mounting Support Socket

Number of Delay Functions 3

Number of Functions 3

Number of Pins 8

Number of Pins - Relay 8

Operating Functions 1, 2, 4, 5

Operating Time 25 ms

Operating Time Accuracy +/-0.1%

Overall Depth 4.73 in

Overall Height - Relay 3.38 in

Package Quantity 1

Pins 8

Power Consumption 2.5 VA

Power Consumption - Relay 2 W, 2.5 VA

Power consumption in VA 2.5 VA 12...240 V

Power consumption in W 2 W 12...240 V

Product Certifications UL

Product Range Legacy

Product Type Time delay relay

Rated Operational Current 12 A at 120 V AC (on resistive load); 12 A at 240 V AC (on resistive load); 12 A at 30 V DC (on resistive load)

Rated Supply Voltage 12...240 V AC/DC 50...60 Hz

Relay Mounting Style Panel Door

Repeat Accuracy +/- 0.1 % of the measuring range

Reset Method Time-Limit Reset

Reset Time 150 ms maximum

Sealing Sealed

Socket 1EGP3, 1EGP5, 5X852

Socket Code A

Socket Code Configurator Panel Door / Octal / 8

Standards IEC 61810-1, RoHS Compliant, UL Listed

Status Indicator LED

Time Delay Range 100 ms...9990 hr in steps of 0.1 s; 100 ms...9990 hr in steps of 1 second; 100 ms...9990 hr in steps of 0.1 min; 100 ms...9990 hr in steps of 1 min; 100 ms...9990 hr in steps of 0.1 h; 100 ms...9990 hr in steps of 1 h; 100 ms...9990 hr in steps of 10 h

Time Delay Type Multifunction

Time Range 0.1 sec - 9,990 hr

Timing Relay Functionality Interval Delay, On Delay, Repeat Cycle

Voltage Range 0.85...1.15 Un

Weight 4.23 oz

Width 1.89 in (48 mm)
