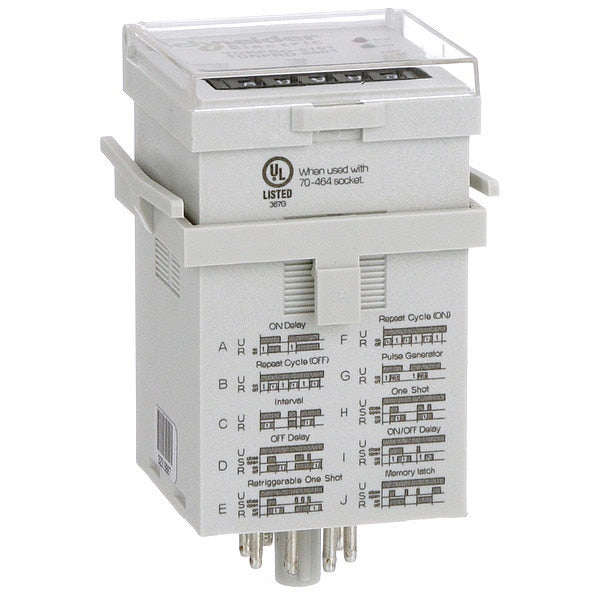

Time Delay Rlay, 12 to 240VAC/DC, 12A, SPDT

SKU
Brand Schneider Electric
Categories
Description Multi-Function Time Delay Relay, Adjustment Method Thumb Wheel, Base Shape Octal, Coil Voltage 240V AC, Contact Form SPDT, Contact Rating (AC) 12 A @ 12 to 240V, Contact Rating (DC) 12 A @ 12 to 240V, Current Rating 12 A, Number of Delay Functions 10, Delay Function Interval (Power On), Memory Hold (S Make), Off Delay (S Break), On Delay (Power On), On/Off Delay (S Make/Break), One Shot, Pulse Generator, Repeat Cycle (Starting Off), Repeat Cycle (Starting On), Retriggerable One Shot
graingerSKU: 6CXD0, mscSKU: , zoro_no: G0498671, mongo_id: 65bbe88b22d7a989a98fcc4a

Web Price

$172.49 / each

Qty

Product Details

Adjustment Method Thumb Wheel

Adjustment Method - Timer Thumbwheel

Ambient Air Temperature for Operation 14 to 131ÃÂ°F (-10 to 55ÃÂ°C)

Ambient Air Temperature for Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Base Shape Octal

Base Type Octal

Base Type - Plug In Relay Octal

Body Depth 4.5 in

Body Depth - Relay 1.9 in

Body Height 1.9 in

Body Height - Relay 3.15 in

Body Width 1.89 in

Body Width - Relay 1.9 in

Brake Release Time 25 ms

Coil Rating 2.5VA

Coil Voltage 240V AC

Coil Volts 12 to 240V AC/DC

Contact Amp Rating (Resistive) 12A

Contact Form SPDT

Contact Form - Relay SPDT

Contact Material Silver Alloy

Contact Rating (AC) 12 A @ 12 to 240V

Contact Rating (DC) 12 A @ 12 to 240V

Contacts Material Silver alloy contacts

Control Type Dial front

Country of Origin (subject to change) Czechia

Current Rating 12 A

Delay Function Interval (Power On), Memory Hold (S Make), Off Delay (S Break), On Delay (Power On), On/Off Delay (S Make/Break), One Shot, Pulse Generator, Repeat Cycle (Starting Off), Repeat Cycle (Starting On), Retriggerable One Shot

Delay Function Group Cycle/Flasher, Interval, One Shot

Depth 1.88 in (47.8 mm)

Dielectric Strength 2500 V between input and output

Electrical Connection Socket

Electrical Connection Type Pin

Electrical Durability 100000 cycles

Electrical Operating Durability 100,000

Environmental Protection Sealed

Flat Pin Width Not Applicable

Frequency 50/60 Hz

Function On Delay (Power On), Repeat Cycle (Starting Off), Interval (Power On), Off Delay (S Break), Retriggerable One Shot, Repeat Cycle (Starting On), Pulse Generator, One Shot, On/Off Delay (S Make/Break), Memory Hold (S Make)

Function - Timing Relay Interval (Power On), Memory Hold (S Make), Off Delay (S Break), Off/On Delay (S Make/Break), On Delay (Power On), One Shot, Pulse Generator, Repeat Cycle (Starting Off), Repeat Cycle (Starting On), Retriggerable One Shot

Height 2.83 in (71.95 mm)

Hz - Electrical 50 Hz, 60 Hz

Hz_ 50/60

Input Voltage 12 to 240V AC/DC

IP Degree of Protection IP40 IEC 60529 enclosure)

IP Rating IP40

Item - Relay Multi-Function Timing Relay

Local Signalling 1 LED red, blinking timing in progress; 1 LED per input green

Max. Time Setting 9990 hr.

Max. Time Setting - Timer 416 day 6 hr

Maximum Operating Temperature 131 Degrees F

Maximum Time Setting 9,990 hr

Maximum Time Setting Range 1 day or more

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Min. Time Setting 0.1 sec.

Min. Time Setting - Timer 0.1 sec

Minimum Operating Temperature 14 Degrees F

Minimum Time Setting 0.1 sec

Motor Power HP 1 hp 240 V AC; 0.5 hp 120 V AC

Mounting plug In

Mounting - Relay Plug In

Mounting Style Through Panel

Mounting Support Socket

Number of Delay Functions 10

Number of Functions 10

Number of Pins 8

Number of Pins - Relay 8

Operating Functions 1, 2, 4, 5

Operating Time 25 ms

Operating Time Accuracy +/-0.1%

Overall Depth 4.73 in

Overall Height - Relay 3.38 in

Package Quantity 1

Pins 8

Power Consumption 2.5 VA

Power Consumption - Relay 2 W, 2.5 VA

Power consumption in VA 2.5 VA 12...240 V

Power consumption in W 2 W 12...240 V

Product Certifications UL

Product Range Legacy

Product Type Time delay relay

Rated Operational Current 12 A at 120 V AC (on resistive load); 12 A at 240 V AC (on resistive load); 12 A at 30 V DC (on resistive load)

Rated Supply Voltage 12...240 V AC/DC 50...60 Hz

Relay Mounting Style Panel Door

Repeat Accuracy +/- 0.1 % of the measuring range

Reset Method Time-Limit Reset

Reset Time 150 ms maximum

Sealing Sealed

Socket 1EGP3, 1EGP5, 5X852

Socket Code A

Socket Code Configurator Panel Door / Octal / 8

Standards IEC 61810-1, RoHS Compliant, UL Listed

Status Indicator LED

Time Delay Range 100 ms...9990 hr in steps of 0.1 s; 100 ms...9990 hr in steps of 1 second; 100 ms...9990 hr in steps of 0.1 min; 100 ms...9990 hr in steps of 1 min; 100 ms...9990 hr in steps of 0.1 h; 100 ms...9990 hr in steps of 1 h; 100 ms...9990 hr in steps of 10 h

Time Delay Type Multifunction

Time Range 0.1 sec - 9,990 hr

Timing Relay Functionality Interval Delay, Off Delay, On Delay, One Shot, Other, Pulse Generator, Repeat Cycle

Voltage Range 0.85...1.15 Un

Weight 4.23 oz
