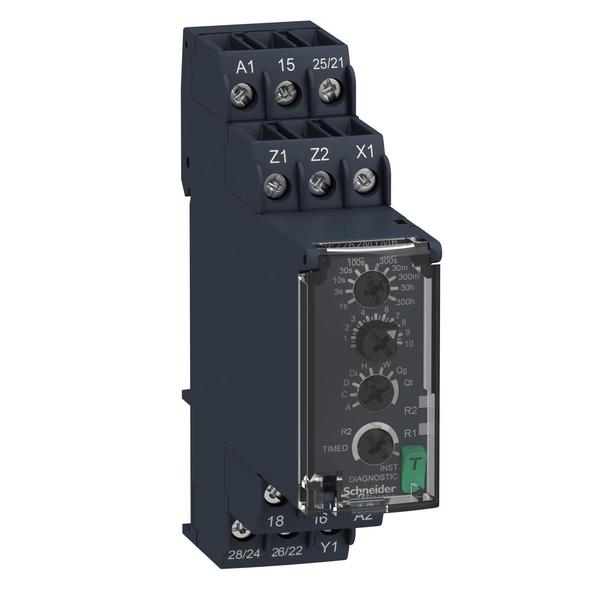

Timer, 24-240VAC/VDC, In 8A, Dpdt Out Mu

SKU
Brand Schneider Electric
Categories
Description Timer,24-240VAC/VDC,In 8A,Dpdt Out Mu
graingerSKU: 69ZM98, mscSKU: , zoro_no: G7123783, mongo_id: 65bbe7a03aaddbd5a90a75f8

Web Price

$106.81 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Connections - Terminals screw terminals, 1 x 0.5...1 x 3.3 mmÃÂ² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contacts Type And Composition 1 C/O timed or instantaneous contact, cadmium free || 2 C/O timed contact, cadmium free

Control Type rotary knob || diagnostic button || potentiometer external

Country of Origin (subject to change) Multiple

Creepage Distance 4 kV/3 IEC 60664-1

Device Short Name RE22

Dielectric Strength 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1

Discrete Output Type relay

Electrical Durability 100000 cycles, 8 A at 250 V, AC-1 || 100000 cycles, 2 A at 24 V, DC-1

Electromagnetic Compatibility fast transients immunity test 1 kV capacitive connecting clip)level 3 IEC 61000-4-4 || surge immunity test 1 kV differential mode)level 3 IEC 61000-4-5 || surge immunity test 2 kV common mode)level 3 IEC 61000-4-5 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/m 80 MHz...1 GHz)level 3 IEC 61000-4-3 || conducted RF disturbances 10 V 0.15...80 MHz)level 3 IEC 61000-4-6 || fast transient bursts 2 kV direct contact)level 3 IEC 61000-4-4 || immunity to microbreaks and voltage drops 30 % 500 ms) IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 % 20 ms) IEC 61000-4-11

Function Available A- Power on-delay relay-2 C/O || At- Power on-delay relay w/ pause/summation (X1)-2 C/O || Aw- Power on-delay relay w/ retrigger/restart-2 C/O || C- Off-delay relay w/ control signal-2 C/O || Ct- Off-delay relay w/ control signal and pause/summation-2 C/O || D- Symmetrical flashing relay (starting pulse-off)-2 C/O || Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (X1)-2 C/O || Dw- Symmetrical flashing relay (starting pulse-off) w/ retrigger/restart-2 C/O || Di- Symmetrical flashing relay (starting pulse-on)-2 C/O || Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (X1)-2 C/O || Diw- Symmetrical flashing relay (starting pulse-on) w/ retrigger/restart-2 C/O || H- Interval relay-2 C/O || Ht- Interval relay w/ pause/summation (X1)-2 C/O || Hw- Interval relay w/ retrigger/restart-2 C/O || Qg- Star-delta relay (2 CO outputs w/ same common)-2 C/O || Qgt- Star-delta relay (2 CO outputs w/ same common) w/ pause/summation-2 C/O || Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O || Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (X1)-2 C/O || W- Interval relay w/ control signal off-2 C/O || Wt- Interval relay w/ control signal off and pause/summation-2 C/O

Housing Material self-extinguishing

Immunity To Microbreaks 10 ms

Input Voltage <= 2.4 V

Insulation Resistance 100 MOhm 500 V DC IEC 60664-1

Ip Degree Of Protection housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529

Maximum Delay Response 100 ms

Maximum Switching Current 8A

Maximum Switching Voltage 250 V AC

Mechanical Durability 10000000 cycles

Minimum Pulse Duration 100 ms with load in parallel || 30 ms

Minimum Switching Current 10 mA 5 V DC

Mounting Position any position

Mounting Support 35 mm DIN rail conforming to EN/IEC 60715

Nominal Output Current 8A

Overvoltage Category III IEC 60664-1

Package Quantity 1

Pollution Degree 3 IEC 60664-1

Power Consumption In Va 3-3 VA 240 V AC

Power Consumption In W 1.5 W 240 V DC

Product Certifications RCM || CE || EAC || CSA || CCC || UL || GL

Product Or Component Type multifunction relay

Relative Humidity 95-95 % 25-55ÃÂ°C

Repeat Accuracy +/- 0.5 % IEC 61812-1

Reset Time 120 ms on de-energisation

Setting Accuracy Of Time Delay +/- 10 % of full scale 25ÃÂ°C IEC 61812-1

Shock Resistance 15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27

Standards UL 508 || IEC 61812-1

Status Led Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED fast flashing)timing in progress and output relay de-energised || Yellow LED slow flashing)timing in progress and output relay energised

Supply Frequency 50...60 Hz +/- 5 %

Switching Capacity In Va 2000 VA

Temperature Drift +/- 0.05 %/ÃÂ°C

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Range 3...30 min || 30...300 min || 0.3...3 s || 3...30 h || 10...100 s || 1...10 s || 0.05...1 s || 30...300 s || 30...300 h || 3...30 s

Time Delay Type power on-delay || off-delay || symmetrical flashing || interval || star-delta

Vibration Resistance 20 m/sÃÂ² 10-150 Hz)IEC 60068-2-6

Voltage Drift +/- 0.2 %/V

Voltage Range 0.85...1.1 Us

Width 22.5 mm

[Uimp] Rated Impulse Withstand Voltage 5 kV 1.2-50ÃÂµs IEC 60664-1

[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz
