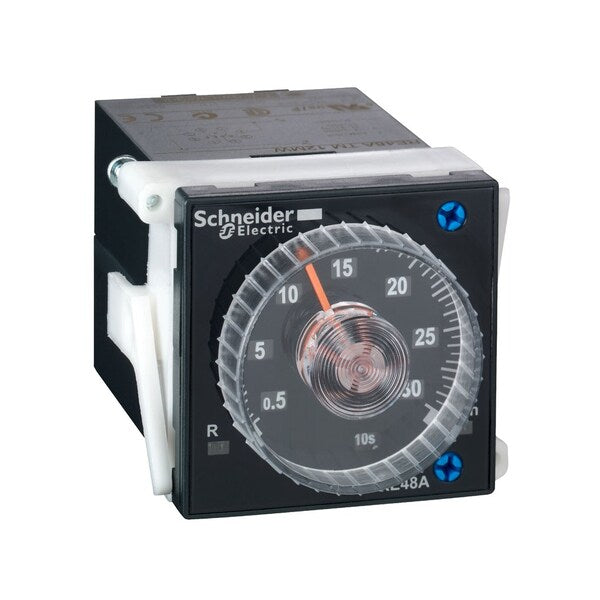

Timer, 250VAC, 5A, Re48 +options

SKU
Brand Schneider Electric
Categories
Description Timer,250VAC,5A,Re48 +options
graingerSKU: , mscSKU: , zoro_no: G7122103, mongo_id: 65bbe86b22d7a989a98f359e

Web Price

$114.94 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Breaking Capacity 1250 VA

Component Name RE48

Contacts Type And Composition 2 C/O timed contacts, AgNi (cadmium free)

Control Type selector switch front panel

Country of Origin (subject to change) India

Dielectric Strength 1 kV 1 mA/1 minute IEC 61812-1

Discrete Output Type relay

Disturbance Radiated/Conducted class B 0.15...30 MHz EN 55022 (EN 55011 group 1)

Electrical Connection plug-in sub-base 8

Electrical Durability 100000 cycles

Housing Material self-extinguishing

Humidity Drift +/- 0.05 %/%RH of the maximum setting value IEC 61812-1

Immunity To Microbreaks 10 ms

Immunity To Radioelectric Fields 10 V 0.15...80 MHz)EN/IEC 61000-4-6 level 3

Immunity To Voltage Dips 30 % / 10 ms EN/IEC 61000-4-11 || 60 % / 100 ms EN/IEC 61000-4-11 || 95 % / 5 s EN/IEC 61000-4-11

Ip Degree Of Protection IP40 IEC 60529 housing) || IP50 IEC 60529 front face)

Line Rated Current 5A

Local Signalling for output relay state 1 LED (yellow) || for flashing: relay energised timing in progress LED indicator (green) || for on steady: relay energised, no timing in progress LED indicator (green)

Marking CE

Maximum Switching Current 5A

Maximum Switching Voltage 250 V AC/DC

Mechanical Durability 30000000 cycles

Minimum Pulse Duration 20 ms

Minimum Switching Current 100 mA

Mounting Support panel mounted: system supplied with the product || base mounted: socket

On-Load Factor 1

Output Voltage 240 V 5 A AC-12 || 30 V 2 A DC-13 || 240 V 1.5 A AC-15

Package Quantity 1

Pick Up Duration 55 ms

Power Consumption In Va 1.1 VA 24 V || 4.8 VA 240 V

Power Consumption In W 0.5 W 24 V || 1.7 W 240 V

Product Certifications UL || cULus || C-tick || CSA

Product Front Plate Size 48 x 48 mm

Product Or Component Type single function relay

Protection Against Electric Shocks 4 kV class III IEC 60664-1 || 4 kV class III IEC 61812-1

Relative Humidity 93-93 % without condensation IEC 60068-2-3

Repeat Accuracy +/- 0.2 % of the maximum setting value IEC 61812-1

Reset Time 25 ms on de-energisation

Resistance To Electromagnetic Fields 10 V/m 26 MHz to 1 GHz IEC 61000-4-3 level 3

Resistance To Electrostatic Discharge 6 kV in contact EN/IEC 61000-4-2 level 3 || 8 kV in air EN/IEC 61000-4-2 level 3

Resistance To Fast Transients 2 kV EN/IEC 61000-4-4 level 4 capacitive connecting clip) || 4 kV EN/IEC 61000-4-4 level 4 direct)

Setting Accuracy Of Time Delay +/- 5 % of full scale 25ÃÂ°C IEC 61812-1

Standards 73/23/EEC || 93/68/EEC || EN 50082-1/2 || 89/336/EEC || EN 50081-1/2 || IEC 61812-1 || IEC 60669-2-3

Surge Withstand 1 kV differential mode IEC 61000-4-5 level 3 || 2 kV common mode IEC 61000-4-5 level 3

Temperature Drift +/- 0.02 %/ÃÂ°C of the maximum setting value IEC 61812-1

Time Delay Range 5...300 h || 2...120 min || 0.5...30 h || 0.2...12 h || 0.2...12 min || 0.2...12 s || 0.5...30 min || 2...120 h || 2...120 s || 0.02...1.2 s || 0.5...30 s || 5...300 s || 0.05...3 s || 5...300 min

Time Delay Type power on-delay

Vibration Resistance 0.35 mm 10-55 Hz)IEC 60068-2-6

Voltage Drift +/- 0.2 %/V of the maximum setting value 48...240 V || +/- 1 %/V of the maximum setting value 24...48 V

Voltage Range 0.85...1.1 Us AC || 0.9...1.1 Us DC

[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz
