Home / Timer24-240VAC/VDC, In8A, Dpdt Outde-en

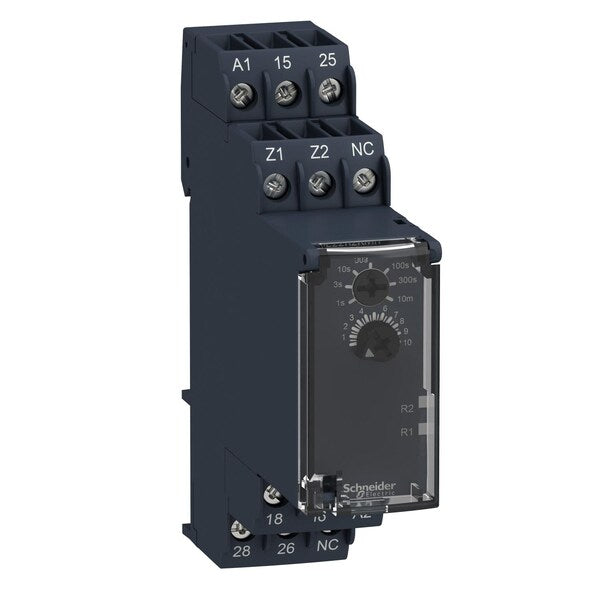

Timer24-240VAC/VDC, In8A, Dpdt Outde-en

Timer24-240VAC/VDC, In8A, Dpdt Outde-en

  • Schneider Electric
  • Timer24-240VAC/VDC,In8A,Dpdt Outde-en

    graingerSKU: , mscSKU: , zoro_no: G7122471, mongo_id: 65bbe89622d7a989a9901967

Web Price
$137.49 / each
Qty

Product Details

-20-60°C
-40-70°C
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
2 C/O timed contact, cadmium free
rotary knob || potentiometer external
India
4 kV/3 IEC 60664-1
RE22
2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
relay
100000 cycles, 2 A at 24 V, DC-1 || 100000 cycles, 5 A at 250 V, AC-1
fast transients immunity test 1 kV capacitive connecting clip)level 3 IEC 61000-4-4 || surge immunity test 1 kV differential mode)level 3 IEC 61000-4-5 || surge immunity test 2 kV common mode)level 3 IEC 61000-4-5 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/m 80 MHz...1 GHz)level 3 IEC 61000-4-3 || conducted RF disturbances 10 V 0.15...80 MHz)level 3 IEC 61000-4-6 || fast transient bursts 2 kV direct contact)level 3 IEC 61000-4-4 || immunity to microbreaks and voltage drops 30 % 500 ms) IEC 61000-4-11 || immunity to microbreaks and voltage drops 100 % 20 ms) IEC 61000-4-11
self-extinguishing
10 ms
<= 2.4 V
100 MOhm 500 V DC IEC 60664-1
housing IP40 IEC 60529 || terminals IP20 IEC 60529 || front panel IP50 IEC 60529
200 ms
5A
250 V AC
10000000 cycles
10 mA 5 V DC
any position
35 mm DIN rail conforming to EN/IEC 60715
5A
III IEC 60664-1
1
3 IEC 60664-1
3-3 VA 240 V AC
2 W 240 V DC
EAC || UL || RCM || GL || CCC || CSA || CE
single function relay
95-95 % 25-55°C
+/- 0.5 % IEC 61812-1
100 ms on de-energisation
+/- 10 % of full scale 25°C IEC 61812-1
15 gn not operating 11 ms IEC 60068-2-27 || 5 gn in operation 11 ms IEC 60068-2-27
IEC 61812-1 || UL 508
Green LED backlight steady)dial pointer indication || Yellow LED steady)output relay energised || Yellow LED steady)power ON
50...60 Hz +/- 5 %
1250 VA
+/- 0.05 %/°C
0.6-1 N.m IEC 60947-1
10...100 s || 0.05...1 s || 30...300 s || 3...30 s || 1...10 min || 1...10 s || 0.3...3 s
delay on de-energization
20 m/s² 10-150 Hz)IEC 60068-2-6
+/- 0.2 %/V
0.85...1.1 Us
22.5 mm
5 kV 1.2-50µs IEC 60664-1
24...240 V AC/DC 50/60 Hz
