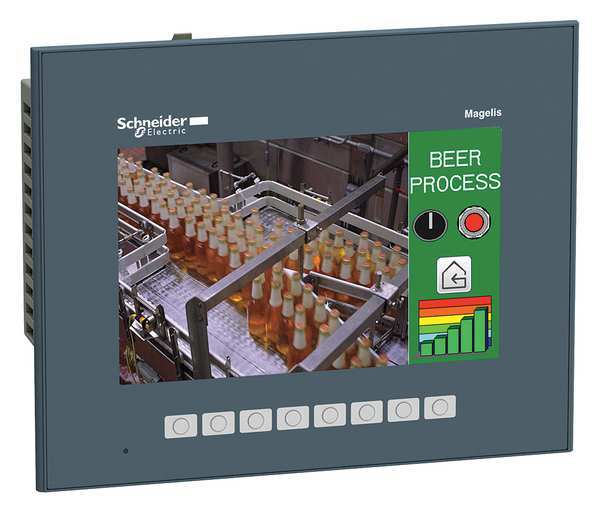

Touch Panel, 7in. TFT Color, 96 MB Flash

SKU
Brand Schneider Electric
Categories
Description Touch Panel, TFT Color, Voltage 24V DC, Display 800 x 480 Pixels, 96Mb Flash Memory, Port Type USB 2.0, USB-Mini B, Width 7.3 in, Height 5.9 in, Depth 9.3 in, For Use With Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens, Display of Text Messages, Graphic Objects and Synoptic Views, Control and Con¿guration of Data
graingerSKU: 20XE59, mscSKU: , zoro_no: G6648607, mongo_id: 65bbe7fe22d7a989a98cf0f4

Web Price

$3,587.49 / each

Qty

Product Details

Ambient Air Temperature For Operation 0-50ÃÂ°C

Ambient Air Temperature For Storage -20-60ÃÂ°C

Backlight Lifespan 50000 hours white 25ÃÂ°C

Battery Type lithium internal RAM 100 days 5 day(s) 10 year(s)

Brightness 16 levels by touch panel || 16 levels by software

Character Font Taiwanese (traditional Chinese) || ASCII || Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Korean

Control Button Type 8 operation defined using Vijeo Designer push-button key F1...F8

Country of Origin (subject to change) Indonesia

Data Backed Up 128 kB internal RAM SRAM)

Data Storage Equipment SD card, <= 32 GB || SDHC card, <= 32 GB

Depth 9.3 in

Display 800 x 480 Pixels

Display Colour 65536 colours

Display Resolution 800 x 480 pixels WVGA

Display Size 7 inch

Display Type TFT Color

Downloadable Protocols Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automation Allen-Bradley third party protocols || Siemens Simatic third party protocols || Schneider Electric Modicon Modbus TCP

Enclosure Material PPT

Fixing Mode by 4 screw clamps

For Use With Allen-Bradley, Omron and Other Automation, PLC and Drives, Schneider Electric Modicon, Siemens

Front Material PPT

Height 5.9 in

Inrush Current 30 A

Integrated Connection Type COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 type mini B

Ip Degree Of Protection IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)

Local Signalling status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is being transmitted || COM2 LED yellow, faded no data transmission || SD card LED green, steady card is inserted || SD card LED green, faded card is not inserted or is not being accessed

Maximum Power Consumption In W 8 W when power is not supplied to external devices || 5 W when backlight is OFF || 5.5 W when backlight is dimmed || 12 W

Memory 96Mb Flash

Memory Description flash EPROM, 96 MB

Nema Degree Of Protection NEMA 4X front panel (indoor use)

Operating Altitude < 6561.68 ft (2000 m)

Operating System Harmony

Package Quantity 1

Port Type USB 2.0, USB-Mini B

Product Certifications CE || C-tick || KCC || cULus || UKCA || UKEX

Product Mounting flush mounting

Product Or Component Type advanced touchscreen panel

Relative Humidity 10-90 % without condensation

Resistance To Electrostatic Discharge 6 kV contact discharge IEC 61000-4-2 level 3

Shock Resistance 147 m/sÃÂ² 3 chocks in each direction X, Y and Z EN/IEC 61131-2

Software Designation Vijeo Designer configuration software >= V6.1

Special Features Display of Text Messages, Graphic Objects and Synoptic Views, Control and ConÃÂ¿guration of Data

Standards UL 508 || IEC 61000-6-2 || EN 61131-2

Supply external source

Supply Voltage Limits 19.2-28.8 V

Terminal Type touchscreen display

Touch Panel resistive film, 1000000 cycles

Touch Sensitive Zone 1024 x 1024

Type Of Cooling natural convection

Vibration Resistance 3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2

Voltage 24V DC

Width 7.3 in

[Us] Rated Supply Voltage 24 V DC
