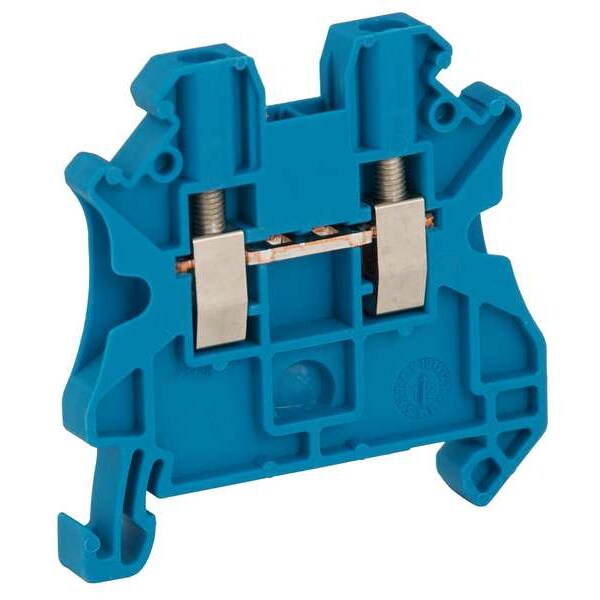

Trmnl Blk, Screw Clmp Tech Pssthrgh

SKU
Brand Schneider Electric
Categories
Description Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 20 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 12 AWG, Housing Color Blue, Maximum Voltage 1,000 V AC, Mounting Type DIN, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 1.88 in, Overall Length 1.88 in, Overall Width 0.2 in, Standards ATEX, CSA, DNV, GL, IECEx, LR, UL, VDE, Terminal Block Type Pass-Through
graingerSKU: 23NY08, mscSKU: 69680205, zoro_no: G5235386, mongo_id: 65bbe8479a749db822781dd9

Web Price

$2.24 / each

Product Details

2-Pole Jumper Compatibility 23NY19

2-Pole Jumpers 23NY19

6-Pole Jumpers Mfr. No. NSYTRAL25

Accessory / Separate Part Category connection accessory

Ambient Air Temperature For Operation -40-130ÃÂ°C IEC 60216-1 || -40-130ÃÂ°C VDE 0304-T21

Amps 20 A

Block Material Polyamide 6/6

Cable Cross Section 0.14-4 mmÃÂ², solid with cable end || 0.2-2.5 mmÃÂ², flexible with cable end || 0.14-4 mmÃÂ², solid without cable end || 0.14-4 mmÃÂ², flexible without cable end

Channel Size 35mm

Circuit Protection Type None

Color Blue

Compatible Manufacturer Model Number NSYSDR200BD, NSYTRAAB35, NSYTRAABV35, NSYTRAATM1, NSYTRAATP1, NSYTRAC22, NSYTRAC22BL, NSYTRACS2, NSYTRAFT, NSYTRAL210, NSYTRAL210BL, NSYTRAL210GR, NSYTRAL22, NSYTRAL220, NSYTRAL23, NSYTRAL24, NSYTRAL25, NSYTRAP22, NSYTRAP22BL, NSYTRASB4

Connection Position sideways

Connection Type Screw Clamp

Connections - Terminals 1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)

Country of Origin (subject to change) Germany

Creep Resistance 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Current 20 A

Depth 1.88 in

Device Short Name TRV

Dielectric Constant 3.7 at 1 MHz

Dielectric Loss 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Dielectric Strength 1000 V IEC 60243-1

End Barrier Mfr. No. NSYTRAP22BL

Flame Retardance V0 0.8 mm UL 94

For Channel Rail Size 35mm

For Conductor Material Copper

For Conductor Type Solid, Stranded

For Maximum Wire Size 12 AWG

For Minimum Wire Size 26 AWG

Height 1.87 in

Housing Color Blue

Housing Material Polyamide 6/6

Length 47.7 mm

Line Rated Current 24-24 A EN/IEC 60947-7-1 || 22-22 A ATEX Exe II Ex II 2 GD || 20-20 A cURus || 20-20 A CSA

Material polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring

Max. Wire Size 12 AWG

Maximum Operating Temperature 266 Degrees F

Maximum Voltage 1,000 V AC

Min. Wire Size 26 AWG

Minimum Operating Temperature -40 Degrees F

Mounting Mode clip-on

Mounting Type DIN

Nominal Cross Section 2.5 mmÃÂ²

Number of Connections 2

Number Of Measurement Input 2

Number of Poles 1

Number Of Terminals 2

Number of Tiers 2

Overall Depth 1.88 in

Overall Length 1.88 in

Overall Width 0.2 in

Package Quantity 1

Pieces per Foot 57

Product Certifications IEC-Ex || DNV || GL || ATEX || VDE || CSA || cURus || EAC || LR

Product Compatibility Spacial enclosures

Product Name Linergy TR

Product Or Component Type terminal block

Range Linergy

Range Compatibility Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys || Thalassa Thalassa TBP || Thalassa Thalassa TBS

Resistivity 10000 MÃ¢ÂÂ¦.m IEC 60093 || 10000 MÃ¢ÂÂ¦.m VDE 0303-T30

RoHS Compliant Yes

Standards ATEX, CSA, DNV, GL, IECEx, LR, UL, VDE

Strip Length 11/32 in

Surface Resistance 1000 GÃ¢ÂÂ¦ IEC 60093 || 1000 GÃ¢ÂÂ¦ VDE 0303-T30

Temp. Range -76 Degrees to 266 Degrees F

Terminal Block Level 1

Terminal Block Type Pass-Through

Terminal Material Copper

Terminal Type Pass-Through

Termination Screw Size M3

Termination Style Screw
