Home / Trmnl Blk, Screw Clmp Tech Pssthrgh

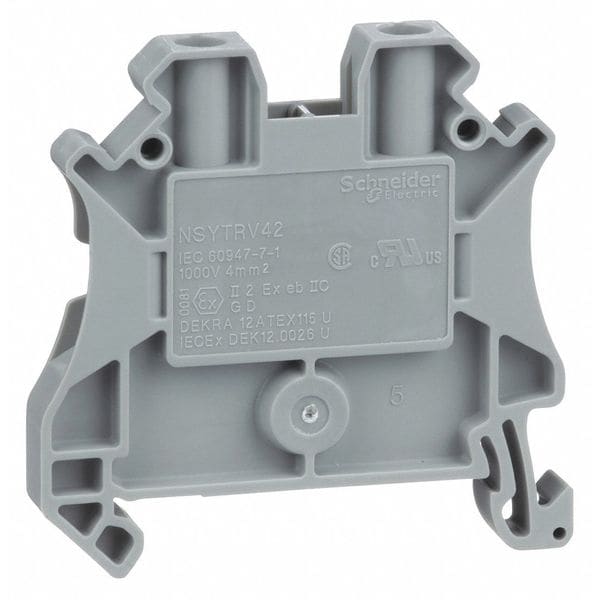

Trmnl Blk, Screw Clmp Tech Pssthrgh

Trmnl Blk, Screw Clmp Tech Pssthrgh

  • Schneider Electric
  • Terminal Block, Circuit Protection Type None, Connection Type Screw Clamp, Current 30 A, For Minimum Wire Size 26 AWG, For Maximum Wire Size 10 AWG, Housing Color Gray, Maximum Voltage 1,000 V AC, Mounting Type DIN, Number of Poles 1, Number of Tiers 2, For Conductor Material Copper, For Conductor Type Solid, Stranded, Overall Depth 1.88 in, Overall Length 1.88 in, Overall Width 0.24 in, Standards ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE, Terminal Block Type Pass-Through

    graingerSKU: 23NY09, mscSKU: 33300195, zoro_no: G5235422, mongo_id: 65bbe89622d7a989a990268b

Web Price
$2.11 / each
Qty

Product Details

23NY20
23NY20
Mfr. No. NSYTRAL45
No. Modelo NSYTRAL45
connection accessory
-40-130°C IEC 60216-1 || -40-130°C VDE 0304-T21
30 A
Polyamide 6/6
0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end
35mm
None
Gray
sideways
Screw Clamp
1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
China
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
30 A
1.88 in
TRV
3.7 at 1 MHz
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
1000 V IEC 60243-1
23NY30
23NY25
V0 0.8 mm UL 94
35mm
Copper
Solid, Stranded
10 AWG
26 AWG
1.87 in
Gray
Polyamide 6/6
47.7 mm
32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A ATEX Exe II Ex II 2 GD || 30-30 A cURus
polyamide 6/6 insulating case || copper alloy connector and screw || copper alloy commoning link || chromium-nickel steel spring
10 AWG
266 Degrees F
1,000 V AC
26 AWG
-40 Degrees F
clip-on
DIN
4 mm²
2
2
1
2
2
1.88 in
1.88 in
0.24 in
1
50
cURus || VDE || IEC-Ex || ATEX || GL || EAC || LR || CSA || DNV
Spacial enclosures
Linergy TR
terminal block
Linergy
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Yes
ATEX, CSA, CURus, DNV, GL, IECEx, LR, UL, VDE
11/32 in
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
-76 Degrees to 266 Degrees F
1
Pass-Through
Copper
Pass-Through
M3
Screw
0.6-0.8 N.m
connection screwdriver || disconnection screwdriver
7 lb-in
V-0
600V AC
0.24 in
26 AWG - 10 AWG
9 mm
1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
