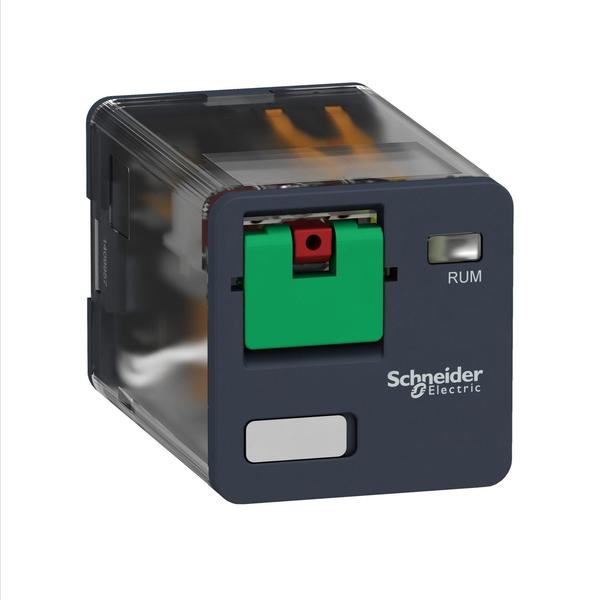

Universal plug-in relay - Zelio RUM - 3, 48V AC Coil Volts, 3 C/O

SKU
Brand Schneider Electric
Categories
Description Universal plug-in relay - Zelio RUM - 3

Web Price

$23.06 / each

Qty

Minimum order: 10

Product Details

AC Contact Rating - Relay 10A @ 250V AC

Ambient Air Temperature For Operation -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Ambient Air Temperature For Storage -40 to 185ÃÂ°F (-40 to 85ÃÂ°C)

Average Coil Consumption in VA 3 60 Hz

Average Coil Resistance 290 Ohm 20ÃÂ°C +/- 15%

Coil Resistance 290 Ohm

Coil Volts 48V AC

Contact Form - Relay 3 C/O

Contact Material AgNi

Control Circuit Voltage 48 V AC 50/60 Hz

Conventional Enclosed Thermal Current 10 A -40 to 131ÃÂ°F (-40 to 55ÃÂ°C)

Country of Origin (subject to change) China

Current Rating 10 A at 277 V AC conforming to UL; 10 A at 30 V DC conforming to UL; 10 A at 277 V AC (same polarity) conforming to CSA; 10 A at 30 V DC conforming to CSA; 5 A at 250 V AC (NC) conforming to IEC; 5 A at 28 V DC (NC) conforming to IEC; 10 A at 250 V AC (NO) conforming to IEC; 10 A at 28 V DC (NO) conforming to IEC

DC Contact Rating - Relay 10A @ 28V DC

Device Presentation Complete product

Dielectric Strength 1500 V AC between contacts with micro disconnection; 2500 V AC between coil and contact with reinforced; 2000 V AC between poles with basic

Drop-Out Voltage Threshold Greater than or Equal to 0.15 Uc AC

Electrical Durability 100000 cycles resistive

Features Lockable Test Button

IP Degree Of Protection IP40

Maximum Switching Capacity 2500 VA/280 W

Mechanical Durability 5000000 cycles

Minimum Switching Capacity 170 mW 10 mA, 17 V

Operating Position Any position

Operating Rate Less than or Equal to 18000 cycles/hour no-load; Less than or Equal to 1200 cycles/hour under load

Operating Temp. Range -40-55ÃÂ°C

Operating Time 20 ms at nominal voltage

Package Quantity 1

Pin Shape cylindrical

Pollution Degree 2

Power Consumption - Relay 3 VA

Product Certifications UL; CSA; EAC

Product Or Component Type Plug-in relay

Protection Category RT I

Rated Impulse Withstand Voltage 4 kV 1.2/50 ÃÂµs)

Rated Insulation Voltage 250 V IEC; 300 V CSA; 300 V UL

Rated Operational Current 10 A at 277 V AC conforming to UL; 10 A at 30 V DC conforming to UL; 10 A at 277 V AC (same polarity) conforming to CSA; 10 A at 30 V DC conforming to CSA; 5 A at 250 V AC (NC) conforming to IEC; 5 A at 28 V DC (NC) conforming to IEC; 10 A at 250 V AC (NO) conforming to IEC; 10 A at 28 V DC (NO) conforming to IEC

Rated Operational Voltage Limits 38.4 to 52.8 V AC

Resistive Rated Load 10 A 250 V AC; 10 A 28 V DC

Series RUM; Universal

Series Name Universal

Shock Resistance 10 gn 11 ms) in operation IEC 60068-2-27; 10 gn 11 ms) not operating IEC 60068-2-27

Standards EN/IEC 61810-1; CSA C22.2 No 14; UL 508; EAC

Status LED Without

Switching Power Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V

Switching Voltage 250 V IEC

Test Levels Level A group mounting

Utilisation Coefficient 0.2

Vibration Resistance 3 gn +/- 1 mm 10 to 150 Hz)5 cycles in operation; 4 gn +/- 1 mm 10 to 150 Hz)5 cycles not operating
