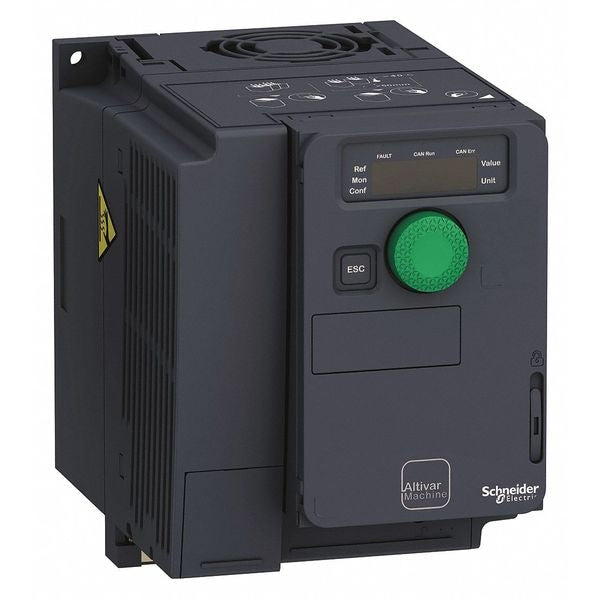

Variable Frequency Drive, 2 HP, 4.1A

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 500V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 2 hp, Maximum Output Current 4.1 A, Output Voltage 500V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
graingerSKU: 443L46, mscSKU: , zoro_no: G5520151, mongo_id: 65bbe6b43aaddbd5a904a545

Web Price

$820.05 / each

Qty

Product Details

Accepts Input Control Signal 0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC

Adjustable Acceleration Time 0 to 6,000 sec

Adjustable Deceleration Time 0 to 6,000 sec

Application Complex machines

Brake Chopper Included Yes

Color Black/Blue/Gray

Control Method Keypad, Remote, Terminal, Network

Control Type Keypad, Remote, Terminal, Network

Country of Origin (subject to change) Indonesia

Depth 5.9 in

Digital Readout Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable

Display Type LED

Displays Set Frequency, Motor Frequency, Hertz, RPM, Custom Units, Motor Current, Motor Voltage, Bus Voltage, Speed, Alarms and Programmable

Dynamic Braking No

Enclosure Totally Enclosed

Enclosure Rating NEMA 1

Ethernet Port Included No

For Use With three-phase Asynchronous, Synchronous Motors

Height 5.62 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 500V AC

Input Voltage Range 323 to 550V AC

Key Pad Lockout Yes

Max. HP 2 hp

Max. Output Amps 4.1 A

Maximum Output Current 4.1 A

Maximum Output Power 2 hp

Number of Inputs (3) Analog; (7) Discrete

Number of Outputs (1) Analog; (3) Discrete

Output Frequency Range 0.1 to 599 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 500V AC

Output Voltage Range 380V AC to 500V AC

Overall Depth 6 1/4 in

Overall Height 5 1/2 in

Overall Width 4 1/8 in

Package Quantity 1

Protection Input phase breaks: drive, Overcurrent between output phases and earth: drive, Overheating protection: drive, Short-circuit between motor phases: drive, Thermal protection: drive

Series Altivar 320

Standards EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274

Start/Stop Control Programmable

Starting Torque 1.5

Style Compact

Torque @ 1 Hz 1.5

Torque Application Constant Torque, Variable Torque

Width 4.21 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
