Name: Variable Frequency Drive, 20 HP, 66A
Brand: Schneider Electric
SKU: G5206719
Price: 2839.65 USD
Availability: InStock

Home / Variable Frequency Drive, 20 HP, 66A

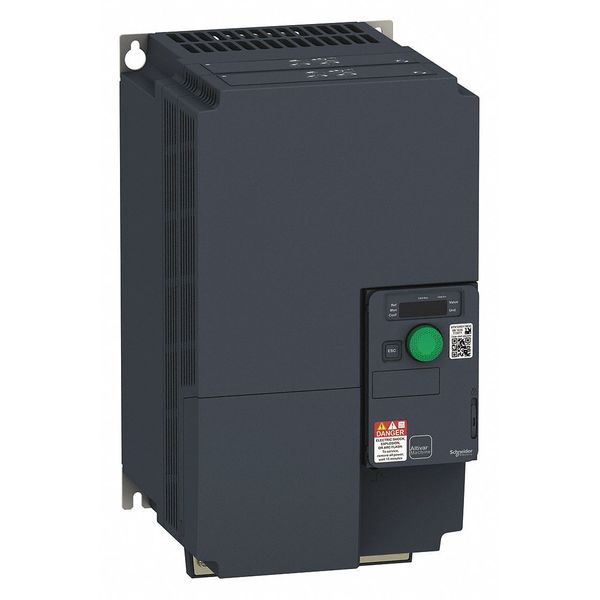

Variable Frequency Drive, 20 HP, 66A

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 20 hp, Maximum Output Current 66 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
graingerSKU: null, mscSKU: null, zoro_no: G5206719, mongo_id: 65bbe5e53aaddbd5a9ff457c

Web Price

$2,839.65 / each

Qty

Product Details

Accepts Input Control Signal 0 to 10V DC, 0 to 20mA Adjustable, Bipolar -10 to 10V DC

Adjustable Acceleration Time 0 to 6,000 sec

Adjustable Deceleration Time 0 to 6,000 sec

Application Complex Machines

Brake Chopper Included Yes

Color Black/Blue/Gray

Control Method Keypad, Remote, Terminal, Network

Control Type Keypad, Remote, Terminal, Network

Country of Origin (subject to change) Indonesia

Depth 7.48 in

Digital Readout Output Frequency, Output Current, Output Voltage

Display Type LED

Displays LED

Dynamic Braking No

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included No

For Use With three-phase Asynchronous, Synchronous Motors

Height 12.99 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 240V AC

Input Voltage Range 170 to 264V AC

Key Pad Lockout Yes

Max. HP 20 hp

Max. Output Amps 66 A

Maximum Output Current 66 A

Maximum Output Power 20 hp

Number of Inputs (3) Analog; (7) Discrete

Number of Outputs (1) Analog; (3) Discrete

Output Frequency Range 0.1 to 599 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 240V AC

Output Voltage Range 200V AC to 240V AC

Overall Depth 7 7/8 in

Overall Height 13 in

Overall Width 7 in

Package Quantity 1

Protection Input Phase Breaks Drive, Overcurrent Between Output Phases And Earth Drive, Overheating Protection Drive, Short-Circuit Between Motor Phases Drive, Thermal Protection Drive

Series Altivar 320

Standards EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 508C, UL 61800-5-1, CSA C22.2 No 274

Start/Stop Control Programmable

Starting Torque 1.5

Style Compact

Torque @ 1 Hz 1.5

Torque Application Constant Torque, Variable Torque

Width 7.08 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
