Home / Variable Frequency Drive, 250 hp, 480V AC

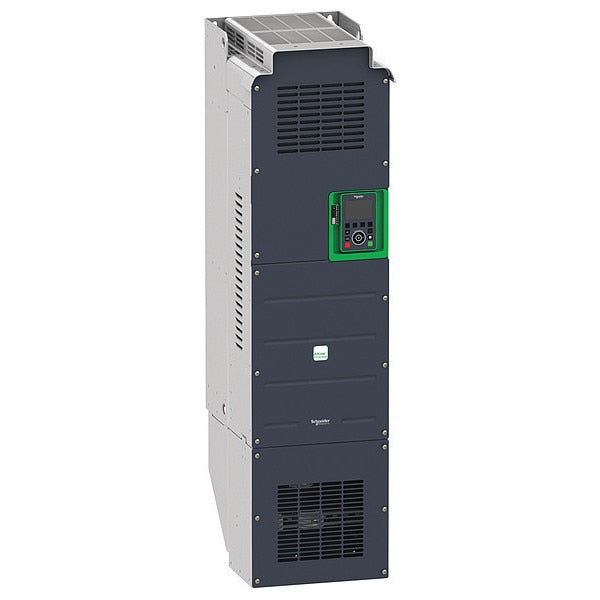

Variable Frequency Drive, 250 hp, 480V AC

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 250 hp, Maximum Output Current 302 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
graingerSKU: null, mscSKU: null, zoro_no: G3547102, mongo_id: 65bbe5e53aaddbd5a9ff457a

Web Price

$29,109.99 / each

Qty

Product Details

Adjustable Acceleration Time 0.01 to 9999 sec

Adjustable Deceleration Time 0.01 to 9999 sec

Application Industrial Process and Utilities

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Constant Torque Standard, Optimized Torque Mode, Variable Torque Standard

Country of Origin (subject to change) India

Depth 15.35 in

Digital Readout No

Display Type Graphic

Displays Graphic Display

Dynamic Braking No

Enclosure Totally Enclosed

Enclosure Rating NEMA 1

Ethernet Port Included Yes

For Use With Three-phase supply voltage: 380...480 V 50/60 Hz

Height 33.54 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 480V AC

Input Voltage Range 380V AC to 480V AC

Max. HP 200 hp, 250 hp

Max. Output Amps 332.2 A, 375 A

Maximum Output Current 302 A

Maximum Output Power 250 hp

Number of Inputs (3) Analog; (8) Discrete

Number of Outputs (2) Analog; (3) Relay

Output Frequency Range 0.1 to 500 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 480V AC

Output Voltage Range 380V AC to 480V AC

Overall Depth 15 3/8 in

Overall Height 33 5/8 in

Overall Width 12 5/8 in

Package Quantity 1

Protection Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage

Series Altivar Process ATV600 Variable Speed Drives

Standards UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1

Start/Stop Control Programmable

Style Compact

Torque Application Constant Torque, Variable Torque

Width 12.6 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor With Line Contactor
