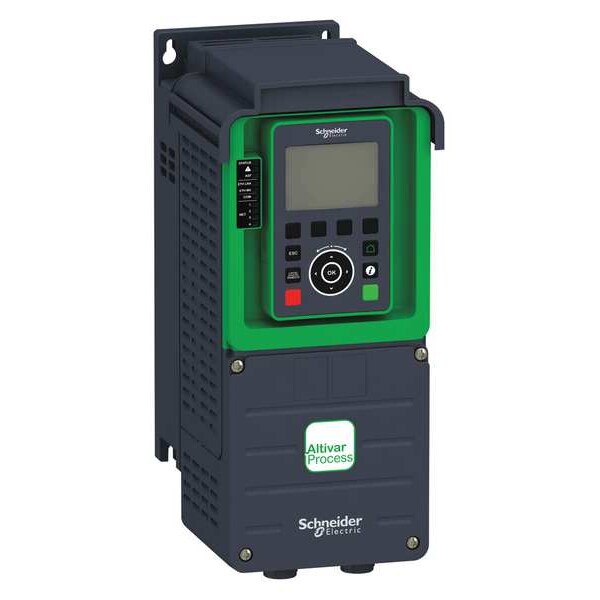

Variable Frequency Drive, 3 HP, 6.2A

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 3 hp, Maximum Output Current 5.6 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
graingerSKU: 53RF83, mscSKU: , zoro_no: G0211817, mongo_id: 65bbe6913aaddbd5a903c0d7

Web Price

$2,766.24 / each

Qty

Product Details

Accepts Input Control Signal Yes

Adjustable Acceleration Time 0.01 to 9,999 sec

Adjustable Deceleration Time 0.01 to 9,999 sec

Application Industrial Process and Utilities

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Keypad, Remote Keypad, Terminal, Digital Communication Network

Control Type Keypad, Remote Keypad, Terminal, Digital Communication Network

Country of Origin (subject to change) Indonesia

Depth 7.99 in

Digital Readout Yes

Display Type LCD

Displays LCD Keypad

Dynamic Braking No

Enclosure Totally Enclosed

Enclosure Rating NEMA 1

Ethernet Port Included Yes

For Use With Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW

Height 13.78 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 480V AC

Input Voltage Range 380 to 480V AC

Key Pad Lockout None

Max. HP 3 hp

Max. Output Amps 6.2 A

Maximum Output Current 5.6 A

Maximum Output Power 3 hp

Number of Inputs (3) Analog; (8) Discrete

Number of Outputs (2) Analog; (3) Relay

Output Frequency Range 0.1 to 500 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 480V AC

Output Voltage Range 380V AC to 480V AC

Overall Depth 8 in

Overall Height 13 3/4 in

Overall Width 5 3/4 in

Package Quantity 1

Protection Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage

Series Altivar Process ATV600 Variable Speed Drives

Standards UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1

Start/Stop Control Programmable

Style Compact

Torque Application Constant Torque, Variable Torque

Width 5.67 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor With Line Contactor
