Home / Variable Frequency Drive, 30 hp, 480V AC

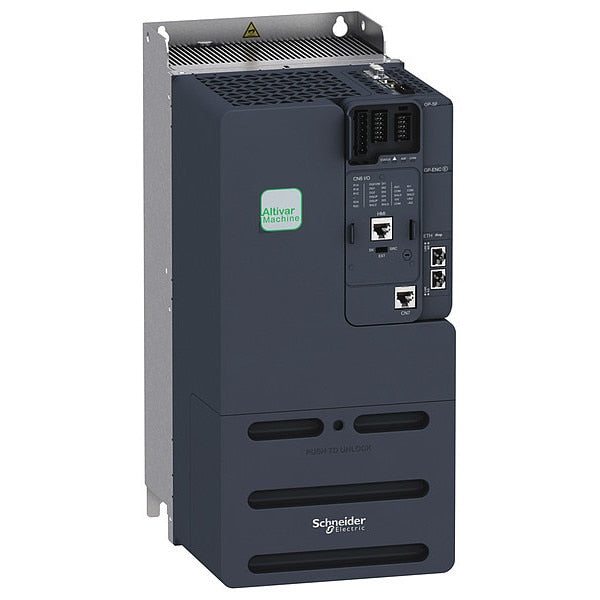

Variable Frequency Drive, 30 hp, 480V AC

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 30 hp, Maximum Output Current 46 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 599 Hz, Enclosure Rating NEMA 1
graingerSKU: 55WR77, mscSKU: , zoro_no: G0196597, mongo_id: 65bbe9f322d7a989a998a350

Web Price

$5,372.49 / each

Qty

Product Details

Adjustable Acceleration Time 0.01 to 9,999 sec

Adjustable Deceleration Time 0.01 to 9,999 sec

Application Industrial Process and Utilities

Brake Chopper Included Yes

Color Black/Blue/Gray

Control Method Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard

Country of Origin (subject to change) Indonesia

Depth 9.8 in

Digital Readout No

Display Type None

Displays None

Dynamic Braking No

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included Yes

For Use With Three-phase supply voltage: 380...480 V 50/60 Hz

Height 15.16 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 480V AC

Input Voltage Range 380 to 480V AC

Key Pad Lockout None

Max. HP 25 hp, 30 hp

Max. Output Amps 50.6 A, 59 A, 62.1 A, 70 A

Maximum Output Current 46 A

Maximum Output Power 30 hp

Number of Inputs (2) Analog; (1) Discrete; (3) Relay

Number of Outputs (3) Analog; (8) Discrete

Output Frequency Range 0.1 to 599 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 480V AC

Output Voltage Range 323V AC to 528V AC

Overall Depth 9 3/4 in

Overall Height 5 1/8 in

Overall Width 7 1/8 in

Package Quantity 1

Protection Break on the control circuit, DC Bus overvoltage, Exceeding limit speed, Input supply loss, Line supply overvoltage, Line supply undervoltage, Motor phase loss, Output overcurrent between motor phase and earth, Output overcurrent between motor phases, Overcurrent, Overheating, Safe torque off, Short-circuit between motor phase and earth, Short-circuit between motor phases, Thermal protection

Series Altivar Machine ATV340

Standards EN/IEC 61800-3, Environment 1 Category C2 EN/IEC 61800-3, Environment 2 Category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 60721-3, IEC 61508, IEC 13849-1, UL 618000-5-1

Start/Stop Control Programmable

Style Ethernet

Torque Application Constant Torque, Variable Torque

Width 7.09 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor With Line Contactor
