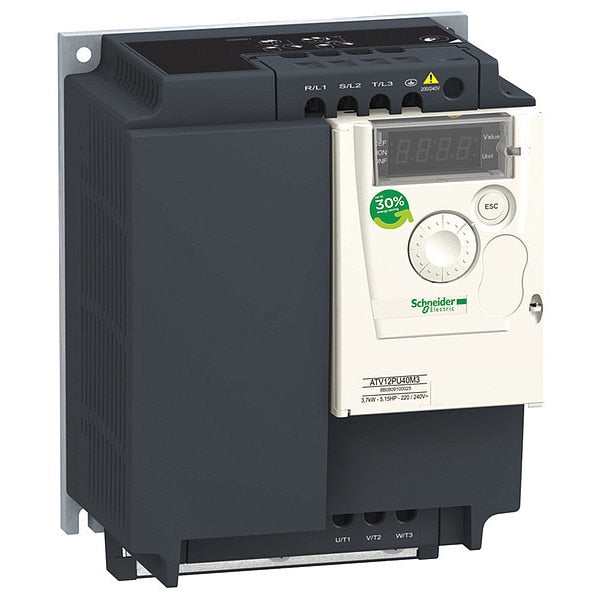

Variable Frequency Drive, 3hp, 200 to 240V

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 200 to 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 3 hp, Maximum Output Current 12.2 A, Output Voltage 200 to 240V AC, Output Phase AC Three, Output Frequency Range 0.5 to 400 Hz, Enclosure Rating NEMA 1
graingerSKU: , mscSKU: , zoro_no: G3605988, mongo_id: 65bbe6093aaddbd5a9002cee

Web Price

$703.74 / each

Qty

Product Details

Adjustable Acceleration Time 0 to 999.9 sec

Adjustable Deceleration Time 0 to 999.9 sec

Application Commercial Equipment Mixer, Commercial Equipment Other Application, Textile Ironing

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Quadratic V/Hz, Volts Per Hz, Sensor less Flux Vector Control

Country of Origin (subject to change) Indonesia

Depth 3.94 in

Digital Readout Yes

Display Type LED

Displays LED

Dynamic Braking No

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included No

For Use With Motor, Three-phase supply voltage: 200ÃÂ¿240 V 50/60 Hz

Height 7.24 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 200 to 240V AC

Input Voltage Range 170 to 264V AC

Max. HP 3 hp

Max. Output Amps 18.3 A

Maximum Output Current 12.2 A

Maximum Output Power 3 hp

Number of Inputs (2) Analog; (4) Discrete

Number of Outputs (1) Analog; (2) Discrete

Output Frequency Range 0.5 to 400 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 200 to 240V AC

Output Voltage Range 200V AC to 240V AC

Overall Depth 4 in

Overall Height 7 1/4 in

Overall Width 5 1/2 in

Package Quantity 1

Protection Against Input Phase Loss in Three-Phase, Line Supply Overvoltage, Line Supply Undervoltage, Overcurrent Between Output Phases and Earth, Overheating Protection, Short-Circuit Between Motor phases, Thermal Motor Protection via the Drive by Continuous Calculation of IÃÂ²t

Series Altivar 12

Standards UL, C-tick, NOM, GOST, CSA

Start/Stop Control Programmable

Starting Torque 150% to 170%

Style Base Plate

Torque Application Constant Torque, Variable Torque

Width 5.51 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
