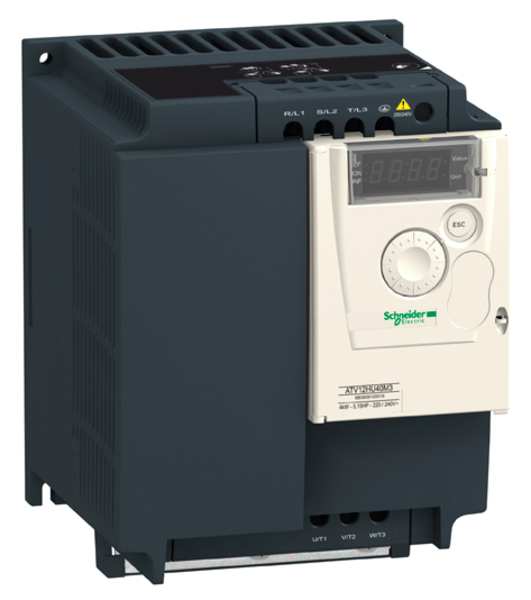

Variable Frequency Drive, 4 HP, 230VAC, Altivar

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 200 to 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 4 hp, Maximum Output Current 12.2 A, Output Voltage 200 to 240V AC, Output Phase AC Three, Output Frequency Range 0.5 to 400 Hz, Enclosure Rating NEMA 1
graingerSKU: 5WJK9, mscSKU: , zoro_no: G2775087, mongo_id: 65bbe7859a749db822740bf4

Web Price

$482.49 / each

Qty

Product Details

Accepts Input Control Signal Yes

Adjustable Acceleration Time 0 to 999.9 sec

Adjustable Deceleration Time 0 to 999.9 sec

Application Ironing Textile, Mixer Commercial Equipment, Other Application Commercial Equipment

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Keypad or Remote Keypad or Modbus

Control Type Keypad, Modbus, Remote Keypad

Country of Origin (subject to change) Indonesia

Depth 5.56 in

Digital Readout Yes

Display Type LED

Displays LED

Dynamic Braking No

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included No

For Use With 3-Phase Inverter Duty Motor

Height 6.69 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 200 to 240V AC

Input Voltage Range 200 to 240V AC

Key Pad Lockout Yes

Max. HP 4 hp

Max. Output Amps 12.2 A

Maximum Output Current 12.2 A

Maximum Output Power 4 hp

Number of Inputs (2) Analog; (4) Discrete

Number of Outputs (1) Analog; (2) Discrete

Output Frequency Range 0.5 to 400 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 200 to 240V AC

Output Voltage Range 170V AC to 264V AC

Overall Depth 5 1/2 in

Overall Height 7 1/4 in

Overall Width 5 1/2 in

Package Quantity 1

Protection Against Input Phase Loss in Three-Phase, Line Supply Overvoltage, Line Supply Undervoltage, Overcurrent Between Output Phases and Earth, Overheating Protection, Short-Circuit Between Motor phases, Thermal Motor Protection via the Drive by Continuous Calculation of IÃÂ²t

Series Altivar 12

Standards UL, C-tick, NOM, GOST, CSA

Start/Stop Control Programmable

Starting Torque 150% to 170%

Style Heat Sink

Torque @ 1 Hz 120%

Torque Application Constant Torque, Variable Torque

Width 5.51 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
