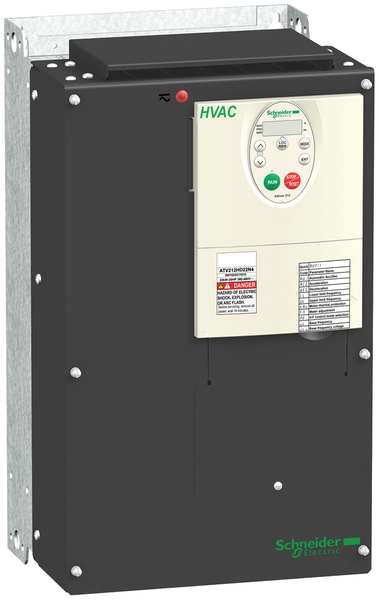

Variable Frequency Drive, 40 HP, 400-480V, Altivar 212 AC Drive

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 380 to 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 40 hp, Maximum Output Current 58.5 A, Output Voltage 323 to 528V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 1
graingerSKU: 6MVC9, mscSKU: , zoro_no: G1834436, mongo_id: 65bbe73e3aaddbd5a9083a93

Web Price

$4,407.49 / each

Qty

Product Details

Accepts Input Control Signal Yes

Adjustable Acceleration Time 0.01 to 3,200 sec

Adjustable Deceleration Time 0.01 to 3,200 sec

Application Building - HV AC Compressor for Scroll, Building - HV AC Fan, Building - HV AC Pump

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Keypad or Logic Input

Control Type Keypad, Logic Input

Country of Origin (subject to change) China

Depth 8.43 in

Digital Readout Hertz, Motor Current, KW, Motor Voltage, Bus Energized

Display Type LED

Displays LED

Dynamic Braking No

Enclosure Open

Enclosure Rating NEMA 1

Ethernet Port Included No

For Use With 3-Phase Inverter Duty Motor

Height 16.54 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 380 to 480V AC

Input Voltage Range 380 to 480V AC

Key Pad Lockout Yes

Max. HP 40 hp

Max. Output Amps 58.5 A

Maximum Output Current 58.5 A

Maximum Output Power 40 hp

Number of Inputs 2

Number of Outputs (1) Analog; (2) Discrete

Output Frequency Range 0.5 to 200 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 323 to 528V AC

Output Voltage Range 380V AC to 480V AC

Overall Depth 8 1/2 in

Overall Height 16 1/2 in

Overall Width 9 1/2 in

Package Quantity 1

Protection Against Exceeding Limit Speed: Drive, Against Input Phase Loss: Drive, Break on the Control Circuit: Drive, Input Phase Breaks: Drive, Line Supply Overvoltage and Undervoltage: Drive, Line Supply Undervoltage: Drive, Motor Phase Break: Motor, Overcurrent Between Output Phases and Earth: Drive, Overheating Protection: Drive, Overvoltage's on the DC Bus: Drive, Short-Circuit Between Motor Phases: Drive, Thermal Power Stage: Drive, Thermal Protection: Motor, With PTC Probes: Motor

Series ATV212

Standards UL, NOM 117, C-Tick, CSA

Start/Stop Control Programmable

Starting Torque 120%

Style Heat Sink

Torque @ 1 Hz 110%

Torque Application Constant Torque, Variable Torque

Width 9.45 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor No Line Contactor
