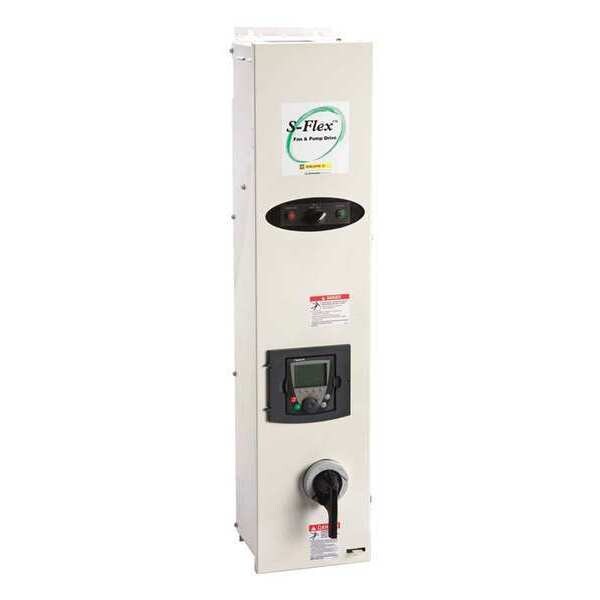

Variable Frequency Drive, 50 HP, 460V

SKU
Brand Schneider Electric
Categories
Description S-Flex Enclosed Drive, Input Voltage 460V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 50 hp, Maximum Output Current 65 A, Output Voltage 460V AC, Output Phase AC Three, Output Frequency Range 0.5 to 200 Hz, Enclosure Rating NEMA 1
graingerSKU: 48R259, mscSKU: , zoro_no: G0100311, mongo_id: 65bbe8ab22d7a989a990903f

Web Price

$9,601.24 / each

Qty

Product Details

Accepts Input Control Signal Remote Contact

Application Commercial Office Buildings, Residential High Rise and Mixed-Use Buildings, Schools and Campus Environments

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Keypad, Remote

Control Type Keypad, Remote

Country of Origin (subject to change) Mexico

Depth 13.181 in

Digital Readout Yes

Display Type LCD

Displays LCD

Dynamic Braking No

Enclosure Totally Enclosed

Enclosure Rating NEMA 1

Ethernet Port Included No

Height 60.006 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog

Input Voltage 460V AC

Input Voltage Range 460V AC

Key Pad Lockout None

Max. HP 50 hp

Max. Output Amps 65 A

Maximum Output Current 65 A

Maximum Output Power 50 hp

Number of Inputs (2) Analog

Number of Outputs (1) Analog

Output Frequency Range 0.5 to 200 Hz

Output Phase AC Three

Output Type Analog

Output Voltage 460V AC

Output Voltage Range 460V AC

Overall Depth 13 1/4 in

Overall Height 60 1/8 in

Overall Width 12 1/2 in

Package Quantity 1

Protection Against Exceeding Limit Speed for Drive, Against Input Phase Loss for Drive, Break On the Control Circuit for Drive, Line Supply Overvoltage and Undervoltage for Drive, Line Supply Undervoltage for Drive, Motor Phase Break for Motor, PTC Probes for Motor, Thermal Protection for Motor

Series S-Flex Altivar 212

Standards UL Type 1, CSA, CE, NOM, C-Tick, RoHS

Start/Stop Control Programmable

Torque Application Constant Torque, Variable Torque

Width 12.532 in

With Bypass / No Bypass With Bypass

With Line Contactor / No Line Contactor With Line Contactor
