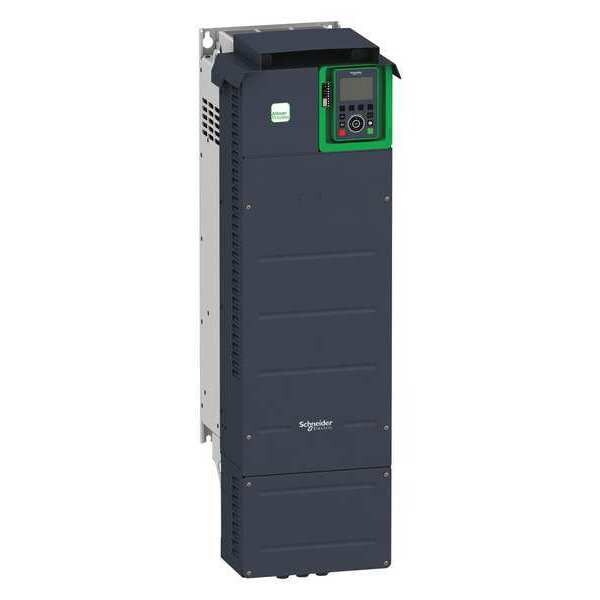

Variable Frequency Drive, 75 HP, 132A

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 480V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 75 hp, Maximum Output Current 106 A, Output Voltage 480V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
graingerSKU: 53RF76, mscSKU: , zoro_no: G0211701, mongo_id: 65bbe8ab22d7a989a9909043

Web Price

$13,839.99 / each

Qty

Product Details

Accepts Input Control Signal Yes

Adjustable Acceleration Time 0.01 to 9,999 sec

Adjustable Deceleration Time 0.01 to 9,999 sec

Application Industrial Process and Utilities

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Keypad, Remote Keypad, Terminal, Digital Communication Network

Control Type Keypad, Remote Keypad, Terminal, Digital Communication Network

Country of Origin (subject to change) India

Depth 12.72 in

Digital Readout Yes

Display Type LCD

Displays LCD Keypad

Dynamic Braking No

Enclosure Totally Enclosed

Enclosure Rating NEMA 1

Ethernet Port Included Yes

For Use With Synchronous, Asynchronous Motors and Special Motors From 800kW to 1.5MW

Height 36.3 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 480V AC

Input Voltage Range 380 to 480V AC

Key Pad Lockout None

Max. HP 75 hp

Max. Output Amps 132 A

Maximum Output Current 106 A

Maximum Output Power 75 hp

Number of Inputs (3) Analog; (8) Discrete

Number of Outputs (2) Analog; (3) Relay

Output Frequency Range 0.1 to 500 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 480V AC

Output Voltage Range 380V AC to 480V AC

Overall Depth 12 3/4 in

Overall Height 36 3/8 in

Overall Width 11 1/2 in

Package Quantity 1

Protection Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage

Series Altivar Process ATV600 Variable Speed Drives

Standards UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1

Start/Stop Control Programmable

Style Compact

Torque Application Constant Torque, Variable Torque

Width 11.42 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor With Line Contactor
