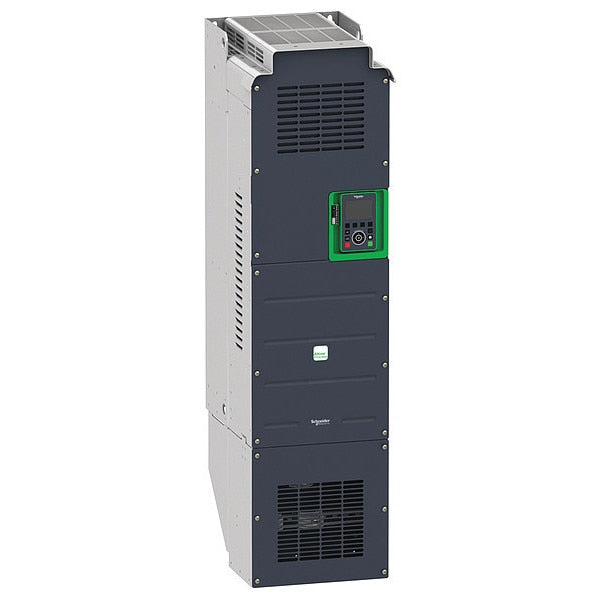

Variable Frequency Drive, 75 hp, 240V AC

SKU
Brand Schneider Electric
Categories
Description Variable Speed Drive, Input Voltage 240V AC, Input Phase AC Three, Input Frequency 50/60 Hz, Maximum Output Power 75 hp, Maximum Output Current 211 A, Output Voltage 240V AC, Output Phase AC Three, Output Frequency Range 0.1 to 500 Hz, Enclosure Rating NEMA 1
graingerSKU: 55WT01, mscSKU: , zoro_no: G3546917, mongo_id: 65bbe9ad22d7a989a996d82b

Web Price

$17,334.99 / each

Qty

Product Details

Adjustable Acceleration Time 0.01 to 9,999 sec

Adjustable Deceleration Time 0.01 to 9,999 sec

Application Industrial Process and Utilities

Brake Chopper Included No

Color Black/Blue/Gray

Control Method Variable Torque Standard, Optimized Torque Mode, Constant Torque Standard

Country of Origin (subject to change) India

Depth 15.35 in

Digital Readout No

Display Type Graphic

Displays Graphic Display

Dynamic Braking No

Enclosure Totally Enclosed

Enclosure Rating NEMA 1

Ethernet Port Included Yes

For Use With Motor, Three-phase supply voltage: 200ÃÂ¿240 V 50/60 Hz

Height 33.54 in

Input Frequency 50/60 Hz

Input Phase AC Three

Input Type Analog, Discrete

Input Voltage 240V AC

Input Voltage Range 200 to 240V AC

Max. HP 60 hp, 75 hp

Max. Output Amps 232.1 A, 264 A

Maximum Output Current 211 A

Maximum Output Power 75 hp

Number of Inputs (3) Analog; (8) Discrete

Number of Outputs (2) Analog; (3) Relay

Output Frequency Range 0.1 to 500 Hz

Output Phase AC Three

Output Type Analog, Discrete

Output Voltage 240V AC

Output Voltage Range 200V AC to 240V AC

Overall Depth 15 3/8 in

Overall Height 33 5/8 in

Overall Width 12 5/8 in

Package Quantity 1

Protection Motor Phase Break, Overcurrent, Overheating, Overspeed, Overvoltage's, Safe Torque Off, Short-circuit Protection, Thermal Protection, Undervoltage

Series Altivar Process ATV600 Variable Speed Drives

Standards UL 508C, EN/IEC 61800-3, Environment 1 category C2 EN/IEC 61800-3, Environment 2 category C3 EN/IEC 61800-3, EN/IEC 61800-5-1, IEC 61000-3-12, IEC 60721-3, IEC 61508, IEC 13849-1

Start/Stop Control Programmable

Style Compact

Torque Application Constant Torque, Variable Torque

Width 12.6 in

With Bypass / No Bypass No Bypass

With Line Contactor / No Line Contactor With Line Contactor
