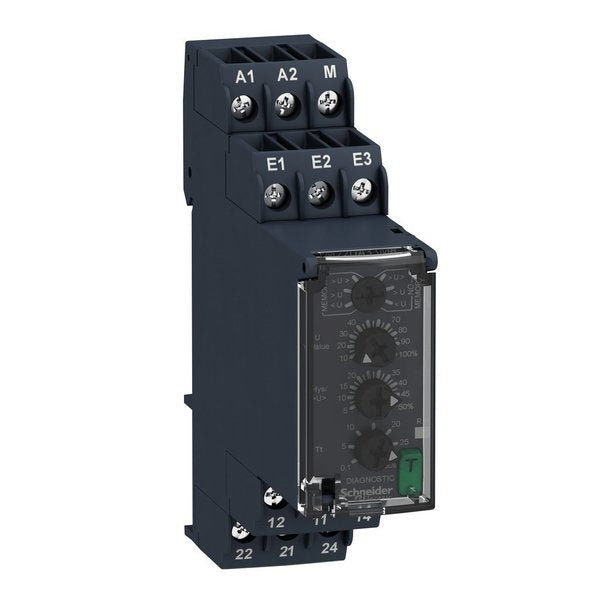

Volt Mon Relay, 24-240VAC In, 15-500VAC/V

SKU
Brand Schneider Electric
Categories
Description Volt Mon Relay,24-240VAC In,15-500VAC/V
graingerSKU: , mscSKU: , zoro_no: G5957139, mongo_id: 65bbe6543aaddbd5a902186c

Web Price

$203.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C 60 Hz || -20-60ÃÂ°C 50 Hz

Ambient Air Temperature For Storage -40-70ÃÂ°C

Compatibility Code RM22

Connections - Terminals screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mmÃÂ² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 14) flexible with cable end

Contacts Material cadmium free

Contacts Type And Composition 2 C/O

Country of Origin (subject to change) India

Dielectric Test Voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27

Electrical Durability 100000 cycles

Electromagnetic Compatibility immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22

Functionality undervoltage and overvoltage in window mode

Housing Material self-extinguishing plastic

Hysteresis 3-3 % fixed full scale for window mode || 5-50 % adjustable threshold setting

Immunity To Microbreaks 10 ms

Insulation between supply and measurement

Insulation Resistance > 100 MOhm 500 V DC

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

Maximum Measuring Cycle 100 ms measurement cycle as true rms value

Maximum Power Consumption In W 1.5 W DC

Maximum Switching Current 8 A AC

Maximum Switching Voltage 250 V AC

Measurement Error < 1 % over the whole range with voltage variation || 0.05 %/ÃÂ°C with temperature variation

Measurement Range 15...500 V voltage AC/DC 50/60 Hz

Mechanical Durability 10000000 cycles

Minimum Switching Current 10 mA 5 V DC

Mounting Support 35 mm DIN rail conforming to EN/IEC 60715

Nominal Output Current 8A

Output Contacts 2 C/O

Overvoltage Category III IEC 60664-1

Package Quantity 1

Phase 1 phase

Pollution Degree 3 IEC 60664-1

Power Consumption In Va 3.5-3.5 VA AC

Product Certifications RCM || UL || EAC || CSA || CE || GL || CCC

Product Or Component Type voltage control relay

Relative Humidity 93-97 % 25-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters undervoltage and overvoltage in window mode || overvoltage or undervoltage detection

Relay Name RM22UA

Relay Type voltage control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit || +/- 2 % time delay

Reset Time 1500 ms at maximum voltage

Resistance Across Terminals 150 kOhm E2-M terminals || 300 kOhm E1-M terminals || 500 kOhm E3-M terminals

Response Time <= 500 ms

Run-Up Delay At Power-Up 600 ms

Shock Resistance 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Standards EN/IEC 60255-1

Supply Circuit Type DC

Supply Voltage Limits 20.4-264 V AC/DC

Switching Capacity In Va 2000 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt

Utilisation Category AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Vibration Resistance 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Width 22.5 mm

[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz
