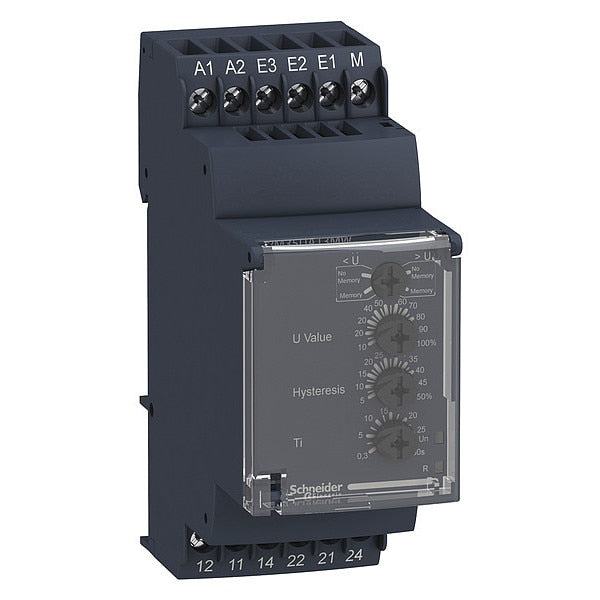

Voltage Relay 250V 5Amp Rm35

SKU
Brand Schneider Electric
Categories
Description Voltage Relay
graingerSKU: null, mscSKU: null, zoro_no: G0572087, mongo_id: 65bbe5ee3aaddbd5a9ff6776

Web Price

$198.74 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Coil Volts 250VAC/DC

Compatibility Code RM3

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contacts Type And Composition 2 C/O

Control Circuit Frequency 40...70 Hz +/- 10 %

Control Circuit Voltage Limits 15 % + 10 % Un

Country of Origin (subject to change) Multiple

Dielectric Test Voltage 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1

Electrical Durability 100000 cycles

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2

Housing Material self-extinguishing plastic

Hysteresis 5-50 % threshold setting

Immunity To Microbreaks 10 ms

Insulation Resistance > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

Item - Relay Voltage Sensing Relay

Local Signalling for power ON LED (green) || for relay ON LED (yellow)

Maximum Measuring Cycle 30 ms measurement cycle as true rms value

Maximum Power Consumption In W 0.6 W DC

Maximum Switching Current 5 A AC/DC

Maximum Switching Voltage 250 V AC/DC

Measurement Accuracy +/- 10 % of the full scale value

Measurement Error +/- 0.05 %/ÃÂ°C with temperature variation || < 1 % over the whole range with voltage variation

Measurement Range 15...600 V voltage

Mechanical Durability 30000000 cycles

Minimum Switching Current 10 mA 5 V DC

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 2 C/O

Overvoltage Category III IEC 60664-1

Package Quantity 1

Polarity non reversible polarity on DC supply

Pollution Degree 3 IEC 60664-1

Power Consumption In Va 0-3.5 VA AC

Product Certifications GOST || UL || GL || C-tick || CSA

Product Or Component Type voltage control relay

Quality Labels CE

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters overvoltage or undervoltage detection

Relay Name RM35UA

Relay Type multifunction voltage control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit || +/- 2 % time delay

Reset Time 1500 ms time delay

Resistance Across Terminals 150 mOhm E1-M terminals || 300 mOhm E2-M terminals || 600 mOhm E3-M terminals

Run-Up Delay At Power-Up 600 ms

Sensitivity Scale 15...150 V E1-M terminals || 30...300 V E2-M terminals || 60...600 V E3-M terminals

Shock Resistance 5 gn IEC 60068-2-27

Standards EN/IEC 60255-6

Supply Voltage Limits 20.4-264 V AC/DC

Switching Capacity In Va 1250 VA

Threshold Setting 10...100 %

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type adjustable 0.3...30 s, 0 + 10 % on crossing the threshold

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

Width 35 mm

[Ui] Rated Insulation Voltage 250 V IEC 60664-1 || 600 V IEC 60664-1

[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz +/- 10 %
