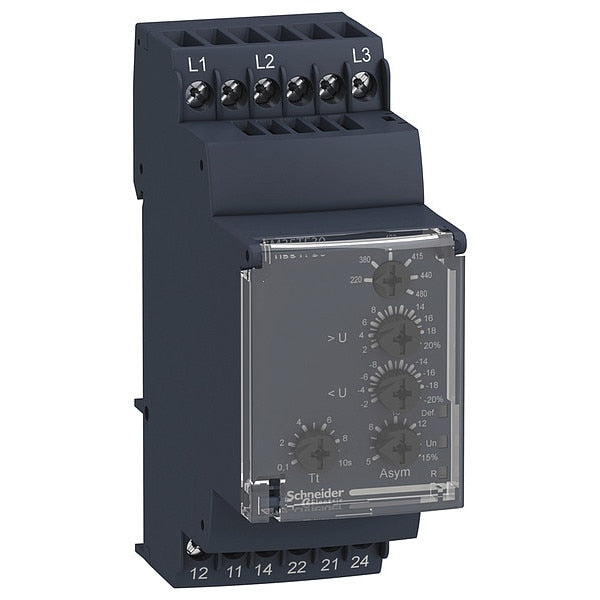

VoltageSensingRelay, 12 Pins, 120-277VAC

SKU
Brand Schneider Electric
Categories
Description Voltage Sensing Relay, Base Shape Square, Contact Form DPDT, Contact Rating (AC) 5 A @ 120/240V, Contact Rating (DC) 5 A @ 250V, Current Rating 5 A, Flat Pin Width Not Applicable, Input Voltage 120 to 277V AC, Monitored Parameters Absence of Neutral, Overvoltage, Undervoltage, Number of Pins 12, Restart Auto, Restart Time Delay 1.5 sec, IP Rating IP30, Mounting Style DIN Rail, Body Depth 2.84 in, Body Height 3.54 in, Body Width 1.38 in, Electrical Operating Durability 100,000, Frequency 50/60 Hz

Web Price

$349.99 / each

Qty

Product Details

AC Contact Rating - Relay 5A @ 120/240V

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Base Shape Square

Body Depth 2.84 in

Body Depth - Relay 2.84 in

Body Height 3.54 in

Body Height - Relay 3.54 in

Body Width 1.38 in

Body Width - Relay 1.38 in

Compatibility Code RM3

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contact Form DPDT

Contact Rating (AC) 5 A @ 120/240V

Contact Rating (DC) 5 A @ 250V

Contacts Type And Composition 2 C/O

Control Circuit Frequency 50...60 Hz +/- 15 %

Country of Origin (subject to change) Indonesia

Current Rating 5 A

DC Contact Rating - Relay 5A @ 250V

Dielectric Test Voltage 2 kV AC 50 Hz, 1 min

Electrical Connection Type Screw

Electrical Durability 10000 cycles

Electrical Operating Durability 100,000

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2

Flat Pin Width Not Applicable

Frequency 50/60 Hz

Functionality overvoltage and undervoltage detection

Housing Material Plastic

Hysteresis 2-2 %

Input Voltage 120 to 277V AC

Insulation Resistance > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

IP Rating IP30

Item - Relay Voltage Sensing Relay

Local Signalling for power ON LED (green) || for relay ON LED (yellow)

Maximum Measuring Cycle 150 ms measurement cycle as true rms value

Maximum Operating Temperature 122 Degrees F

Maximum Switching Capacity 1,250 VA

Maximum Switching Current 5 A

Maximum Switching Voltage 250V AC/DC

Measurement Accuracy +/- 10 % of the full scale value

Measurement Error < 1 % over the whole range with voltage variation || 0.05 %/ÃÂ°C with temperature variation

Measurement Range 114...329 V voltage AC 50/60 Hz

Mechanical Durability 30000000 cycles

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -4 Degrees F

Minimum Switching Current 10 mA

Monitored Parameters Absence of Neutral, Overvoltage, Undervoltage

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV

Number of Pins 12

Number of Pins - Relay 6

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 1 C/O + 1 C/O, 1 per threshold

Overall Depth 2.84 in

Overall Height - Relay 3.65 in

Overvoltage Category III IEC 60664-1

Package Quantity 1

Pollution Degree 3 IEC 60664-1

Power Consumption 1,250 VA

Power Consumption In Va 0-3.9 VA AC

Product Certifications UL || C-tick || GL || CSA || GOST

Product Or Component Type voltage control relay

Product Specific Application for 3-phase supply

Quality Labels CE

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters absence of neutral || overvoltage and undervoltage between phases || overvoltage and undervoltage between neutral

Relay Mounting Style DIN-Rail

Relay Name RM35UB3

Relay Type voltage control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit || +/- 1 % time delay

Reset Time 1500 ms time delay

Response Time < 200 ms (in the event of a fault)

Restart Auto

Restart Time Delay 1.5 sec

Run-Up Delay At Power-Up 650 ms

Shock Resistance 5 gn IEC 60068-2-27

Socket Code Configurator DIN-Rail / Square / 12

Standards C-Tick, CSA Certified, EN/IEC 60255-1, EN/IEC 61000-6-4, EU RoHS, GL, GOST, Reach Regulation, UL Listed

Supply Voltage Limits 114-329 V AC

Switching Capacity In Va 1250 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type adjustable 0.3...30 s, 0 + 10 % on crossing the threshold

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

Voltage Detection Threshold 114 V

Weight 4.64 oz

Width 35 mm

[Ui] Rated Insulation Voltage 400 V IEC 60664-1

[Us] Rated Supply Voltage 120...277 V AC 50/60 Hz +/- 10 %
