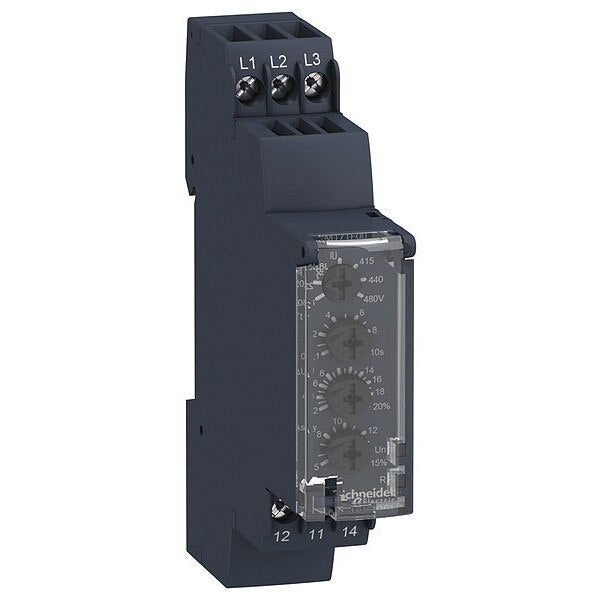

VoltSensingRelay, 5A, 24-48VAC/DC, 6Pins

SKU
Brand Schneider Electric
Categories
Description Voltage Sensing Relay, Base Shape Square, Current Rating 5 A, Input Voltage 24 to 48V AC/DC, Pick Up Range 15 to 100V AC/DC, Drop-Out Range +/- 10 Percent, Monitored Parameters Overcurrent, Undercurrent, Number of Pins 6, Contact Rating (AC) 5 A @ 24/48V, Contact Rating (DC) 5 A @ 24 to 48V, IP Rating IP20; IP30, Mounting Style DIN Rail, Body Depth 2.84 in, Body Height 3.54 in, Body Width 0.69 in, Maximum Operating Temperature 158 Degrees F, Maximum Switching Capacity 1,250 VA

Web Price

$192.49 / each

Qty

Product Details

AC Contact Rating - Relay 5A @ 24/48V

Ambient Air Temperature For Operation -20-50ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Base Shape Square

Body Depth 2.84 in

Body Depth - Relay 2.84 in

Body Height 3.54 in

Body Height - Relay 3.54 in

Body Width 0.69 in

Body Width - Relay 0.69 in

Compatibility Code RM17

Connections - Terminals screw terminals, 1 x 0.5...1 x 4 mmÃÂ² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...2 x 2.5 mmÃÂ² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end

Contact Rating (AC) 5 A @ 24/48V

Contact Rating (DC) 5 A @ 24 to 48V

Contacts Type And Composition 1 C/O

Control Circuit Frequency 50...60 Hz +/- 10 %

Country of Origin (subject to change) Indonesia

Current Rating 5 A

DC Contact Rating - Relay 5A @ 24 to 48V

Dielectric Test Voltage 2 kV AC 50 Hz, 1 min IEC 60255-5 || 2 kV AC 50 Hz, 1 min IEC 60664-1

Drop-Out Range +/- 10%

Electrical Connection Type Screw

Electrical Durability 100000 cycles

Electromagnetic Compatibility emission standard for industrial environments EN/IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2

Housing Material self-extinguishing plastic

Hysteresis 5-20 % threshold setting

Immunity To Microbreaks 20 ms

Input Voltage 24 to 48V AC/DC

Insulation Resistance > 500 MOhm 500 V DC IEC 60255-5 || > 500 MOhm 500 V DC IEC 60664-1

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)

IP Rating IP20; IP30

Item - Relay Voltage Sensing Relay

Local Signalling for power ON LED (green) || for relay ON LED (yellow)

Maximum Measuring Cycle 150 ms measurement cycle as true rms value

Maximum Operating Temperature 158 Degrees F

Maximum Power Consumption In W 1.6 W DC

Maximum Switching Capacity 1,250 VA

Maximum Switching Current 5 A

Maximum Switching Voltage 250V AC/DC

Measurement Accuracy +/- 10 % of the full scale value

Measurement Error < 1 % over the whole range with voltage variation || 0.2 %/ÃÂ°C with temperature variation

Measurement Range 20...80 V voltage AC 50/60 Hz || 20...80 V voltage DC

Mechanical Durability 30000000 cycles

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 10 mA

Monitored Parameters Overcurrent, Undercurrent

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Mounting Support 35 mm symmetrical DIN rail conforming to EN/IEC 60715

Nominal Output Current 5A

Non-Dissipating Shock Wave 4 kV IEC 60255-5 || 4 kV IEC 60664-1 || 4 kV IEC 61000-4-5

Number of Pins 6

Number of Pins - Relay 6

Operating Position any position without derating

Operating Rate <= 360 operations/hour full load

Output Contacts 1 C/O

Overall Depth 2.84 in

Overall Height - Relay 3.65 in

Overvoltage Category III IEC 60664-1

Package Quantity 1

Pick Up Range 15 to 100V AC/DC

Polarity non reversible polarity on DC supply

Pollution Degree 3 IEC 60664-1

Power Consumption 3.9 VA

Power Consumption In Va 0-3.9 VA AC

Product Certifications CSA || GL || UL || GOST || C-tick

Product Or Component Type voltage control relay

Product Specific Application for single-phase and DC supply

Quality Labels CE

Relative Humidity 95-95 % 55-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters overvoltage or undervoltage detection || self-powered

Relay Mounting Style DIN-Rail

Relay Name RM17UAS

Relay Type voltage control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit || +/- 1 % time delay

Reset Time 1500 ms time delay

Run-Up Delay At Power-Up 1000 ms DC || 500 ms AC

Shock Resistance 5 gn IEC 60068-2-27

Socket Code Configurator Square / 6

Standards C-Tick, CSA Certified, EN/IEC 60255-6, GL, GOST, UL Listed

Supply Voltage Limits 15-100 V AC/DC

Switching Capacity In Va 1250 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type adjustable 0.1...10 s, 0 + 10 % on crossing the threshold

Trip Delay 0.10 to 10 sec

Utilisation Category AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1

Vibration Resistance 0.35 mm 5-57.6 Hz)IEC 60068-2-6 || 1 gn 57.6-150 Hz)IEC 60255-21-1

Weight 2.82 oz

Width 17.5 mm

[Ui] Rated Insulation Voltage 250 V IEC 60664-1 || 400 V IEC 60664-1

[Us] Rated Supply Voltage 24...48 V AC/DC 50/60 Hz +/- 10 %
