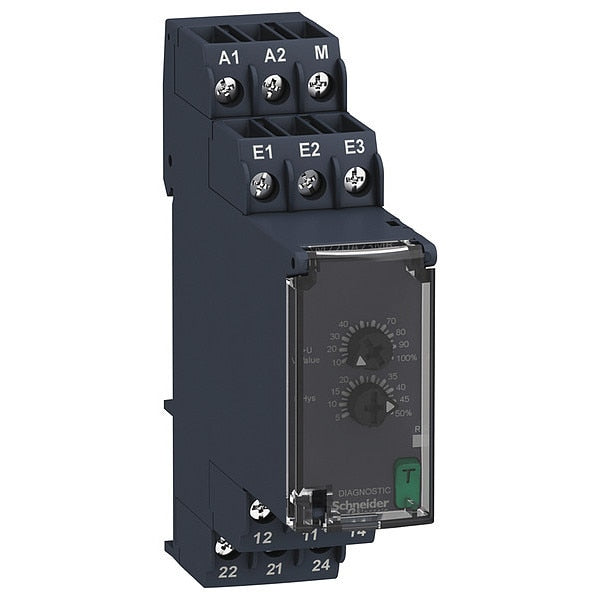

VoltSensingRely, 8A, 24-240VAC/DC, 12Pin

SKU
Brand Schneider Electric
Categories
Description Voltage Sensing Relay, Base Shape Square, Current Rating 8 A, Input Voltage 24 to 240V AC/DC, Pick Up Range 20.4 to 264V AC/DC, Drop-Out Range +/- 10 Percent, Monitored Parameters Overvoltage, Number of Pins 12, Contact Rating (AC) 8 A @ 24/240V, IP Rating IP20; IP40; IP50, Mounting Style DIN Rail, Body Depth 3.13 in, Body Height 3.54 in, Body Width 0.89 in, Maximum Operating Temperature 158 Degrees F, Maximum Switching Capacity 2,000 VA, Maximum Switching Current 8 A
graingerSKU: , mscSKU: , zoro_no: G3459995, mongo_id: 65bbe5cb3aaddbd5a9fe7f1c

Web Price

$252.49 / each

Qty

Product Details

AC Contact Rating - Relay 8A @ 24/240V

Ambient Air Temperature For Operation -20-50ÃÂ°C 60 Hz || -20-60ÃÂ°C 50 Hz

Ambient Air Temperature For Storage -40-70ÃÂ°C

Base Shape Square

Body Depth 3.13 in

Body Depth - Relay 3.13 in

Body Height 3.54 in

Body Height - Relay 3.54 in

Body Width 0.89 in

Body Width - Relay 0.89 in

Compatibility Code RM22

Connections - Terminals screw terminals, 2 x 0.5...2 x 2.5 mmÃÂ² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mmÃÂ² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mmÃÂ² AWG 20...AWG 12) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mmÃÂ² AWG 24...AWG 14) flexible with cable end

Contact Rating (AC) 8 A @ 24/240V

Contacts Material cadmium free

Contacts Type And Composition 2 C/O

Country of Origin (subject to change) Indonesia

Current Rating 8 A

Dielectric Test Voltage 2.5 kV AC 50 Hz, 1 min IEC 60255-27

Drop-Out Range +/- 10%

Electrical Connection Type Screw

Electrical Durability 100000 cycles

Electromagnetic Compatibility immunity for residential, commercial and light-industrial environments EN/IEC 61000-6-1 || immunity for industrial environments EN/IEC 61000-6-2 || emission standard for residential, commercial and light-industrial environments EN/IEC 61000-6-3 || emission standard for industrial environments EN/IEC 61000-6-4 || electrostatic discharge 6 kV contact discharge)level 3 IEC 61000-4-2 || electrostatic discharge 8 kV air discharge)level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test 10 V/mlevel 3 IEC 61000-4-3 || electrical fast transient/burst immunity test 4 kV direct)level 4 IEC 61000-4-4 || electrical fast transient/burst immunity test 2 kV capacitive coupling)level 4 IEC 61000-4-4 || surge immunity test 4 kV common mode)level 4 IEC 61000-4-5 || surge immunity test 2 kV differential mode)level 4 IEC 61000-4-5 || conducted and radiated emissionsclass B group 1 CISPR 11 || conducted and radiated emissionsclass B CISPR 22

Housing Material self-extinguishing plastic

Hysteresis 5-50 % adjustable threshold setting

Immunity To Microbreaks 10 ms

Input or Control Voltage 24 to 240V AC/DC

Input Voltage 24 to 240V AC/DC

Insulation between supply and measurement

Insulation Resistance > 100 MOhm 500 V DC

Ip Degree Of Protection IP20 IEC 60529 terminals) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

IP Rating IP20; IP40; IP50

Item - Relay Voltage Sensing Relay

Maximum Measuring Cycle 100 ms measurement cycle as true rms value

Maximum Operating Temperature 158 Degrees F

Maximum Power Consumption In W 1.5 W DC

Maximum Switching Capacity 2,000 VA

Maximum Switching Current 8 A

Maximum Switching Voltage 250V AC

Measurement Error < 1 % over the whole range with voltage variation || 0.05 %/ÃÂ°C with temperature variation

Measurement Range 15...500 V voltage AC/DC 50/60 Hz

Mechanical Durability 10000000 cycles

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 10 mA

Monitored Parameters Overvoltage

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Mounting Support 35 mm DIN rail conforming to EN/IEC 60715

Number of Pins 12

Number of Pins - Relay 6

Output Contacts 2 C/O

Overall Depth 3.13 in

Overall Height - Relay 3.54 in

Overvoltage Category III IEC 60664-1

Package Quantity 1

Phase 1 phase

Pick Up Range 20.4 to 264V AC/DC

Pollution Degree 3 IEC 60664-1

Power Consumption 3.5 VA

Power Consumption In Va 3.5-3.5 VA AC

Product Certifications CE || CCC || GL || RCM || UL || EAC || CSA

Product Or Component Type voltage control relay

Relative Humidity 93-97 % 25-55ÃÂ°C IEC 60068-2-30

Relay Monitored Parameters overvoltage detection

Relay Mounting Style DIN-Rail

Relay Name RM22UA

Relay Type voltage control relay

Repeat Accuracy +/- 0.5 % input and measurement circuit

Reset Time 1500 ms at maximum voltage

Resistance Across Terminals 150 kOhm E2-M terminals || 300 kOhm E1-M terminals || 500 kOhm E3-M terminals

Response Time <= 500 ms

Run-Up Delay At Power-Up 600 ms

Shock Resistance 15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Socket Code Configurator Square / 12

Standards CCC, CE Certified, CSA Certified, EAC, EN/IEC 60255-1, GL, RCM, UL Listed

Supply Circuit Type DC

Supply Voltage Limits 20.4-264 V AC/DC

Switching Capacity In Va 2000 VA

Tightening Torque 0.6-1 N.m IEC 60947-1

Time Delay Type without

Utilisation Category AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Vibration Resistance 0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Weight 3.88 oz

Width 22.5 mm

[Uimp] Rated Impulse Withstand Voltage 5 kV 1.2/50ÃÂµs IEC 60255-27

[Ui] Rated Insulation Voltage 250 V IEC 60664-1

[Us] Rated Supply Voltage 24...240 V AC/DC 50/60 Hz
