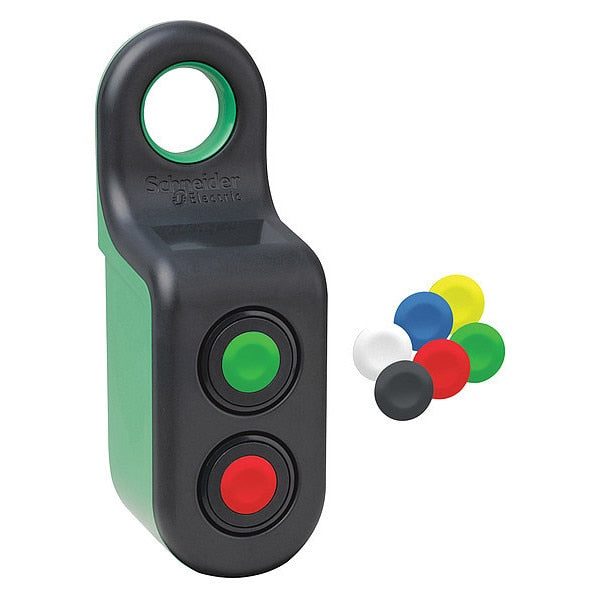

Wireless Handy Box, 3mW, Plastic, 6.42

SKU
Brand Schneider Electric
Categories
Description Wireless Handy Box, For Use With ZBRT1, ZBRT2 Wireless Transmitter, Mobile and Static Applications, Power Rating 3mW, Material Plastic, Overall Length 6.42 In., Mast Diameter 0.87 In., Color Green, Standards EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-1, Features Wireless, No Battery Needed, Handy Box With 1 Double and 1 Simple Action Button
graingerSKU: 54ZY80, mscSKU: , zoro_no: G8713465, mongo_id: 65bbe7283aaddbd5a9079dec

Web Price

$441.55 / each

Qty

Product Details

Accessory Type Wireless Handy Box

Acquisition Time 2 ms

Ambient Air Temperature For Operation -25-55 ÃÂ°C

Ambient Air Temperature For Storage -40-70 ÃÂ°C

Bezel Material plastic

Color Green

Communication Port Protocol Zigbee green power 2.4 GHz

Contact Operation 1 simple and double action UP/DOWN push-buttons

Country of Origin (subject to change) France

Electromagnetic Compatibility electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80...3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000...6000 MHz, distance = 20 m) IEC 61000-4-3

Emission Power 3 mW

Features Wireless, No Battery Needed, Handy Box With 1 Double and 1 Simple Action Button

Fixing Collar Material plastic

For Use With ZBRT1, ZBRT2 Wireless Transmitter, Mobile and Static Applications

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP65 IEC 60529 front face) || IP65 UL Type 12 front face)

Kit Composition 1 transmitter || 1 set of caps || 1 handy box || 2 push-button head 22 mm || 2 fixing collars

Mast Diameter 0.87

Material Plastic

Maximum Sensing Distance 100 m in free field || 25 m transmitter in the handy box and receiver in a metal enclosure || 300 m transmitter in the handy box, receiver in metal enclosure and use relay-antenna

Mechanical Durability 400000 cycles

Mechanical Robustness free fall resistance 1000 mm EN/IEC 60068-2-32

Mounting Diameter 22 mm

Operating Force 25 N C/O changing electrical state

Operating Travel 4.3 mm total travel)

Operator Additional Information set of caps

Operator Profile flush

Overall Length 6.42

Package Quantity 1

Power Rating 3mW

Product Certifications CSA || UL || CCC || C-tick || BT 2006/95/EC || EAC

Product Or Component Type wireless and batteryless transmitter

Relative Humidity 95-95 % 70-70 ÃÂ°C without condensation

Response Time < 2 ms

Shape Of Signaling Unit Head round

Shock Resistance 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards EN/IEC 60947-5-1, CSA C22.2 No 14, UL 508, EN/IEC 60947-1

Type Of Operator spring return push-button with transmitter

Vibration Resistance 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
