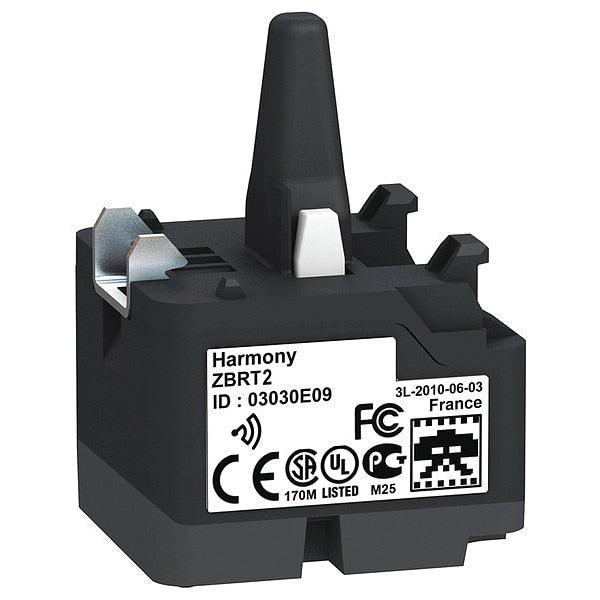

Wireless Transmitter Pushbutton, 43mm L

SKU
Brand Schneider Electric
Categories
Description Electrical Components
graingerSKU: 55WY31, mscSKU: , zoro_no: G3613566, mongo_id: 65bbe80e22d7a989a98d42f1

Web Price

$124.49 / each

Qty

Product Details

Accessory Type Wireless and Batteryless Transmitter Pushbutton

Acquisition Time 2 ms

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Antenna Gain 0 dBi

Antenna Type omnidirectional

Bandwidth 5-5 MHz

Bezel Material plastic

Cable Length Not Applicable

Cad Overall Depth 43 mm

Cad Overall Height 41.5 mm

Cad Overall Width 30 mm

Color Black

Communication Port Protocol Zigbee green power 2.4 GHz IEEE 802.15.4

Country of Origin (subject to change) France

Device Short Name XB5R

Electrical Composition Code PW1

Electromagnetic Compatibility electrostatic discharge immunity test 8 kV in free air (in insulating parts)) IEC 61000-4-2 || electrostatic discharge immunity test 4 kV on contact (on metal parts)) IEC 61000-4-2 || susceptibility to electromagnetic fields 20 V/m 80 to 3000 MHz) IEC 61000-4-3 || susceptibility to electromagnetic fields 6 V/m 3000 to 6000 MHz, distance = 20 m) IEC 61000-4-3

Embedding Depth 42 mm

Features Batteryless Transmitter, Mercury free, Wireless

Fixing Mode fixing nut beneath head 2-2.4 N.m

For Use With Harmony XB5R Series

Ik Degree Of Protection IK03 IEC 50102

Ip Degree Of Protection IP30 IEC 60529 back face)

Level Or Class 5M00G7W

Material Plastic

Max Power Consumption In W 1 mW

Maximum Sensing Distance 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna

Mechanical Durability 400000 cycles

Mechanical Robustness free fall resistance 1000 mm EN/IEC 60068-2-32

Modulation Technique O-QPSK

Mounting Diameter 22 mm

Number Of Channels 16

Operating Force 10 N C/O changing electrical state

Operating Travel 4.3 mm total travel)

Overall Length 43 mm

Package Quantity 1

Power Rating 1mW

Product Certifications CSA || CCC || UL || GOST || C-tick || BT 2006/95/EC

Product Or Component Type wireless and batteryless transmitter

Radio Agreement ANATEL || ARIB T66 || FCC || ICASA || RSS

Relative Humidity 95-95 % -40-70ÃÂ°C without condensation

Response Time < 2 ms

Shock Resistance 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, UL 508

Transmission Frequency 2405 MHz

Vibration Resistance 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
