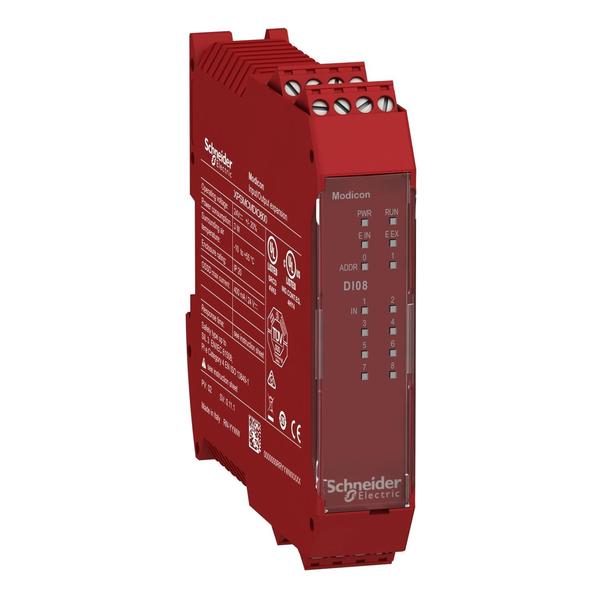

With Te Screw Modules Inputs Expansion 8

SKU
Brand Schneider Electric
Categories
Description With Te Screw Modules Inputs Expansion 8

Web Price

$397.49 / each

Qty

Product Details

Ambient Air Temperature For Operation -10-55ÃÂ°C

Ambient Air Temperature For Storage -20-85ÃÂ°C

Cable Cross Section 0.2-1.5 mmÃÂ² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mmÃÂ² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mmÃÂ² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mmÃÂ² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mmÃÂ² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mmÃÂ² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mmÃÂ² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mmÃÂ² - AWG 24...AWG 14 solid without cable end

Connections - Terminals 2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block

Country of Origin (subject to change) Italy

Depth 22.5 mm

Device Short Name XPSMCM

Discrete Input Type PNP

Discrete Input Voltage 24 V DC

Discrete Output Type PNP

Electrical Connection screw terminal

Electromagnetic Compatibility electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80...1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz...2 GHz) EN/IEC 61000-4-3

Function Of Module monitoring safety detection discrete input || monitoring safety dialogue discrete input

Height 99 mm

Insulation 250 V AC between power supply and housing EN/IEC 61800-5-1

Integrated Connection Type backplane expansion bus

Ip Degree Of Protection IP20 enclosure)

Local Signalling 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status

Mounting Support omega 35 mm DIN rail EN 50022

Number Of Inputs 8 digital

Number Of Outputs 4 test line control

Number Of Terminal Blocks 4

Overvoltage Category II

Package Quantity 1

Pollution Degree 2

Power Consumption In W 3 W

Power Dissipation In W 3 W

Product Certifications RCM || cULus || TUV

Product Or Component Type safe input expansion module

Quality Labels CE
