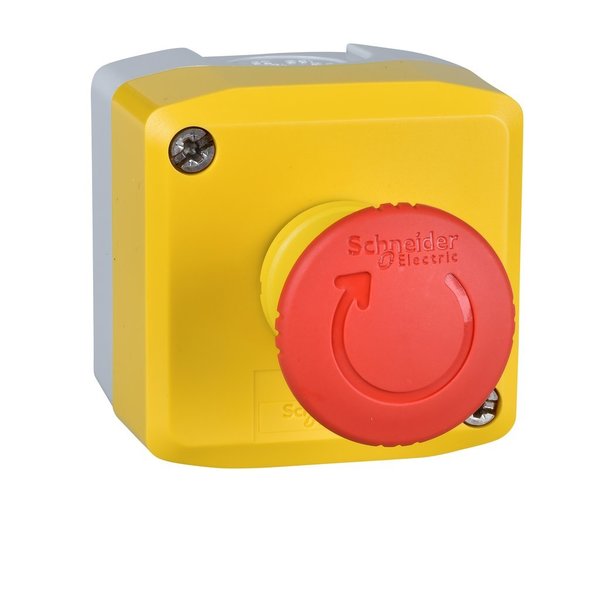

Yellow station-1 red mushroom head pus

SKU
Brand Schneider Electric
Categories
Description Yellow station - 1 red mushroom head pus
graingerSKU: , mscSKU: , zoro_no: G4053908, mongo_id: 65bbe97422d7a989a9957afa

Web Price

$169.99 / each

Qty

Product Details

Ambient Air Temperature For Operation -40-70ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Cable Entry 1 knock-out for cable entry 0-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm

Colour Of Base Of Enclosure light grey RAL 7035)

Colour Of Cover yellow RAL 1021)

Connections - Terminals screw clamp terminals, <= 2 x 1.5 mmÃÂ² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÃÂ² without cable end EN/IEC 60947-1

Contact Operation slow-break

Contacts Material silver alloy (Ag/Ni)

Control Station Application emergency switching off function || emergency stop function

Control Station Composition 1 mushroom head ÃÂ 40 mm push-button, red 1 NO + 1 NC unmarked

Country of Origin (subject to change) United States

Device Short Name XALK

Electrical Durability 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Electrical Reliability ÃÂ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 || ÃÂ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4

Ik Degree Of Protection IK03 EN 50102

Ip Degree Of Protection IP66 IEC 60529 || IP67 || IP69 || IP69K

Material polycarbonate

Mechanical Durability 300000 cycles

Nema Degree Of Protection NEMA 13 || NEMA 4X

Operating Force 44 N NC + NO changing electrical state

Operating Travel 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Operator Profile 1 mushroom head push-button

Operators Description red unmarked 1 NO + 1 NC

Overvoltage Category class II IEC 60536

Package Quantity 1

Positive Opening with EN/IEC 60947-5-1 appendix K

Product Destination for XB5 ÃÂ 22 mm control and signalling units

Product Or Component Type complete control station

Protective Treatment TH

Reset turn to release

Resistance To High Pressure Washer 7000000 Pa 55ÃÂ°C 0.1 m

Shape Of Screw Head cross Philips no 1 || cross pozidriv No 1 || slotted flat ÃÂ 4 mm || slotted flat ÃÂ 5.5 mm

Shock Resistance 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1

Standards EN/IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-5-5 || EN/ISO 13850 || EN/IEC 60947-5-1 || JIS C 4520 || IEC 60364-5-53 || EN/IEC 60947-1 || EN/IEC 60204-1

Tightening Torque 0.8-1.2 N.m EN/IEC 60947-1

Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6

[Ie] Rated Operational Current 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1

[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1

[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
