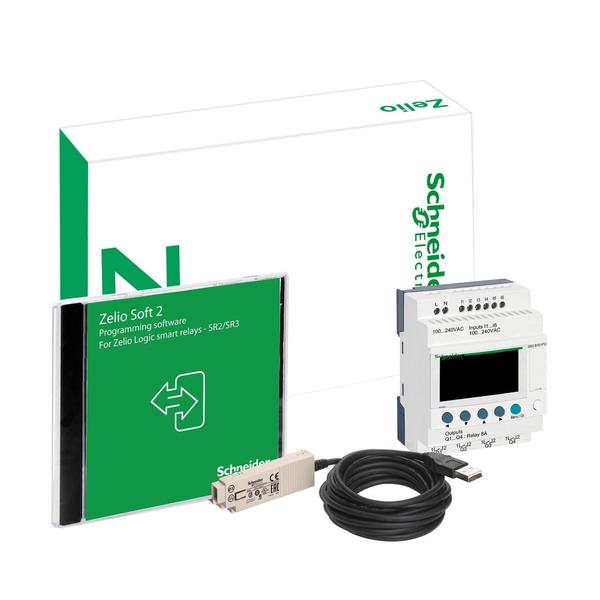

Zelio Sr3Pack Modular 10 Io 100240Vac

SKU
Brand Schneider Electric
Categories
Description Zelio Sr3Pack Modular 10 Io 100240Vac
graingerSKU: , mscSKU: , zoro_no: G0862541, mongo_id: 65bbe6083aaddbd5a90023f4

Web Price

$471.24 / each

Qty

Product Details

Accessory Type Zelio Sr3Pack Modular 10 Io 100240Vac

Ambient Air Temperature For Operation -20-40 ÃÂ°C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 ÃÂ°C IEC 60068-2-1 and IEC 60068-2-2

Ambient Air Temperature For Storage -40-70 ÃÂ°C

Backup Time 10 years 25 ÃÂ°C

Checks program memory on each power up

Clock with

Clock Drift 12 min/year 0-55 ÃÂ°C || 6 s/month 25-25 ÃÂ°C

Coil Volts 100 to 240VAC

Connections - Terminals screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) semi-solid || screw terminals, 1 x 0.2 to 1 x 2.5 mmÃÂ² AWG 25 to AWG 14) solid || screw terminals, 1 x 0.25 to 1 x 2.5 mmÃÂ² AWG 24 to AWG 14) flexible with cable end || screw terminals, 2 x 0.2 to 2 x 1.5 mmÃÂ² AWG 24 to AWG 16) solid || screw terminals, 2 x 0.25 to 2 x 0.75 mmÃÂ² AWG 24 to AWG 18) flexible with cable end

Contacts Type And Composition NO relay output

Country of Origin (subject to change) France

Current State 0 Guaranteed <= 0.5 mA discrete input)

Current State 1 Guaranteed >= 0.17 mA discrete input)

Cycle Time 6-90 ms

Discrete Input Current 0.6 mA

Discrete Input Frequency 47 to 53 Hz || 57 to 63 Hz

Discrete Input Number 6

Discrete Input Voltage 100 to 240 V AC

Disturbance Radiated/Conducted class B EN 55022-11 group 1

Electrical Durability AC-12 500000 cycles 230 V, 1.5 A relay output EN/IEC 60947-5-1 || AC-15 500000 cycles 230 V, 0.9 A relay output EN/IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output EN/IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output EN/IEC 60947-5-1

Environmental Characteristic EMC directive EN/IEC 61000-6-2 || EMC directive EN/IEC 61000-6-3 || EMC directive EN/IEC 61000-6-4 || EMC directive EN/IEC 61131-2 zone B || low voltage directive EN/IEC 61131-2

Immunity To Microbreaks 10 ms

Input Impedance 350 kOhm discrete input

Input/Output Number 10

Ip Degree Of Protection IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)

Isolation Voltage 1780 V

Kit Composition SR3B101FU || cable PC SR2USB01 for connection to PC

Local Display with

Maximum Altitude Transport 3048 m

Maximum Supply Current 30 mA 240 V without extension) || 40 mA 240 V with extensions) || 80 mA 100 V with extensions) || 80 mA 100 V without extension)

Mechanical Durability 10000000 cycles relay output

Number of outputs 4 relay

Number Or Control Scheme Lines 120-120 ladder || 0-200 FBD

Operating Altitude 6561.68 ft (2000 m)

Operating Rate In Hz 0.1 Hz at Ie)relay output || 10 Hz no load)relay output

Output Thermal Current 8 A for all 4 outputs relay output

Output Voltage Limits 5 to 30 V DC relay output) || 24 to 250 V AC

Overvoltage Category III EN/IEC 60664-1

Package Quantity 1

Pollution Degree 2 EN/IEC 61131-2

Power Consumption In Va 12 VA with extensions || 7 VA without extension

Product Certifications GOST || C-tick || GL || CSA || UL

Product Or Component Type modular discovery packs

Protection Type against inversion of terminals (control instructions not executed)

Rated Impulse Withstand Voltage 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1

Relative Humidity 95-95 % without condensation or dripping water

Response Time 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50 to 255 ms FBD from state 0 to state 1)discrete input || 50 to 255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output

Standards EN/IEC 61000-4-2 level 3 || EN/IEC 61000-4-4 level 3 || EN/IEC 61000-4-12 || EN/IEC 61000-4-5 || EN/IEC 61000-4-11 || EN/IEC 61000-4-3 || EN/IEC 61000-4-6 level 3 || EN/IEC 60068-2-6 Fc || EN/IEC 60068-2-27 Ea

Supply Frequency 50/60 Hz

Supply Voltage Limits 85-264 V

Switching Capacity In Ma >= 10 mA 12 V relay output)

Tightening Torque 0.5 N.m

Voltage State 0 Guaranteed <= 40 V discrete input

Voltage State 1 Guaranteed >= 79 V discrete input

[Uimp] Rated Impulse Withstand Voltage 4 kVEN/IEC 60947-1 and EN/IEC 60664-1

[Us] Rated Supply Voltage 100 to 240 V
