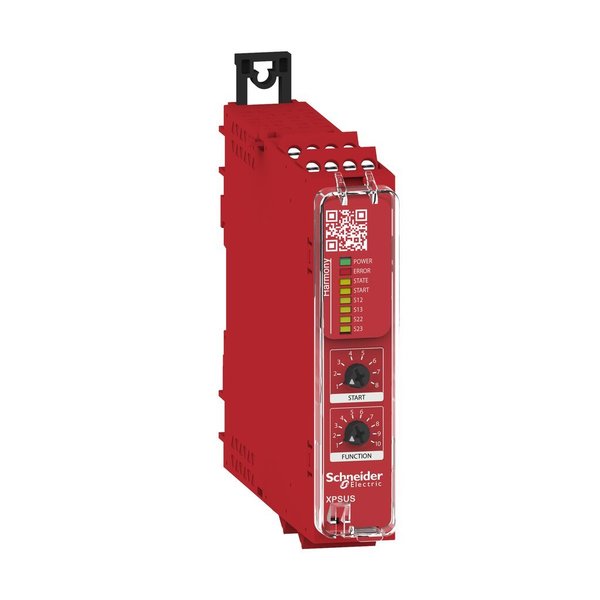

Force, DIN Rail, 4.72" D, 3.94" H, 0.89"W, 2W

SKU
Brand Schneider
Categories
Description Force, Delay Time 0.5 sec, 2 sec, 4 sec, Delay Type Adjustable, Electrical Connection Screw Terminal, Terminal Block Removable, IP Rating IP20; IP40; IP54, Input Voltage 24V AC/DC, Mounting Style DIN Rail, Number of Inputs 2, Response Time 20 msec, Standards CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified, Contact Rating (AC) 1 A @ 15V (NC), 3 A @ 1V (NC), 3 A @ 15V (NO), 5 A @ 1V (NO)
graingerSKU: 787KW0, mscSKU: , zoro_no: G603529103, mongo_id: 65bbe98f22d7a989a99612b9

Web Price

$428.74 / each

Qty

Product Details

AC Contact Rating - Relay 1 A AC-15, 3 A AC-1, 3 A AC-15, 5 A AC-1

Ambient Air Temperature For Storage -25-85ÃÂ°C

Application Emergency Stops

Associated Fuse Rating 10 A gG NO relay output circuit IEC 60947-1

Auxiliary Contact Composition 2 NO

Body Depth 4.72 in

Body Depth - Relay 4.72 in

Body Height 3.94 in

Body Height - Relay 3.94 in

Body Width 0.89 in

Body Width - Relay 0.89 in

Connections - Terminals removable screw terminal block, 0.2...2.5 mmÃÂ² solid or flexible || removable screw terminal block, 0.25...2.5 mmÃÂ² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mmÃÂ² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mmÃÂ² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mmÃÂ² flexible with ferrule with cable end, with bezel

Contact Rating (AC) 1 A @ 15V (NC), 3 A @ 1V (NC), 3 A @ 15V (NO), 5 A @ 1V (NO)

Contact Rating (DC) 1 A @ 13V (NC), 3 A @ 1V (NC), 3 A @ 13V (NO), 5 A @ 1V (NO)

Country of Origin (subject to change) Indonesia

DC Contact Rating - Relay 5 A DC-1; 3 A DC-13; 3 A DC-1; 1 A DC-13

Delay Time 0.5 sec, 2 sec, 4 sec

Delay Time - Relay Sync time between inputs: 0.5s 2s 4 s

Delay Type Adjustable

Depth 120 mm

Electrical Circuit Type NC pair || PNP pair || antivalent pair || OSSD pair

Electrical Connection Screw Terminal, Terminal Block Removable

Electrical Connection - Relay Screw Terminal, Terminal Block Removable

Electrical Connection Type Screw

Environmental Protection Dust & Splash Resistant

For Use With Emergency Stop, Guard Switch, Magnetic Switch, PNP Sensors, Proximity Safety Switch, RFID Safety Switch, Safety Light Curtain, Two Hand Control Station or Enabling Switch

Frequency 50/60 Hz

Function Of Module emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || enabling switch monitoring || proximity sensor monitoring || monitoring two-hand control station

Height 100 mm

Input Compatibility normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || two-hand control EN 574/ISO 13851-III A || two-hand control EN 574/ISO 13851-III C || 3-wire proximity sensors PNP

Input Power Consumption (Burden) 2 W

Input Protection Type internal, electronic

Input Voltage 24V AC/DC

Input/Output Type semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related

Ip Degree Of Protection IP20 terminals)EN/IEC 60529 || IP40 housing)EN/IEC 60529 || IP54 mounting area)EN/IEC 60529

IP Rating IP20; IP40; IP54

Local Signalling for power ON LED (green) || for error LED (red) || for safety output status LED (yellow) || for start input LED (yellow) || for safety input S12 LED (yellow) || for safety input S13 LED (yellow) || for safety input S22 LED (yellow) || for safety input S23 LED (yellow)

Maximum Line Resistance 500 Ohm

Maximum Operating Temperature 185 Degrees F

Maximum Response Time On Input Open 20 ms

Minimum Operating Temperature -13 Degrees F

Minimum Output Current 10 mA relay output

Minimum Output Voltage 12 V relay output

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Mounting Support 35 mm symmetrical DIN rail

Number of Input Channels 2

Number of Inputs 2

Number Of Outputs 3 on/off configurable pulsed output

Overall Depth 3.9 in

Overall Height - Relay 3.94 in

Package Quantity 1

Power Consumption 2 W

Power Consumption In Va 5.0 VA 24 V AC 50/60 Hz

Power Consumption In W 2 W 24 V DC

Product Certifications TUV || cULus

Product Or Component Type safety module

Relative Humidity 5-95 % non-condensing

Relay Mounting Style DIN-Rail

Response Time 20 msec

Safety Level can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061 || can reach SIL 3 IEC 61508

Safety Module Application for electrical monitoring of two-hand control stations || monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring || for enabling switch monitoring

Safety Module Name XPSUS

Safety Reliability Data Dcavg Greater Than= 99% Conforming to ISO 13849-1, HFT = 1 Conforming to IEC 61508-1, HFT = 1 Conforming to IEC 62061, MTTFd Greater Than 30 years Conforming to ISO 13849-1, PFHd = 1.13E-09 Conforming to IEC 61508-1, PFHd = 1.13E-09 Conforming to IEC 62061, PFHd = 1.13E-09 Conforming to ISO 13849-1, SFF Greater Than 99% Conforming to IEC 61508-1, SFF Greater Than 99% Conforming to IEC 62061, Type = B Conforming to IEC 61508-1

Standards CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified

Synchronisation Time Between Inputs 0.5 s || 2 s || 4 s

Type Of Start automatic/manual/monitored

Weight 7.05 oz

Width 22.5 mm

[Ie] Rated Operational Current 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact

[Ith] Conventional Free Air Thermal Current 8A

[Uimp] Rated Impulse Withstand Voltage 4 kV II EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 2)EN/IEC 60947-1

[Us] Rated Supply Voltage 24 V AC - 15...10 % || 24 V DC - 20...20 %
