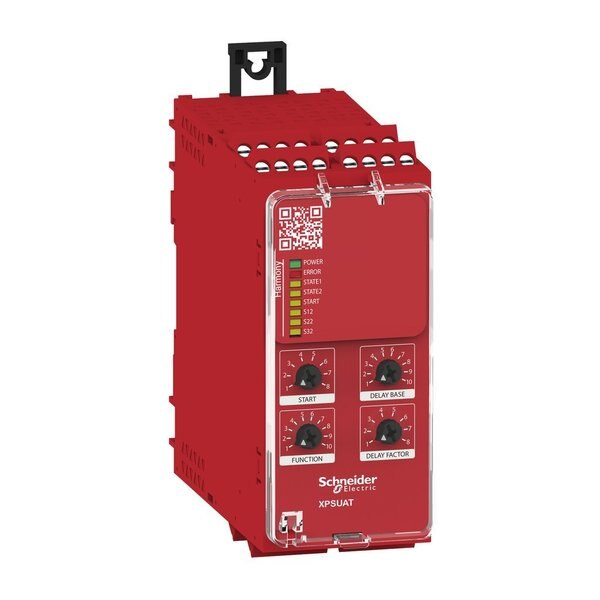

Force, DIN Rail, 4.72" D, 3.94" H, 1.77"W, 3W

SKU
Brand Schneider
Categories
Description Force, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -13 Degrees F
graingerSKU: 787KV9, mscSKU: , zoro_no: G203529121, mongo_id: 65bbe94522d7a989a9944703

Web Price

$686.24 / each

Qty

Product Details

AC Contact Rating - Relay 1 A AC-15, 3 A AC-1, 3 A AC-15, 5 A AC-1

Ambient Air Temperature For Storage -25-85ÃÂ°C

Associated Fuse Rating 10 A gG NO relay output circuit IEC 60947-1

Auxiliary Contact Composition 1 NC configurable || 3 NO configurable || 3 NO immediate

Body Depth - Relay 4.72 in

Body Height - Relay 3.94 in

Body Width - Relay 1.77 in

Connections - Terminals removable screw terminal block, 0.2...2.5 mmÃÂ² solid or flexible || removable screw terminal block, 0.25...2.5 mmÃÂ² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mmÃÂ² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mmÃÂ² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mmÃÂ² flexible with ferrule with cable end, with bezel

Country of Origin (subject to change) Indonesia

DC Contact Rating - Relay 5 A DC-1; 3 A DC-13; 3 A DC-1; 1 A DC-13

Delay Time - Relay Sync time between inputs: 0.5s 2s 4 s

Depth 120 mm

Electrical Circuit Type NC pair || PNP pair || antivalent pair || OSSD pair

Electrical Connection - Relay Screw Terminal, Terminal Block Removable

Electrical Connection Type Screw

Environmental Protection Dust & Splash Resistant

Function Of Module emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || sensing mat/edges || proximity sensor monitoring || monitoring 1 PNP + 1 NPN sensor

Height 100 mm

Input Compatibility normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP

Input Power Consumption (Burden) 3 W

Input Protection Type internal, electronic

Input/Output Type semiconductor output 24 V DC, 20 mA Z2, not safety-related || pulsed output for diagnostics 24 V DC, 20 mA Z1, not safety-related

Ip Degree Of Protection IP54 mounting area)EN/IEC 60947-1 || IP40 housing)EN/IEC 60947-1 || IP20 terminals)EN/IEC 60947-1

Maximum Line Resistance 500 Ohm

Maximum Operating Temperature 185 Degrees F

Maximum Response Time On Input Open 20 ms

Minimum Operating Temperature -13 Degrees F

Minimum Output Current 20 mA relay output

Minimum Output Voltage 24 V relay output

Mounting - Relay DIN Rail

Mounting Support 35 mm symmetrical DIN rail

Number Of Inputs 2 positive safety input 24 V DC 8 || 1 negative safety input

Number Of Outputs 4 on/off configurable pulsed output

Overall Height - Relay 3.94 in

Package Quantity 1

Power Consumption In Va 6.5 VA 24 V AC 50/60 Hz

Power Consumption In W 3 W 24 V DC

Product Certifications TUV || cULus

Product Or Component Type safety module

Rated Impulse Withstand Voltage 4 kV II IEC 60947-1

Rated Insulation Voltage 250 V 2)IEC 60947-1

Rated Operational Current 5 A AC-1 for normally open relay contact; 3 A AC-15 for normally open relay contact; 5 A DC-1 for normally open relay contact; 3 A DC-13 for normally open relay contact; 3 A AC-1 for normally closed relay contact; 1 A AC-15 for normally closed relay contact; 3 A DC-1 for normally closed relay contact; 1 A DC-13 for normally closed relay contact

Rated Supply Voltage 24 V AC - 15 to 10%; 24 V DC - 20 to 20%

Relative Humidity 5-95 % non-condensing

Relay Mounting Style DIN-Rail

Safety Inputs 2 positive safety input 24 V DC 8 mA; 1 negative safety input

Safety Level can reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508

Safety Module Application monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring || monitoring of pressure-sensitive 4-wire protective devices

Safety Module Name XPSUAT

Safety Outputs 1 NC configurable; 3 NO configurable; 3 NO immediate

Standards IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard

Synchronisation Time Between Inputs 0.5 s || 2 s || 4 s

Time Delay Range 0...900 s off

Type Of Start automatic/manual/monitored

Width 45 mm

[Ie] Rated Operational Current 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact

[Ith] Conventional Free Air Thermal Current 16 A

[Uimp] Rated Impulse Withstand Voltage 4 kV II EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 2)EN/IEC 60947-1

[Us] Rated Supply Voltage 24 V AC - 15...10 % || 24 V DC - 20...20 %
