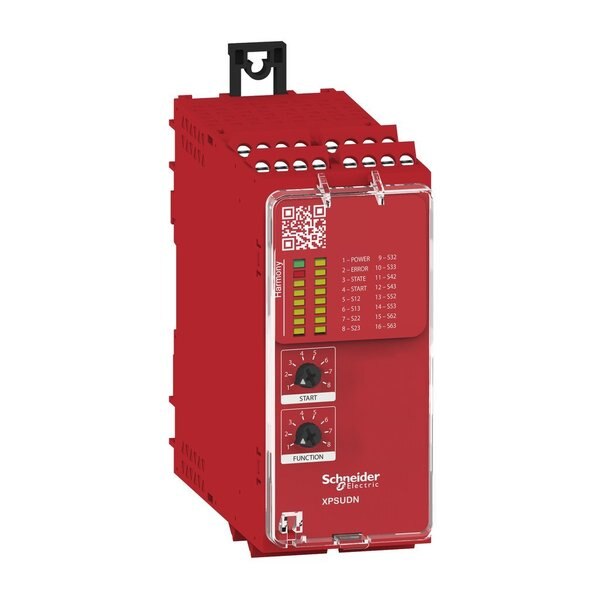

Force, DIN Rail, 4.72"D, 3.94"H, 1.77"W, 4.5W

SKU
Brand Schneider
Categories
Description Force, Delay Time 0.5 sec, 2 sec, 4 sec, Delay Type Adjustable, Electrical Connection Screw Terminal, Terminal Block Removable, IP Rating IP20; IP40; IP54, Input Voltage 24V AC/DC, Mounting Style DIN Rail, Response Time 20 msec, Standards CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified, Contact Rating (AC) 1 A @ 15V (NC), 3 A @ 1V (NC), 3 A @ 15V (NO), 5 A @ 1V (NO), Contact Rating (DC) 1 A @ 13V (NC), 3 A @ 1V (NC), 3 A @ 13V (NO), 5 A @ 1V (NO)
graingerSKU: 787KW1, mscSKU: , zoro_no: G003529055, mongo_id: 65bbe76d3aaddbd5a909409a

Web Price

$513.74 / each

Qty

Product Details

AC Contact Rating - Relay 1 A AC-15, 3 A AC-1, 3 A AC-15, 5 A AC-1

Ambient Air Temperature For Operation -25-50ÃÂ°C at 24 V AC || -25-55ÃÂ°C at 24 V DC

Ambient Air Temperature For Storage -25-85ÃÂ°C

Application Emergency Stops

Associated Fuse Rating 10 A gG NO relay output circuit IEC 60947-1 || 4 A gG NC relay output circuit IEC 60947-1

Auxiliary Contact Composition 3 NO + 1 NC

Body Depth 4.72 in

Body Depth - Relay 4.72 in

Body Height 3.94 in

Body Height - Relay 3.94 in

Body Width 1.77 in

Body Width - Relay 1.77 in

Connections - Terminals removable screw terminal block, 0.2...2.5 mmÃÂ² solid or flexible || removable screw terminal block, 0.25...2.5 mmÃÂ² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mmÃÂ² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mmÃÂ² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mmÃÂ² flexible with ferrule with cable end, with bezel

Contact Rating (AC) 1 A @ 15V (NC), 3 A @ 1V (NC), 3 A @ 15V (NO), 5 A @ 1V (NO)

Contact Rating (DC) 1 A @ 13V (NC), 3 A @ 1V (NC), 3 A @ 13V (NO), 5 A @ 1V (NO)

Country of Origin (subject to change) Indonesia

DC Contact Rating - Relay 5 A DC-1; 3 A DC-13; 3 A DC-1; 1 A DC-13

Delay Time 0.5 sec, 2 sec, 4 sec

Delay Time - Relay Sync time between inputs: 0.5s 2s 4 s

Delay Type Adjustable

Depth 120 mm

Electrical Circuit Type NC pair || PNP pair || antivalent pair || OSSD pair

Electrical Connection Screw Terminal, Terminal Block Removable

Electrical Connection - Relay Screw Terminal, Terminal Block Removable

Electrical Connection Type Screw

Environmental Protection Dust & Splash Resistant

For Use With Guard Switch, Magnetic Switch, Monitoring Emergency Stop, PNP Sensors, Proximity Safety Switch, RFID Safety Switch or Safety Light Curtain

Frequency 50/60 Hz

Function Of Module emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || proximity sensor monitoring

Height 100 mm

Input Compatibility normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP

Input Power Consumption (Burden) 4.5 W

Input Protection Type internal, electronic

Input Voltage 24V AC/DC

Input/Output Type semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related

Ip Degree Of Protection IP20 terminals)EN/IEC 60947-1 || IP40 housing)EN/IEC 60947-1 || IP54 mounting area)EN/IEC 60947-1

IP Rating IP20; IP40; IP54

Local Signalling for power ON LED (green) || for error LED (red) || for start LED (yellow) || for safety status LED (yellow) || for safety input S12 LED (yellow) || for safety input S13 LED (yellow) || for safety input S22 LED (yellow) || for safety input S23 LED (yellow) || for safety input S32 LED (yellow) || for safety input S33 LED (yellow) || for safety input S42 LED (yellow) || for safety input S43 LED (yellow) || for safety input S52 LED (yellow) || for safety input S53 LED (yellow) || for safety input S62 LED (yellow) || for safety input S73 LED (yellow)

Maximum Line Resistance 500 Ohm

Maximum Operating Temperature 185 Degrees F

Maximum Response Time On Input Open 20 ms

Minimum Operating Temperature -13 Degrees F

Minimum Output Current 10 mA relay output

Minimum Output Voltage 12 V relay output

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Mounting Support 35 mm symmetrical DIN rail

Number of Input Channels 6

Number Of Inputs 6 safety input 24 V DC 5

Number Of Outputs 7 on/off configurable pulsed output

Overall Depth 3.9 in

Overall Height - Relay 3.94 in

Package Quantity 1

Power Consumption 4.5 W

Power Consumption In Va 10.5 VA 24 V AC 50/60 Hz

Power Consumption In W 4.5 W 24 V DC

Product Certifications TUV || cULus

Product Or Component Type safety module

Rated Operational Current 5 A AC-1 for normally open relay contact; 3 A AC-15 for normally open relay contact; 5 A DC-1 for normally open relay contact; 3 A DC-13 for normally open relay contact; 3 A AC-1 for normally closed relay contact; 1 A AC-15 for normally closed relay contact; 3 A DC-1 for normally closed relay contact; 1 A DC-13 for normally closed relay contact

Rated Supply Voltage 24 V AC - 15 to 10%; 24 V DC - 20 to 20%

Relative Humidity 5-95 % non-condensing

Relay Mounting Style DIN-Rail

Response Time 20 msec

Safety Inputs 6 safety input 24 V DC 5 mA

Safety Level can reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508

Safety Module Application monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring

Safety Module Name XPSUDN

Safety Reliability Data Dcavg Greater Than= 99% Conforming to ISO 13849-1, HFT = 1 Conforming to IEC 61508-1, HFT = 1 Conforming to IEC 62061, MTTFd Greater Than 30 years Conforming to ISO 13849-1, PFHd = 0.88E-09 Conforming to IEC 61508-1, PFHd = 0.88E-09 Conforming to IEC 62061, PFHd = 0.88E-09 Conforming to ISO 13849-1, SFF Greater Than 99% Conforming to IEC 61508-1, SFF Greater Than 99% Conforming to IEC 62061, Type = B Conforming to IEC 61508-1

Standards CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified

Synchronisation Time Between Inputs 0.5 s || 2 s || 2.2 s || 4 s

Type Of Start automatic/manual/monitored

Weight 12.35 oz

Width 45 mm

[Ie] Rated Operational Current 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact

[Ith] Conventional Free Air Thermal Current 16 A

[Uimp] Rated Impulse Withstand Voltage 4 kV II EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 2)EN/IEC 60947-1

[Us] Rated Supply Voltage 24 V AC - 15...10 % || 24 V DC - 20...20 %
