Home / Manual Motor Starter, Knob, 6 to 10A, 3P

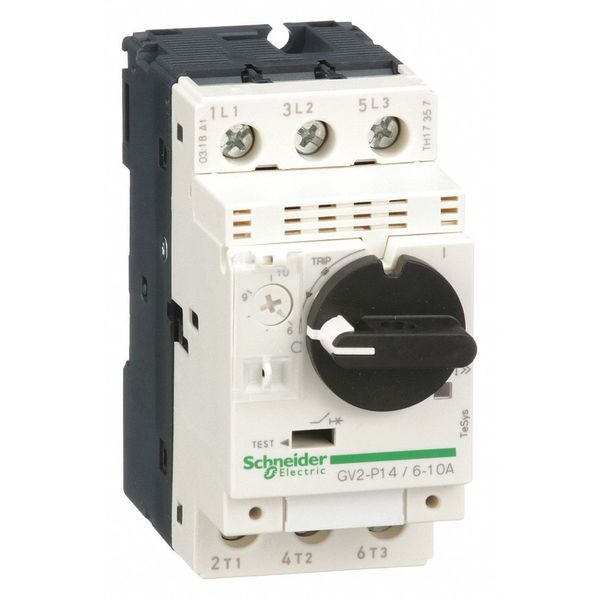

Manual Motor Starter, Knob, 6 to 10A, 3P

SKU
Brand Schneider
Categories
Description Manual Motor Starter, NEMA Size Not Applicable, Horsepower @ Single Phase - 120V AC 1/2 hp, Horsepower @ Single Phase - 240V AC 1 1/2 hp, Maximum Voltage Rating 600V AC, Number of Poles 3, Operator Selector Switch, Phase Three, Current AC 10 A, Horsepower @ Three Phase - 208V AC 2 hp, Horsepower @ Three Phase - 240V AC 3 hp, Horsepower @ Three Phase - 480V AC 5 hp, Series TeSys Deca, Horsepower @ Three Phase - 600V AC 7 1/2 hp, Maximum Overload Relay Current Setting 10 A
graingerSKU: 2MNJ8, mscSKU: 58134008, zoro_no: G2632962, mongo_id: 65bbe7769a749db82273cd29

Web Price

$331.24 / each

Qty

Product Details

Ambient Air Temperature For Operation -20-60ÃÂ°C

Ambient Air Temperature For Storage -40-80ÃÂ°C

Breaking Capacity 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2

Climatic Withstand IACS E10

Color dark grey

Control Type rotary handle

Country of Origin (subject to change) Multiple

Current AC 10 A

Depth 3.83 in

Description/Special Features Reliable Overload Protection

Device Application motor protection

Device Short Name GV2P

Electrical Durability 100000 cycles AC-3 415 V In

Electrical Operating Durability 100,000

Enclosure NEMA Rating No Enclosure

Fire Resistance 960ÃÂ°C IEC 60695-2-11

Fixing Mode 35 mm symmetrical DIN rail clipped || panel screwed with 2 x M4 screws)

Frequency 50/60 Hz

Height 3.5 in

Horsepower @ Single Phase - 120V AC 1/2 hp

Horsepower @ Single Phase - 240V AC 1 1/2 hp

Horsepower @ Three Phase - 208V AC 2 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 5 hp

Horsepower @ Three Phase - 600V AC 7 1/2 hp

HP @ 1 Phase - 120V 1/2 hp

HP @ 1 Phase - 230V 1 1/2 hp

HP @ 3 Phase - 208V 2 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 460-575V 5/7.5

HP @ 3 Phase - 480V 5 hp

HP @ 3 Phase - 575V 7 1/2 hp

Ik Degree Of Protection IK04

Includes Pilot Light No

Ip Degree Of Protection IP20 IEC 60529

IP Rating IP20

Line Rated Current 10A

Magnetic Tripping Current 138-138 A

Max. Voltage 600V AC

Maximum Operating Temperature 140 Degrees F

Maximum Overload Relay Current Setting 10 A

Maximum Voltage Rating 600V AC

Mechanical Durability 100000 cycles

Mechanical Operating Durability 100,000

Mechanical Robustness shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz

Minimum Operating Temperature -4 Degrees F

Minimum Overload Relay Current Setting 6 A

Motor Power Kw 3-3 kW 400/415 V AC 50/60 Hz || 5-5 kW 500 V AC 50/60 Hz || 5.5-5.5 kW 690 V AC 50/60 Hz

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Network Frequency 50/60 Hz IEC 60947-4-1

Network Type AC

Number of Poles 3

Operating Altitude 6561.68 ft (2000 m)

Operator Selector Switch

Overall Depth 3.82 in

Overall Height 3.5 in

Overall Width 1.77 in

Overload Protection Type Thermal

Overload Relay Amp Setting 6 to 10A

Package Quantity 1

Phase Three

Phase Failure Sensitivity yes IEC 60947-4-1

Phase Loss Sensitivity Yes

Pilot Light Yes

Poles Description 3P

Power Dissipation Per Pole 2.5 W

Product Certifications CCC || UL || CSA || EAC || ATEX || LROS (Lloyds register of shipping) || BV || RINA || DNV-GL || UKCA

Product Name TeSys GV2 || TeSys Deca

Product Or Component Type motor circuit breaker

Range TeSys Deca

Rated Duty continuous IEC 60947-4-1

Rated Service Short-Circuit Breaking Capacity 100% 230/240 V AC 50/60 Hz IEC 60947-2; 100% 400/415 V AC 50/60 Hz IEC 60947-2; 100% 440 V AC 50/60 Hz IEC 60947-2; 100% 500 V AC 50/60 Hz IEC 60947-2; 100% 690 V AC 50/60 Hz IEC 60947-2

Resistance Properties Fire Resistant

Series TeSys Deca

Standards ATEX Compliant, BV, CCC, CSA, DNV-GL, EAC, EN/IEC 60947-2, EN/IEC 60947-4, LROS, RINA, UKCA, UL Listed

Starter Style IEC

Status Indicator LED Indicator

Suitability For Isolation yes IEC 60947-1ÃÂ§ 7-1-6

Terminal Connection Type Screw Clamp Terminals

Thermal Protection Adjustment Range 6-10 A IEC 60947-4-1

Tightening Torque 1.7 N.m screw clamp terminal

Trip Unit Technology thermal-magnetic

Utilisation Category category A IEC 60947-2 || AC-3 IEC 60947-4-1

Width 1.75 in

[Ics] Rated Service Short-Circuit Breaking Capacity 100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 500 V AC 50/60 Hz IEC 60947-2 || 100 % 690 V AC 50/60 Hz IEC 60947-2

[Ith] Conventional Free Air Thermal Current 10 A IEC 60947-4-1

[Ue] Rated Operational Voltage 690 V AC 50/60 Hz IEC 60947-2

[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-2

[Ui] Rated Insulation Voltage 690 V AC 50/60 Hz IEC 60947-2
