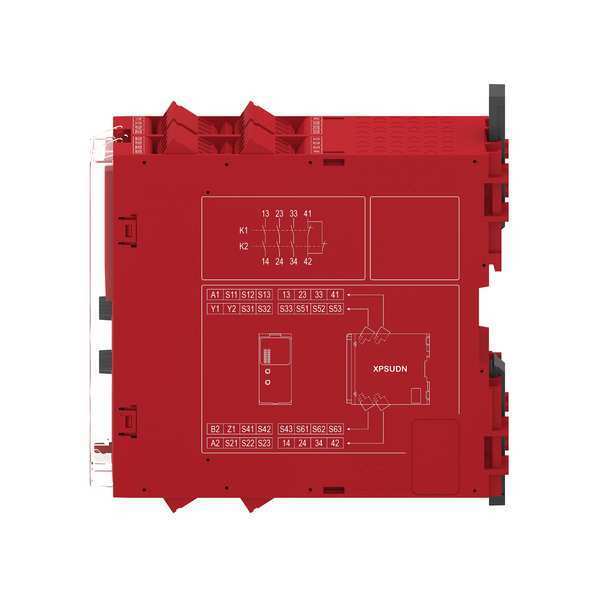

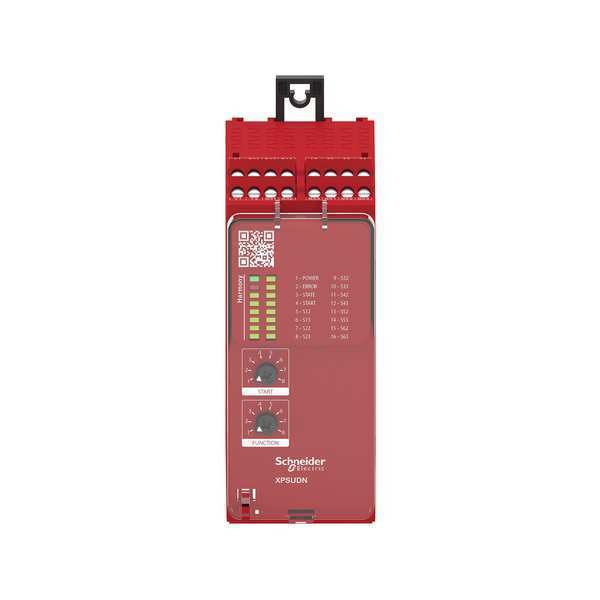

Home / Safety Relay Extension, 48 to 240 VAC/VDC

Safety Relay Extension, 48 to 240 VAC/VDC

SKU
Brand Schneider
Categories
Description Force, Delay Time None, Delay Type Fixed, Electrical Connection Screw Terminal, Terminal Block Removable, IP Rating IP20; IP40; IP54, Input Voltage 48 to 240V AC/DC, Mounting Style DIN Rail, Number of Inputs 2, Number of Pins 16, Output Switch Configuration (3) NO, Response Time 20 msec, Standards CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified, Contact Rating (AC) 8 A @ 250V
graingerSKU: 787DL3, mscSKU: , zoro_no: G703457825, mongo_id: 65bbe88b22d7a989a98fcc38

Web Price

$382.49 / each

Qty

Product Details

AC Contact Rating - Relay 8 A @ 250 V

Ambient Air Temperature For Storage -25-85ÃÂ°C

Application Emergency Stops

Associated Fuse Rating 10 A gG NO relay output circuit IEC 60947-1

Auxiliary Contact Composition 3 NO

Body Depth 4.72 in

Body Depth - Relay 4.72 in

Body Height 3.94 in

Body Height - Relay 3.93 in

Body Width 0.89 in

Body Width - Relay 0.88 in

Connections - Terminals removable screw terminal block, 0.2...2.5 mmÃÂ² solid or flexible || removable screw terminal block, 0.25...2.5 mmÃÂ² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mmÃÂ² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mmÃÂ² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mmÃÂ² flexible with ferrule with cable end, with bezel

Contact Rating (AC) 8 A @ 250V

Country of Origin (subject to change) Indonesia

DC Contact Rating - Relay Not Available

Delay Time None

Delay Time - Relay No Delay

Delay Type Fixed

Depth 120 mm

Electrical Circuit Type NC pair || PNP pair || antivalent pair || OSSD pair

Electrical Connection Screw Terminal, Terminal Block Removable

Electrical Connection - Relay Terminal Block Removable

Electrical Connection Type Screw

Environmental Protection Dust & Splash Resistant

For Use With XPS Series Relays, Emergency Stop, Limit Switch, Magnetic Switch

Frequency 50/60 Hz

Function Of Module emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE) || proximity sensor monitoring

Height 100 mm

Input Compatibility normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP

Input or Control Voltage 48 to 240 V AC/VDC

Input Power Consumption (Burden) 3 W

Input Protection Type internal, electronic

Input Voltage 48 to 240V AC/DC

Input/Output Type semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related

Ip Degree Of Protection IP20 terminals)EN/IEC 60529 || IP40 housing)EN/IEC 60529 || IP54 mounting area)EN/IEC 60529

IP Rating IP20; IP40; IP54

Item - Relay Safety Relay Extension Module

Local Signalling for power ON LED (green) || for error LED (red) || for start LED (yellow) || for safety status LED (yellow) || for safety input S12 LED (yellow) || for safety input S22 LED (yellow)

Maximum Line Resistance 500 Ohm

Maximum Operating Temperature 185 Degrees F

Maximum Response Time On Input Open 20 ms

Minimum Operating Temperature -13 Degrees F

Minimum Output Current 10 mA relay output

Minimum Output Voltage 15 V relay output

Mounting - Relay DIN Rail

Mounting Style DIN Rail

Mounting Support 35 mm symmetrical DIN rail

Number of Inputs 2

Number of Inputs - Relay 2

Number Of Outputs 3 on/off configurable pulsed output

Number of Pins 16

Number of Pins - Relay 16

Output Switch Configuration (3) NO

Output Switch Configuration - Relay (3) NO

Overall Depth 3.9 in

Overall Height - Relay 3.93 in

Package Quantity 1

Power Consumption 3 W

Power Consumption In Va 6.5 VA 240 V AC 50/60 Hz

Power Consumption In W 3.0 W 48 V DC

Product Certifications TUV || cULus

Product Or Component Type safety module

Relative Humidity 5-95 % non-condensing

Relay Mounting Style DIN-Rail

Response Time 20 msec

Response Time - Relay 20 msec

Safety Level can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061 || can reach SIL 3 IEC 61508

Safety Module Application monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring

Safety Module Name XPSUAF

Safety Reliability Data Dcavg Greater Than= 99% ISO 13849-1, HFT = 1 IEC 61508-1, HFT = 1 IEC 62061, MTTFd Greater Than 30 years ISO 13849-1, PFHd = 1.61E-09 IEC 61508-1, PFHd = 1.61E-09 IEC 62061, PFHd = 1.61E-09 ISO 13849-1, SFF Greater Than 99% IEC 61508-1, SFF Greater Than 99% IEC 62061, Type = B IEC 61508-1

Standards CCC, cULus Listed, EAC, IEC 60947-5-1, IEC 61508-1/2/3, IEC 62061, ISO 13849-1, TUV Certified

Synchronisation Time Between Inputs 0.5 s || 2 s || 4 s

Type Of Start automatic/manual/monitored

Use With - Relay All XPS Series Relays, E Stop, Limit Switch, Magnetic switch

Weight 7.04 oz

Width 22.5 mm

[Ie] Rated Operational Current 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact

[Ith] Conventional Free Air Thermal Current 8A

[Uimp] Rated Impulse Withstand Voltage 4 kV II EN/IEC 60947-1

[Ui] Rated Insulation Voltage 250 V 2)EN/IEC 60947-1

[Us] Rated Supply Voltage 48...240 V AC/DC - 10...10 %
