Home / Shrink Tubing, 0.187in ID, Black, 6in, PK20

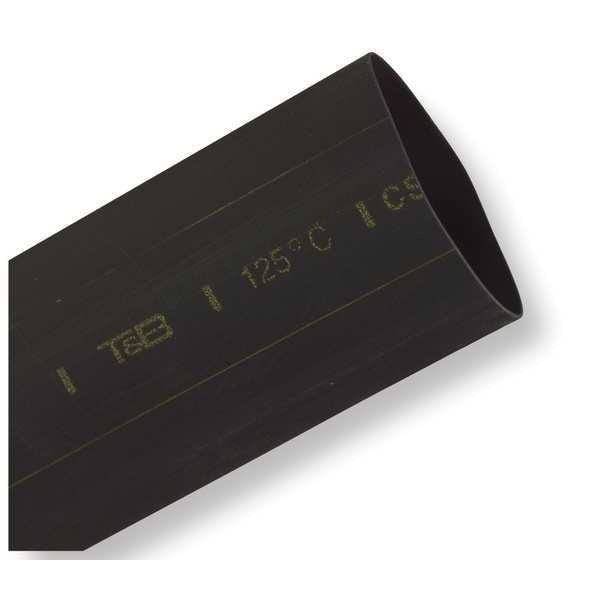

Shrink Tubing, 0.187in ID, Black, 6in, PK20

SKU
Brand Shrink-Kon
Categories
Description Heat Shrink Tubing, Thin Wall, Material Cross-Linked Polyolefin, Flame Retardant Yes, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 20 AWG to 18 AWG, I.D. Before Shrinking 0.19 in, I.D. After Shrinking 0.09 in, Wall Thickness After Shrinking 0.02 in, Length 6 in, Color Black, Temp. Range -55 Degrees to 135 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F, Dielectric Strength 600 V, Max. Temp. Rating 135 Degrees F, Min. Temp. Rating -55 Degrees F
graingerSKU: 3KH56, mscSKU: , zoro_no: G1484296, mongo_id: 65bbe7553aaddbd5a908b80c

Web Price

$14.36 / each

Qty

Product Details

Adhesive Lined No

Cable Range 22-14 AWG

Color Black

Country of Origin (subject to change) China

Dielectric Strength 600 V

Features Flame Retardant

Flame Retardant Yes

I.D. After Shrinking 0.09 in

I.D. Before Shrinking 0.19 in

Length 6 in

Length (Straight Wireway) 6 in

Material Cross-Linked Polyolefin

Max. Temp. Rating 135 Degrees F

Max. Voltage 600 V

Maximum Recovered I.D. (inches) 0.093

Min. Shrink Temp. 248 Degrees F

Min. Temp. Rating -55 Degrees F

Minimum Expanded I.D. (inches) 0.187

Nominal Recovered Wall (inches) 0.02

Package Quantity 20

Package Style Individual Pieces

Shrink Ratio 2:1

Shrink Temperature 120ÃÂ°C

Shrink Tubing Adhesive Lined No

Shrink Tubing I.D. Before Shrinking 0.187 in

Shrink Tubing Length 6 in

Shrink Tubing Material Cross-Linked Polyolefin

Shrink Tubing Type Heat Shrink Tubing

Shrink Tubing Usable Temp. Range -67 Degrees to 275 Degrees F

Shrink Tubing Wall Thickness After Shrinking 0.02 in

Shrink Tubing Wall Type Thin Wall

Standard Length (inches) 6

Standards AMS-3636 and 3637, CSA 22.2 No. 198.1, 125 Degrees C, DEF STAN 59-97, Issue 3, Type 2a, MIL-DTL-23053/5 Class 1 and 2, UL 224, 125 Degrees C

Style CPO Series Non-Lined, 6 in. lengths

Temp. Range -55 Degrees to 135 Degrees F

Temperature Range -55ÃÂ°C - 135ÃÂ°C

Tubing Wall Type Thin Wall

Use Shrink Tubing With Wire Size 20 to 18 AWG

Use With Wire Size 20 AWG to 18 AWG

Wall Thickness After Shrinking 0.02 in
