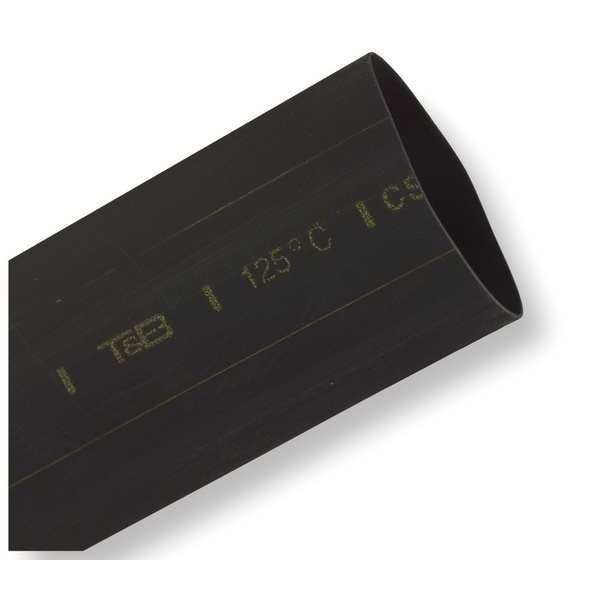

Home / Shrink Tubing, 0.25in ID, Black, 6in, PK20

Shrink Tubing, 0.25in ID, Black, 6in, PK20

SKU
Brand Shrink-Kon
Categories
Description Heat Shrink Tubing, Thin Wall, Material Cross-Linked Polyolefin, Flame Retardant Yes, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 16 AWG to 12 AWG, I.D. Before Shrinking 0.25 in, I.D. After Shrinking 0.13 in, Wall Thickness After Shrinking 0.03 in, Length 6 in, Color Black, Temp. Range -55 Degrees to 135 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F, Dielectric Strength 600 V, Max. Temp. Rating 135 Degrees F, Min. Temp. Rating -55 Degrees F
graingerSKU: 3KH57, mscSKU: , zoro_no: G3317203, mongo_id: 65bbe8479a749db822781f60

Web Price

$15.49 / each

Qty

Product Details

Adhesive Lined No

Cable Range 16 - 10 AWG

Color Black

Country of Origin (subject to change) China

Dielectric Strength 600 V

Features Flame Retardant

Flame Retardant Yes

I.D. After Shrinking 0.13 in

I.D. Before Shrinking 0.25 in

Length 6 in

Length (Straight Wireway) 6 in

Material Cross-Linked Polyolefin

Max. Temp. Rating 135 Degrees F

Max. Voltage 600 V

Maximum Recovered I.D. (inches) 0.125

Min. Shrink Temp. 248 Degrees F

Min. Temp. Rating -55 Degrees F

Minimum Expanded I.D. (inches) 0.25

Nominal Recovered Wall (inches) 0.025

Package Quantity 20

Package Style Individual Pieces

Shrink Ratio 2:1

Shrink Temperature 120ÃÂ°C

Shrink Tubing Adhesive Lined No

Shrink Tubing I.D. Before Shrinking 0.25 in

Shrink Tubing Length 6 in

Shrink Tubing Material Cross-Linked Polyolefin

Shrink Tubing Type Heat Shrink Tubing

Shrink Tubing Usable Temp. Range -67 Degrees to 275 Degrees F

Shrink Tubing Wall Thickness After Shrinking 0.025 in

Shrink Tubing Wall Type Thin Wall

Standard Length (inches) 6

Standards AMS-3636 and 3637, CSA 22.2 No. 198.1, 125 Degrees C, DEF STAN 59-97, Issue 3, Type 2a, MIL-DTL-23053/5 Class 1 and 2, UL 224, 125 Degrees C

Style CPO Series Non-Lined, 6 in. lengths

Temp. Range -55 Degrees to 135 Degrees F

Temperature Range -55ÃÂ°C - 135ÃÂ°C

Tubing Wall Type Thin Wall

Use Shrink Tubing With Wire Size 16 to 12 AWG

Use With Wire Size 16 AWG to 12 AWG

Wall Thickness After Shrinking 0.03 in
