Home / Shrink Tubing, 0.51in ID, Black, 6in, PK25

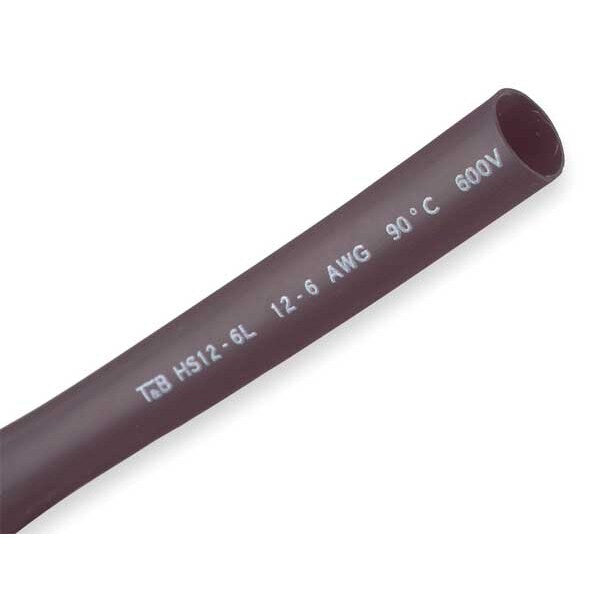

Shrink Tubing, 0.51in ID, Black, 6in, PK25

SKU
Brand Shrink-Kon
Categories
Description Heat Shrink Tubing, Heavy Wall, Material Cross-Linked Polyolefin with Adhesive, Flame Retardant No, Adhesive Lined Yes, Shrink Ratio 3:1, Use With Wire Size 8 AWG to 6 AWG, I.D. Before Shrinking 0.51 in, I.D. After Shrinking 0.16 in, Wall Thickness After Shrinking 0.09 in, Length 6 in, Shrink Tubing Properties High Heat Resistant, Color Black, Temp. Range -67 Degrees to 230 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F, Dielectric Strength 600 V
graingerSKU: 3KH64, mscSKU: , zoro_no: G0712783, mongo_id: 65bbe8979a749db82279ec6e

Web Price

$55.36 / each

Qty

Product Details

Adhesive Lined Yes

Color Black

Country of Origin (subject to change) United States

Dielectric Strength 600 V

Features Adhesive Lined

Flame Retardant No

I.D. After Shrinking 0.16 in

I.D. Before Shrinking 0.51 in

Inner diameter after heat-shrink 0.16 inch

Inner diameter before heat-shrink 0.51 inch

Length 6 in

Length (Straight Wireway) 6 in

Material Cross-Linked Polyolefin with Adhesive

Max. Temp. Rating 230 Degrees F

Max. Voltage 600 V

Min. Shrink Temp. 248 Degrees F

Min. Temp. Rating -67 Degrees F

Model Thick-walled

Nominal diameter inch 1/2 inch

Operation temperature -67-+230 ÃÂ°F

Package Quantity 25

Package Style Individual Pieces

Shrink Ratio 3:1

Shrink Tubing Adhesive Lined Yes

Shrink Tubing I.D. Before Shrinking 0.51 in

Shrink Tubing Length 6 in

Shrink Tubing Material Polyolefin

Shrink Tubing Properties High Heat Resistant

Shrink Tubing Type Heat Shrink Tubing

Shrink Tubing Usable Temp. Range -67 Degrees to 230 Degrees F

Shrink Tubing Wall Thickness After Shrinking 0.09 in

Shrink Tubing Wall Type Heavy Wall

Special Features Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced.

Standards CSA 22.2, UL 224, 120 Degrees C

Temp. Range -67 Degrees to 230 Degrees F

Tubing Wall Type Heavy Wall

Type Heavy-Wall Heat Shrinkable Tubing

UL approval Yes

Use Shrink Tubing With Wire Size 8 to 6 AWG

Use With Wire Size 8 AWG to 6 AWG

Voltage Rating 600 V

Wall Thickness After Shrinking 0.09 in
