Home / Shrink Tubing, 2.0in ID, Black, 4ft, PK2

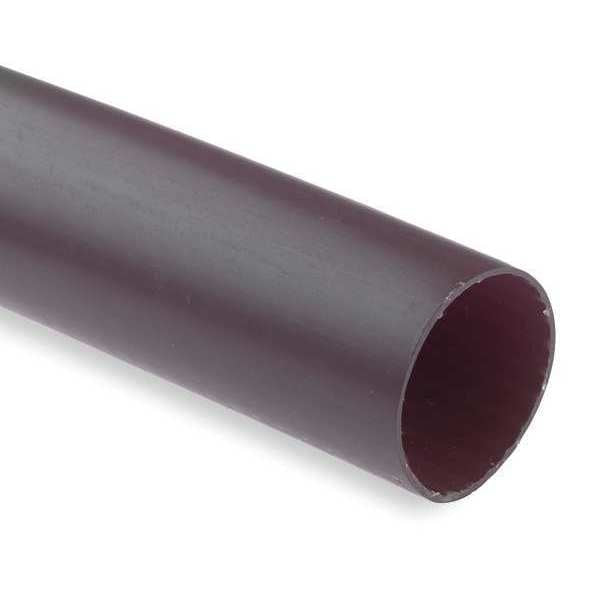

Shrink Tubing, 2.0in ID, Black, 4ft, PK2

SKU
Brand Shrink-Kon
Categories
Description Heat Shrink Tubing, Heavy Wall, Material Cross-Linked Polyolefin with Adhesive, Flame Retardant No, Adhesive Lined Yes, Shrink Ratio 3:1, Use With Wire Size 250 MCM to 600 MCM, I.D. Before Shrinking 2 in, I.D. After Shrinking 0.63 in, Wall Thickness After Shrinking 0.16 in, Length 4 ft, Shrink Tubing Properties High Heat Resistant, Color Black, Temp. Range -67 Degrees to 230 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F, Dielectric Strength 600 V
graingerSKU: 3KH71, mscSKU: , zoro_no: G2633793, mongo_id: 65bbe7a23aaddbd5a90a8483

Web Price

$105.36 / each

Qty

Product Details

Adhesive Lined Yes

Cable Range 250 - 500 MCM

Color Black

Country of Origin (subject to change) Canada

Dielectric Strength 600 V

Features Adhesive Lined

Flame Retardant No

I.D. After Shrinking 0.63 in

I.D. Before Shrinking 2 in

Inner diameter after heat-shrink 0.63 inch

Inner diameter before heat-shrink 2 inch

Length 4 ft

Length (Straight Wireway) 4 ft

Material Cross-Linked Polyolefin with Adhesive

Max. Temp. Rating 230 Degrees F

Max. Voltage 600 V

Maximum Recovered I.D. (inches) 0.63

Min. Shrink Temp. 248 Degrees F

Min. Temp. Rating -67 Degrees F

Minimum Expanded I.D. (inches) 2

Model Thick-walled

Nominal diameter inch 2 inch

Nominal Recovered Wall (inches) 0.16

Operation temperature -67-+230 ÃÂ°F

Package Quantity 2

Package Style Individual Pieces

Shrink Ratio 3:1

Shrink Temperature 120ÃÂ°C

Shrink Tubing Adhesive Lined Yes

Shrink Tubing I.D. Before Shrinking 2.0 in

Shrink Tubing Length 4 ft

Shrink Tubing Material Polyolefin

Shrink Tubing Properties High Heat Resistant

Shrink Tubing Type Heat Shrink Tubing

Shrink Tubing Usable Temp. Range -67 Degrees to 230 Degrees F

Shrink Tubing Wall Thickness After Shrinking 0.16 in

Shrink Tubing Wall Type Heavy Wall

Special Features Made of thermally stabilized cross-linked polyolefin, enabling a recovered wall thickenss greater than that of the cable jacket replaced.

Standard Length (inches) 48

Standards CSA 22.2, UL 224, 120 Degrees C

Style HS Series - Black

Temp. Range -67 Degrees to 230 Degrees F

Temperature Range -55ÃÂ°C - 110ÃÂ°C

Tubing Wall Type Heavy Wall

Type Heavy-Wall Heat Shrinkable Tubing

UL approval Yes

Use Shrink Tubing With Wire Size 250 to 600 kcmil

Use With Wire Size 250 MCM to 600 MCM

Voltage Rating 600V

Wall Thickness After Shrinking 0.16 in
