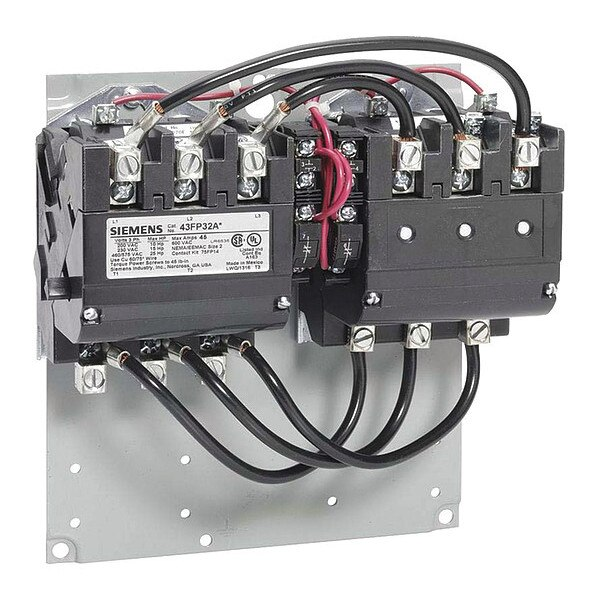

480VAC Reversing Magnetic Contactor 3P 115A NEMA 3-1/2

SKU
Brand Siemens
Categories
Description NEMA Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size 3-1/2, Coil Voltage 380-440/440-480V AC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive Not Rated, Reversing Capability Reversing, Overall Height 11.44 in, Overall Width 12.75 in, Auxiliary Contact Module Capacity 7, Terminal Connection Type Screw Terminals, Mounting Style Surface, Series 43, Number of Auxillary Contacts 4, Contactor Style NEMA
graingerSKU: 44N948, mscSKU: , zoro_no: G6371041, mongo_id: 65bbe92f22d7a989a993e731

Web Price

$5,528.74 / each

Product Details

Action Reversing

Auxiliary Contact Form 2NO/2NC

Auxiliary Contact Module Capacity 7

Coil Voltage 380-440/440-480V AC

Coil Volts 480V AC

Contactor Style NEMA

Country of Origin (subject to change) Mexico

Depth 5.19 in

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code Class 43

Frequency 50/60 Hz

Full Load Amps 115 A

Full Load Current - Inductive 115 A

Full Load Current - Resistive Not Rated

Height 11.44 in

Horsepower @ Three Phase - 208V AC 30 hp

Horsepower @ Three Phase - 240V AC 40 hp

Horsepower @ Three Phase - 480V AC 75 hp

Horsepower @ Three Phase - 600V AC 75 hp

HP @ 3 Phase - 208V 30 hp

HP @ 3 Phase - 240V 40 hp

HP @ 3 Phase - 480V 75 hp

HP @ 3 Phase - 575V 75 hp

Hz_ 60

Includes Auxiliary Contacts Yes

Maximum Operating Temperature 104 Degrees F

Maximum Voltage Rating 600V AC

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -4 Degrees F

Mounting Hole Diameter 0.28 in

Mounting Hole Distance - Height 10.75 in

Mounting Hole Distance - Width 10.25 in

Mounting Postion Vertical

Mounting Style Surface

NEMA Contactor Size 3-1/2

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size 3-1/2

Number of Auxillary Contacts 4

Number of Normally Closed Main Contacts 0

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 5.65 in

Overall Height 11.44 in

Overall Width 12.75 in

Package Quantity 1

Phase Three

Response Time 14 to 19 msec (OFF-Delay Time), 26 to 41 msec (ON-Delay Time)

Reversing Yes

Reversing Capability Reversing

Series 43

Standards eClass Ver. 12 Class. 27-37-13-92, eClass Ver. 6 Class. 27-37-92-01, eClass Ver. 7.1 Class. 27-37-92-01, eClass Ver. 8 Class. 27-37-10-03, eClass Ver. 9 Class. 27-37-92-01, eClass Ver. 9.1 Class. 27-37-92-01, ETIM ver. 7 Class. EC002498, ETIM Ver. 8 Class. EC002498, IDEA Ver. 4 Class 4762, REACH Art 33, UNSPSC Ver. 15 Class. 39-12-15-29

Terminal Connection Type Screw Terminals

Width 10.94 in
