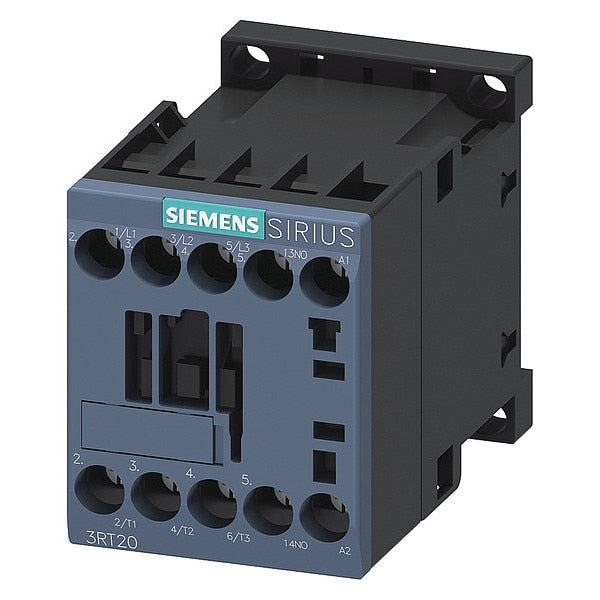

Contactor, 3 Poles, 110/120V AC, 18 A

SKU
Brand Siemens
Categories
Description NEMA Magnetic Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size 0, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 18 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 2.4 in, Overall Width 1.95 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style NEMA
graingerSKU: , mscSKU: , zoro_no: G1892819, mongo_id: 65bbe95522d7a989a994ccd2

Web Price

$224.99 / each

Qty

Product Details

Aux. Contact Configuration 1NO

Auxiliary Contact Form 1NO

Coil Voltage 110/120V AC

Coil Volts 110/120 V AC

Contactor Style NEMA

Country of Origin (subject to change) Germany

Depth 73 mm

Electrical Connection Screws

Embedded Surge Suppressor No

Frame / Series / Class / Code S00

Frame Size S00

Frequency 50/60 Hz

Full Load Amps-Inductive 18 A

Full Load Amps-Resistive 22 A

Full Load Current - Inductive 18 A

Full Load Current - Resistive 22 A

Height 58 mm

Horsepower @ Single Phase - 120V AC 1 hp

Horsepower @ Single Phase - 240V AC 2 hp

Horsepower @ Three Phase - 208V AC 3 hp

Horsepower @ Three Phase - 240V AC 3 hp

Horsepower @ Three Phase - 480V AC 10 hp

Horsepower @ Three Phase - 600V AC 10 hp

HP @ 1 Phase - 120V 1 hp

HP @ 1 Phase - 240V 2 hp

HP @ 3 Phase - 208V 3 hp

HP @ 3 Phase - 240V 3 hp

HP @ 3 Phase - 480V 5 hp

HP @ 3 Phase - 575V 5 hp

Hz_ 50/60

Includes Auxiliary Contacts Yes

IP Rating IP20

Max. Operating Watts 8 kW (at 400V, AC-3), 13 kW (at 400V, AC-1)

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 30,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.2 in

Mounting Hole Distance - Height 1.97 in

Mounting Hole Distance - Width 1.38 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Rating No Enclosure

NEMA Size 0

Number of Auxillary Contacts 1

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 3.2 in

Overall Height 2.4 in

Overall Width 1.95 in

Package Quantity 1

Phase Three

Response Time 10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)

Reversing Capability Non-Reversing

Series SIRIUS 3RT20

Standards REACH Art 33, WEEE (2012/19/EU)

Terminal Connection Type Screw Terminals

Watts Loss 1W (Current Dependent); 5.9W (Current Independent)

Width 45 mm
