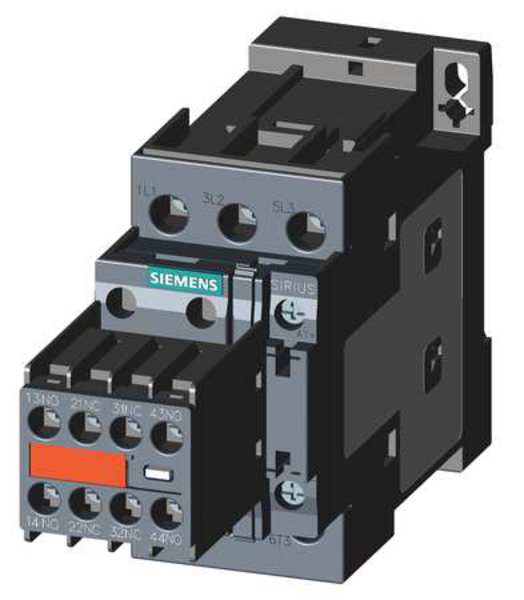

IEC Magnetic Contactor, 3 Poles, 110/120 V AC, 38 A, Reversing: No

SKU
Brand Siemens
Categories
Description IEC Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110/120V AC, Number of Poles 3, Full Load Current - Inductive 38 A, Full Load Current - Resistive 50 A, Reversing Capability Non-Reversing, Overall Height 6 in, Overall Width 2.1 in, Terminal Connection Type Screw Terminals, Frame Size S0, Mounting Style DIN Rail, Surface, Series SIRIUS 3RT Safety Contactors, Number of Auxillary Contacts 4, Contactor Style IEC
graingerSKU: 13Y605, mscSKU: , zoro_no: G4320854, mongo_id: 65bbee3c526e052139afbd38

Web Price

$317.49 / each

Product Details

Action Non-Reversing

Aux. Contact Configuration 2NO/2NC

Auxiliary Contact Form 2NO/2NC

Coil Voltage 110/120V AC

Coil Volts 110/120 V AC

Contactor Style IEC

Country of Origin (subject to change) Germany

Depth 3.82 in

Electrical Connection Screws

Embedded Surge Suppressor No

Enclosure NEMA Rating No Enclosure

Frame / Series / Class / Code S0

Frame Size S0

Frequency 50/60 Hz

Full Load Amps-Inductive 38 A

Full Load Amps-Resistive 50 A

Full Load Current - Inductive 38 A

Full Load Current - Resistive 50 A

Height 1.77 in

Horsepower @ Single Phase - 120V AC 3 hp

Horsepower @ Single Phase - 240V AC 5 hp

Horsepower @ Three Phase - 208V AC 10 hp

Horsepower @ Three Phase - 240V AC 10 hp

Horsepower @ Three Phase - 480V AC 25 hp

Horsepower @ Three Phase - 600V AC 25 hp

HP @ 1 Phase - 120V 3 hp

HP @ 1 Phase - 230V 5

HP @ 1 Phase - 240V 5 hp

HP @ 3 Phase - 208V 10 hp

HP @ 3 Phase - 240V 10 hp

HP @ 3 Phase - 480V 25 hp

HP @ 3 Phase - 575V 25 hp

Hz_ 50/60

Includes Permanent Mounted Aux Contact

Includes Auxiliary Contacts Yes

IP Rating IP20

Max. Operating Watts 19 kW (at 400V, AC-3), 28 kW (at 400V, AC-1)

Maximum Operating Temperature 140 Degrees F

Maximum Voltage Rating 690V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -13 Degrees F

Mounting Hole Diameter 0.19 in

Mounting Hole Distance - Height 2.36 in

Mounting Hole Distance - Width 1.38 in

Mounting Postion Vertical

Mounting Style DIN Rail, Surface

NEMA Enclosure Material Not Applicable

NEMA Enclosure Rating No Enclosure

NEMA Size Not Applicable

Number of Auxillary Contacts 4

Number of Normally Open Main Contacts 3

Number of Poles 3

Overall Depth 3.8 in

Overall Height 6 in

Overall Width 2.1 in

Package Quantity 1

Phase Three

Response Time 10 to 17 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 8 to 40 msec (AC Operation Closing Delay)

Reversing No

Reversing Capability Non-Reversing

Series SIRIUS 3RT Safety Contactors

Standards REACH Art 33, WEEE (2012/19/EU)

Terminal Connection Type Screw Terminals

Watts Loss 3.2W (Current Dependent); 10.5W (Current Independent)

Width 1.77 in
